6.6.3 Write the Boolean Expression Now we write the Boolean expression based on the quasi-logic statement. To create a product of 1 for the active control code 0 1, we need to form the expression C D; to create a product of 1 for the other active control code 1 0, we need to form the expres- sion C.D. Based on this, the complete Boolean expression for the security system is Y- A (C.D)+(A +B) (C. D) (6.29) The alarm will sound (Y = 1) if the expression A . (C , D) is 1 or if the expres- sion (A + B) . (C , D) is 1; otherwise, the alarm will not sound (Y = 0). The first 210 CHAPTER 6 Digital Circuits expression will be 1 if and only if A is 1 and C is 0 and D is 1; the second expression will be 1 if and only if A or B is 1 and C is 1 and D is 0. For this particular problem, we can simplify Equation 6.29 by looking at a truth table for the C and D terms for the different control code combinations Note that (C , D)-D and (C·D)-C for the given control code combinations. If we disallow the state C D- 1 (see Question 6.21), Equation 6.29 can be simplified as Y (A D)(A+B) C (6.30)
Homework Answers
Add Answer to:

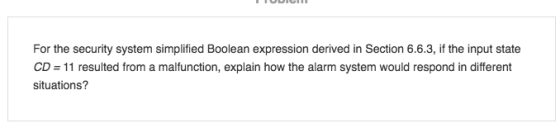

For the security system simplified Boolean expression derived in Section 6.6.3, if the input stat...
