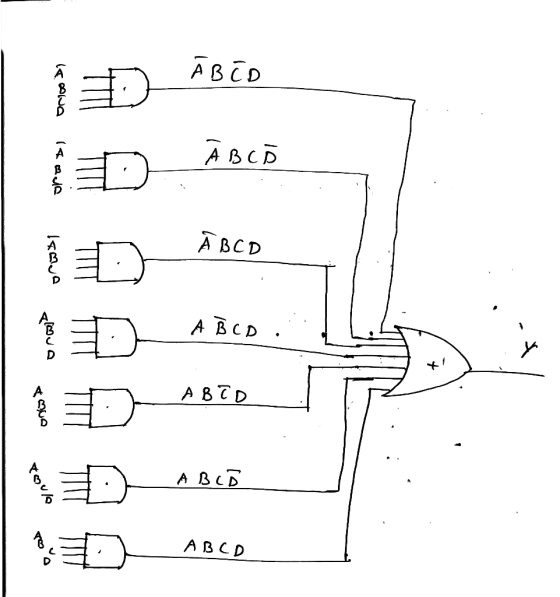

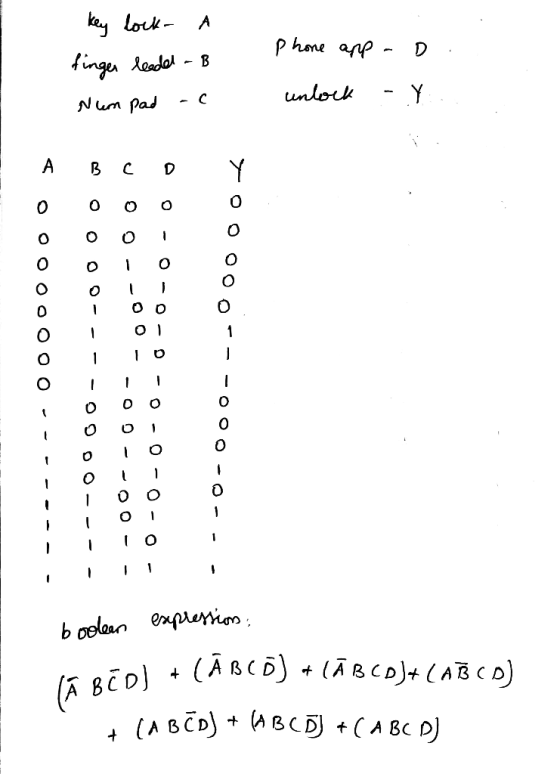

5. a. A house’s security system has a keylock, a fingerprint reader, a numpad and a phone app. The system unlocks the house if it detects the owner’s fingerprint on the reader, and the code is dialed on the numpad or is given via the phone app or both, regardless if the key is present or not. Alternatively, if only the key is present, the system unlocks if it receives the code by both the pad and phone app. Give the truth table for the problem, the Boolean expression that describes the truth table and the digital circuit for the Boolean expression.

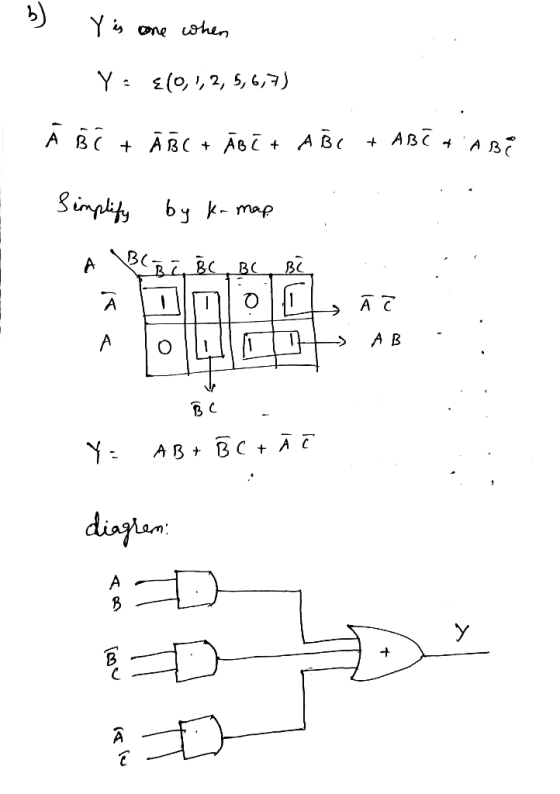

b. Given the truth table below, find the Boolean expression, simplify it and then draw the digital circuit.
|
A |
B |
C |
Y |
|
0 |
0 |
0 |
1 |
|
0 |
0 |
1 |
1 |
|
0 |
1 |
0 |
1 |
|
0 |
1 |
1 |
0 |
|
1 |
0 |
0 |
0 |
|
1 |
0 |
1 |
1 |
|
1 |
1 |
0 |
1 |
|
1 |
1 |
1 |
1 |
