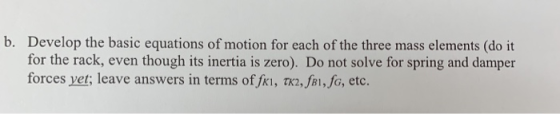

Develop the basic equations of motion for each of the three mass elements (do it for the rack, even though its inertia is zero). Do not solve for spring and damper b. forces yet: leave answers in terms of jki, ma.,jai,fo, etc.

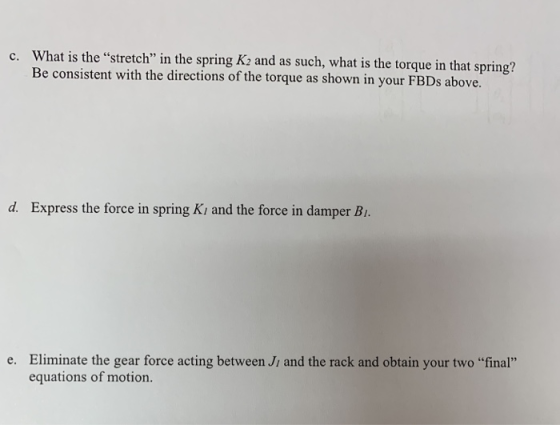

What is the "stretch" in the spring K2 and as such, what is the torque in that spring? Be consistent with the directions of the torque as shown in your FBDs above. c. d. Express the force in spring Ki and the force in damper Bi. Eliminate the gear force acting between Ji and the rack and obtain your two "final" equations of motion. e.

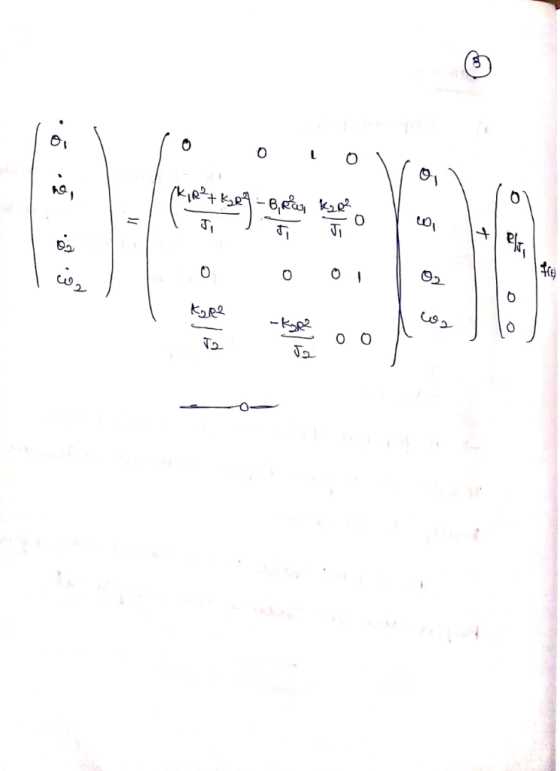

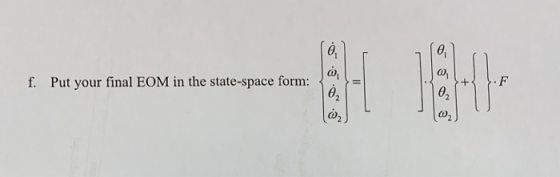

f. Put your final EOM in the state-space form: 02

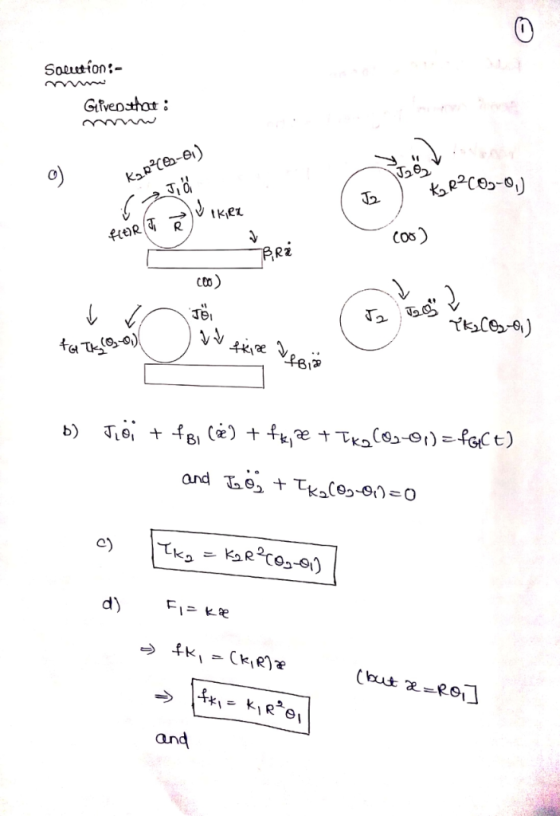

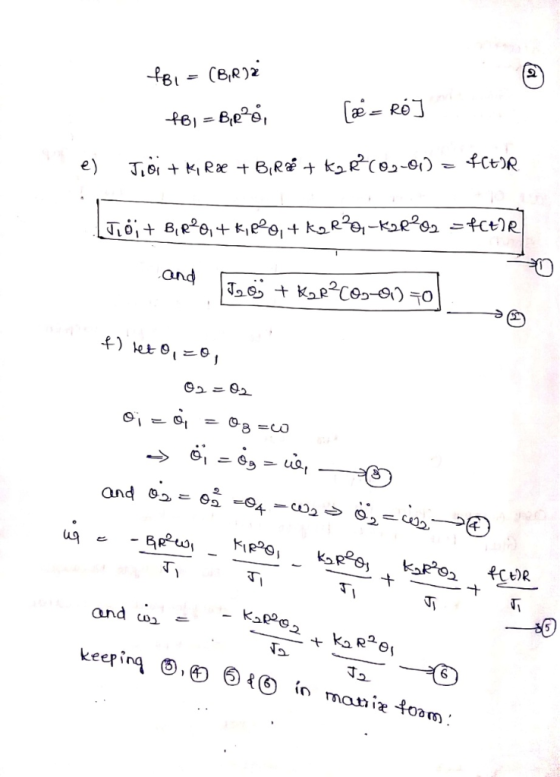

Homework Answers
Add Answer to:

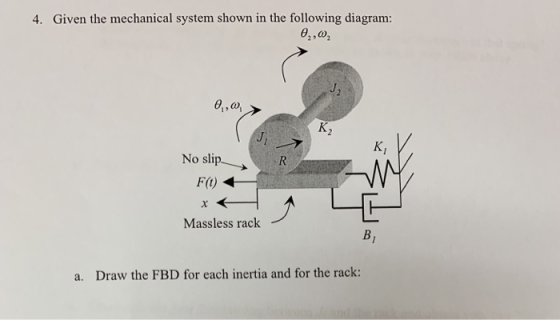

4. Given the mechanical system shown in the following diagram: 6,,02 J, K, No slip-_ F(t) Massles...
