Homework Answers
Please
let me know if I can help more on this problem
Add Answer to:

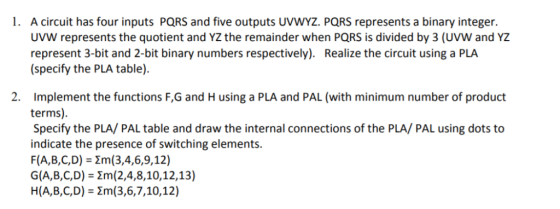

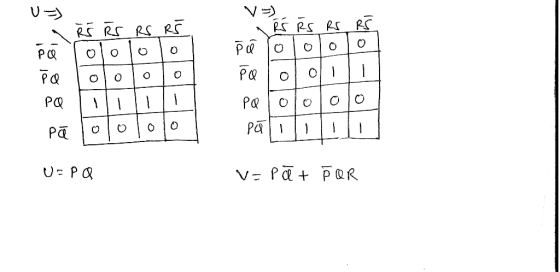

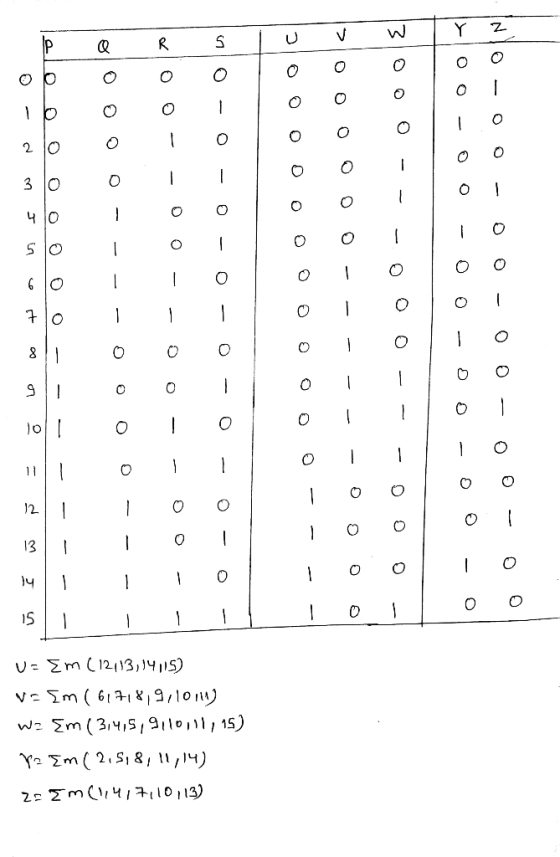

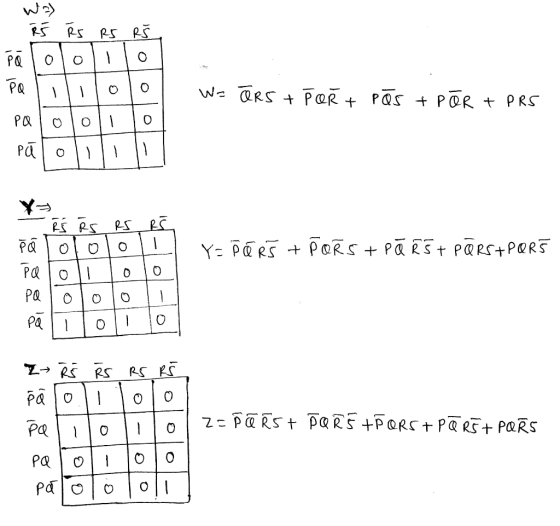

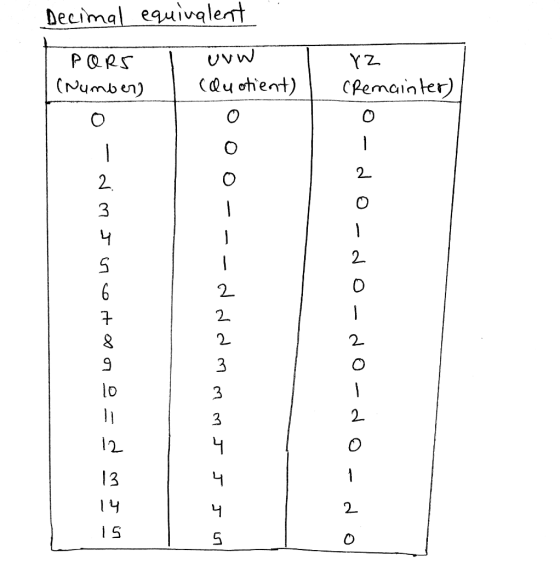

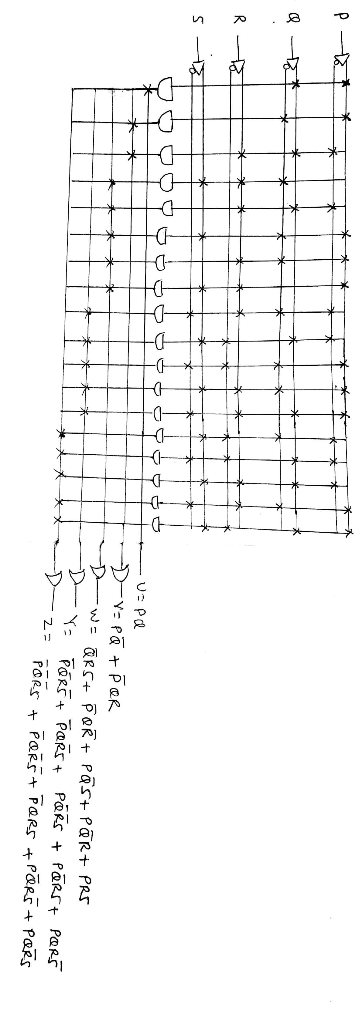

1. A circuit has four inputs PORS and five outputs UVWYZ. PQRS represents a binary integer. UVW r...
A sequential circuit has one input (X), and two outputs (S and V). X represents a...
A sequential circuit has one input (X), and two outputs (S and V). X represents a 4-bit binary number N, which is input least significant bit first. S represents a 4-bit binary number equal to N+2, which is output least significant bit first. At the time the fourth input occurs, V=1 if N+2 is too large to be represented by 4 bits; otherwise V=0. The value of S should be the proper value, not a don’t care, in both cases....
roblem 4. (25 pts)A circuit with four inputs, (A, B, C, D), and four outputs (F,...
roblem 4. (25 pts)A circuit with four inputs, (A, B, C, D), and four outputs (F, G, H, I) is described by the table below. For this circuit Para este circuito a. (10 pts) Express G as a sum of minterms b. (10 pts) Express F as a product of maxterms c. (5 pts) Realize G using just NAND's, and F using only NOR's. BCD/IF G H I 0 1 0 1 1 0 0 1 1 1 1 01...
Problem 4. (25 pts)A circuit with four inputs, (A, B, C, D), and four outputs (F,...
Problem 4. (25 pts)A circuit with four inputs, (A, B, C, D), and four outputs (F, G, H, I) is described by the table below. For this circuit Para este circuito a. (10 pts) Express G as a sum of minterms (10 pts) Express F as a product of maxterms c. (5 pts) Realize G using just NAND's, and F using only NOR's. A B C DF G HI 0 1 0 1 1 0 0 1 0 1 1...
Design a circuit that has a 3 bit binary input (representing 0 through 7) and outputs...
Design a circuit that has a 3 bit binary input (representing 0 through 7) and outputs a 1 if the input is a prime number. A prime number (or prime) is a natural number greater than 1 that has no positive divisors other than 1 and itself. a) Fill out a truth table that represents the logic equation for this circuit: Y = F(A,B,C). b) Using a Karnaugh map simplify the logic equation.
a. Design and implement a combinational circuit with four inputs w,x, y and z and four outputs A, B,C and D using CMOS...
a. Design and implement a combinational circuit with four inputs w,x, y and z and four outputs A, B,C and D using CMOS transistors. When the binary input is 0, 1, 2,3, 4, 5, 6 or 7 the binary output is three greater than the input. When the binary input is 8,10,11,12,13,14 or 15 the binary output is five less than the input. b. Draw the mask layout with Ln Lp 0.6 um, Wn- 4.8 um and Wp- 9.6 um...
a. Design and implement a combinational circuit with four inputs w,x, y and z and four outputs A, B,C and D using CMOS...
a. Design and implement a combinational circuit with four inputs w,x, y and z and four outputs A, B,C and D using CMOS transistors. When the binary input is 0, 1, 2,3, 4, 5, 6 or 7 the binary output is three greater than the input. When the binary input is 8,10,11,12,13,14 or 15 the binary output is five less than the input. b. Draw the mask layout with Ln Lp 0.6 um, Wn- 4.8 um and Wp- 9.6 um...
Design and implement a combinational circuit with four inputs w,x, y and z and four outputs A, B ,C and D using CMOS transistors. When the binary input is 0, 1, 2,3,4,5,6 or 7 the binary output is fi...
Design and implement a combinational circuit with four inputs w,x, y and z and four outputs A, B ,C and D using CMOS transistors. When the binary input is 0, 1, 2,3,4,5,6 or 7 the binary output is five greater than the input. When the binary input is 8,,10,11,12,13,14 or 15 the binary output is seven less than the input. for question (a) find the troth table for the inputs (ABCD) then implement using K-map to find the equations to...
A comparator circuit has two 1-bit inputs A and B and three 1-bit outputs G (greater),...
A comparator circuit has two 1-bit inputs A and B and three 1-bit outputs G (greater), E (equal), and L (less than). That is, G is 1 if A > B (0 otherwise), E is 1 if A == B (0 otherwise), and L is 1 if A < B (0 otherwise). a. Draw the truth table for a 1-bit comparator (the table has 2 inputs and 3 outputs). b. Implement G, E, and L circuits using only...
6. A sequential network has an input A and outputs X and Y. XY represents a 2-bit binary number equal to the number of 0's that have been received as inputs. The network resets when the total num...
6. A sequential network has an input A and outputs X and Y. XY represents a 2-bit binary number equal to the number of 0's that have been received as inputs. The network resets when the total number of O's received is 3 or the total number of 1's received is 3 Draw a Moore state graph for the network using JK FFs. Use minimum possible number of states.
6. A sequential network has an input A and outputs X...
Problem 1: consider the following circuit with 4 inputs A, B, c, D, and 3 outputs...
Problem 1:

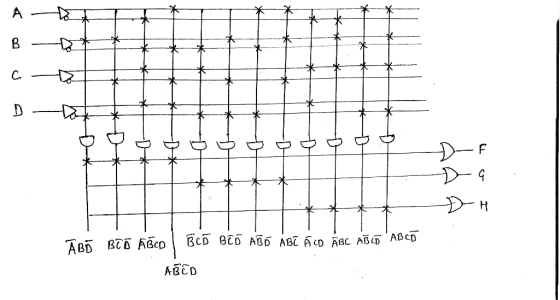

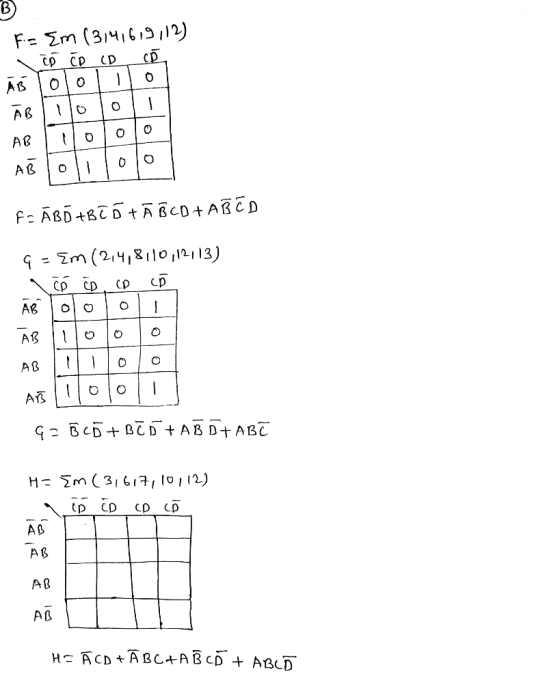

consider the following circuit with 4 inputs A, B, c, D, and 3 outputs F, G, H. Each input/output is connected to an input/output port. 3-input OR gate Figure 1 a) Determine the Boolean algebra equations relating each input to each output of the circuit. b) Create the truth tables corresponding to the equations obtained above. There should be one truth table per equation c) Produce the Karnaugh maps corresponding to the truth tables d) Determine simplified Boolean...
roblem 4. (25 pts)A circuit with four inputs, (A, B, C, D), and four outputs (F, G, H, I) is described by the table below. For this circuit Para este circuito a. (10 pts) Express G as a sum of minterms b. (10 pts) Express F as a product of maxterms c. (5 pts) Realize G using just NAND's, and F using only NOR's. BCD/IF G H I 0 1 0 1 1 0 0 1 1 1 1 01...
Problem 4. (25 pts)A circuit with four inputs, (A, B, C, D), and four outputs (F, G, H, I) is described by the table below. For this circuit Para este circuito a. (10 pts) Express G as a sum of minterms (10 pts) Express F as a product of maxterms c. (5 pts) Realize G using just NAND's, and F using only NOR's. A B C DF G HI 0 1 0 1 1 0 0 1 0 1 1...
a. Design and implement a combinational circuit with four inputs w,x, y and z and four outputs A, B,C and D using CMOS transistors. When the binary input is 0, 1, 2,3, 4, 5, 6 or 7 the binary output is three greater than the input. When the binary input is 8,10,11,12,13,14 or 15 the binary output is five less than the input. b. Draw the mask layout with Ln Lp 0.6 um, Wn- 4.8 um and Wp- 9.6 um...
a. Design and implement a combinational circuit with four inputs w,x, y and z and four outputs A, B,C and D using CMOS transistors. When the binary input is 0, 1, 2,3, 4, 5, 6 or 7 the binary output is three greater than the input. When the binary input is 8,10,11,12,13,14 or 15 the binary output is five less than the input. b. Draw the mask layout with Ln Lp 0.6 um, Wn- 4.8 um and Wp- 9.6 um...
6. A sequential network has an input A and outputs X and Y. XY represents a 2-bit binary number equal to the number of 0's that have been received as inputs. The network resets when the total number of O's received is 3 or the total number of 1's received is 3 Draw a Moore state graph for the network using JK FFs. Use minimum possible number of states.
6. A sequential network has an input A and outputs X...
Problem 1:
consider the following circuit with 4 inputs A, B, c, D, and 3 outputs F, G, H. Each input/output is connected to an input/output port. 3-input OR gate Figure 1 a) Determine the Boolean algebra equations relating each input to each output of the circuit. b) Create the truth tables corresponding to the equations obtained above. There should be one truth table per equation c) Produce the Karnaugh maps corresponding to the truth tables d) Determine simplified Boolean...
