Question

A comparator circuit has two 1-bit inputs A and B and three 1-bit outputs G (greater),...

A comparator circuit has two 1-bit inputs A and B and three 1-bit outputs G (greater), E (equal), and L (less than). That is, G is 1 if A > B (0 otherwise), E is 1 if A == B (0 otherwise), and L is 1 if A < B (0 otherwise).

a. Draw the truth table for a 1-bit comparator (the table has 2 inputs and 3 outputs).

b. Implement G, E, and L circuits using only NAND and NOT gates.

c.Using the 1-bit comparator as a building block (that is, drawing it as a 2-input/3-output box), construct a four-bit equality checker, such that output EQUAL is 1 if A[3:0] == B[3:0], 0 otherwise.
0 0
Add a comment Improve this question Transcribed image text
Answer #1

a) The truth table for a 1-bit comparator:

A B G E L
0 0 0 1 0
0 1 0 0 1
1 0 1 0 0
1 1 0 1 0

(b) Implementation of G, E, L circuits using NAND and NOT gates:

Using above truth table and K-Map, G=AB' , E=A XNOR B, L=A'B

(c) Construction of 4 bit equality checker using 1 bit comparator as building block:

Suppose, two 4 bit binary number A=A3A2A1A0 and B=B3B2B1B0 and E is equlity output of A and B.

A=B only if E=E3E2E1E0 where Ei is equality output of Ai and Bi .

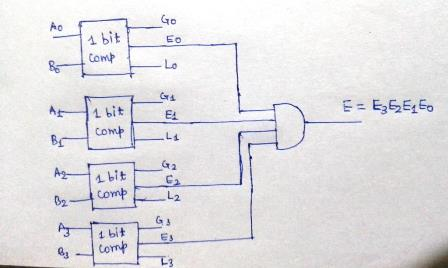

Here is the implementation of 4 bit equality checker:

Add a comment
