Following the circuit specification below: Comparator: A 3-bit comparator has six inputs A= A2A1A0 and B=...

Following the circuit specification below:

Comparator: A 3-bit comparator has six inputs A= A₂A₁A₀ and B= B₂B₁B₀, and one output: L. The comparator is a ‘less than’, meaning the output is ‘1’ is A<B.

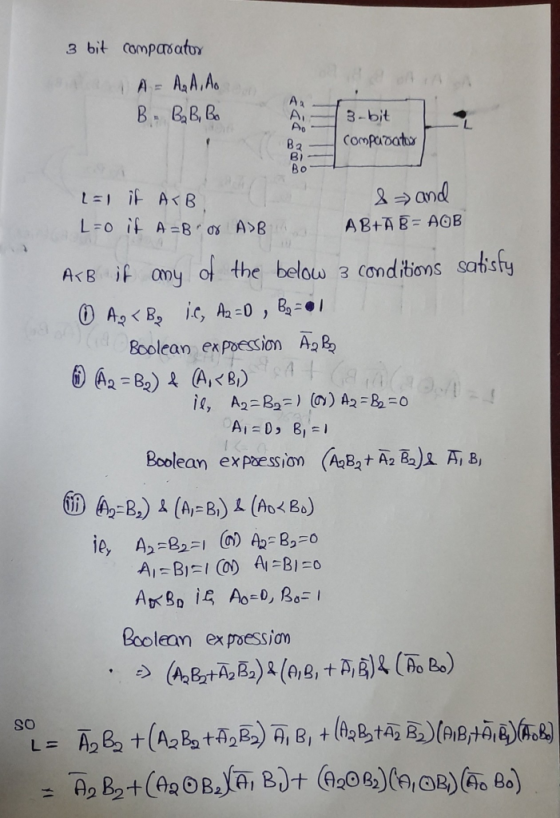

Using your method of choice, find the Boolean expression for the output of the comparator;

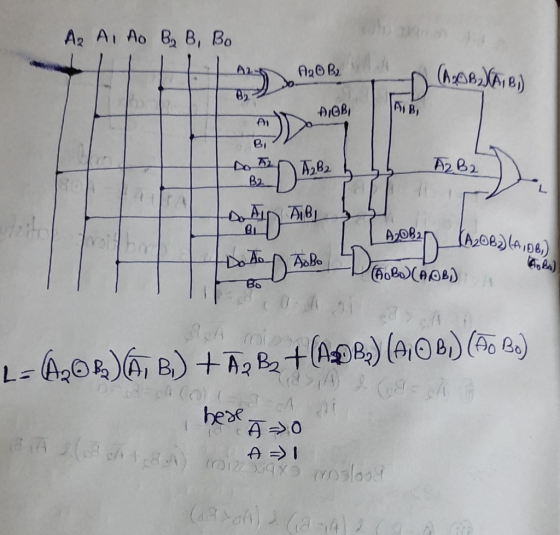

Draw the logic circuit of the 3-bit comparator

engineering Electrical-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

Add a comment

Answer 2
