Comparator: A 3-bit comparator has six inputs A= A2A1A0 and B= B2B1B0, and one output: L. The comparator is a ‘less than’, meaning the output is ‘1’ is A<B.
Available gates (no other gates can be used than the 5 listed below):
Following the circuit specification below: Comparator: A 3-bit comparator has six inputs A= A2A1A0 and B=...

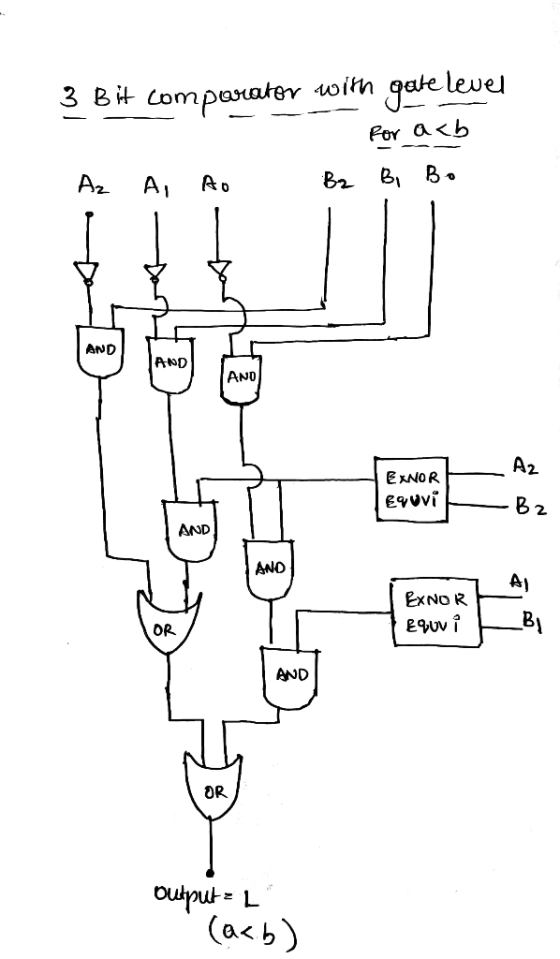

Following the circuit specification below: Comparator: A 3-bit comparator has six inputs A= A2A1A0 and B= B2B1B0, and one output: L. The comparator is a ‘less than’, meaning the output is ‘1’ is A<B. Using your method of choice, find the Boolean expression for the output of the comparator; Draw the logic circuit of the 3-bit comparator
A comparator circuit has two 1-bit inputs A and B and three 1-bit outputs G (greater), E (equal), and L (less than). That is, G is 1 if A > B (0 otherwise), E is 1 if A == B (0 otherwise), and L is 1 if A < B (0 otherwise). a. Draw the truth table for a 1-bit comparator (the table has 2 inputs and 3 outputs). b. Implement G, E, and L circuits using only...
A comparator circuit has two 2-bit inputs, A(0,1) and B(0,1) [4 total inputs], and three 1-bit outputs, G (A greater than B), E (equal), and L (A less than B) (hint: Compare two bits against two bits, for example, if inputs are 0010, then B is greater than A). Write the logic equation for each output, and draw the logic diagram for each output using 8 to 1 Multiplexers (3).
Assume that a and b are 3-bit inputs (let a be a2a1a0 and b be b2b1b0). (a) Determine the Boolean expression (in terms of a2,a1,a0, b2,b1 and b0) for the relational operation a>b (b) Assume that b is a constant and that b = "101". Determine the Boolean expression again. (c) Assume that a is a constant and that a = "101". Determine the Boolean expression again.
3.4.1 Build and simulate the comparator circuit shown in Figure 3, in Multisim. The inputs A3, A2, A1, 40 act as the first 4-bit binary number, and B3, B2, B1, BO act as the second 4-bit binary number. Run your circuit for different setting of the inputs as in Table 3 and observe how the output Xchecks if the numbers are equal or not. Note: connect the eight inputs of this circuit to an 8-input DIP switch as shown in...
Verify that your design can be represented by the circuit below. 120 Full-Adder circuit Many of the logic gates you require may not exist in standard TTL/CMOS 74 series family of logic. For example in future designs you may require a 50 input OR gate. The 74 series does not have a 50 input OR gate. For your 1 bit adder you will have the following devices: 1 quad 2 IP NAND, 1 TRIPLE 3 IP NAND, 7400 7410 7404...
Design a combinational circuit with three inputs, x , y, and z, and three outputs, A, B , and C . When the binary input is 0, 1, 2, or 3, the binary output is one greater than the input. When the binary input is 4, 5, 6, or 7, the binary output is two less than the input. 1) Truth table 2) Logic circuit 3) Boolean function of A using minterms ( use Boolean algebra) 4) Boolean function of...
2 A comparator circuit has two 2-bit inputs, A(0,1) and B(0,1) [4 total inputs], and three 1-bit outputs, G (A greater than B), E (equal), and L (A less than B) (hint: Compare two bits against two bits, for example if inputs are 0010, then B is greater than A). Write the logic equation for each output, and draw the logic diagram for each output using 8 to 1 Multiplexers (3). Inputs Outputs F1 F2 F3 A1 AO B1 BOAB...
3) (30 points) Given three 8-bit unsigned inputs A, B, C, design a circuit that outputs 1 if the smallest absolute distance between any pair of values is less than 15 or greater than 50. Note: your circuit must work for any 8-bit unsigned numbers given in A, B, C. 18 18 18 - Assume that you have the following Datapath components available (unsigned only) - decoders, encoders, muxes, parallel load registers, adders, A B C subtractors, magnitude comparators, array...
Problem 4 Design the static complementary CMOS implementation of a 2-bit comparator circuit, where we have two inputs A and B (each is 2-bit wide) and the output 0 if A > B and output 1 if A B. Design the circuit for minimum delay (assuming a stage effort of 4) and driving a load of 10 fF. As part of the design you need to determine the width of all transistors You can use the following transistor parameters for...
