Question

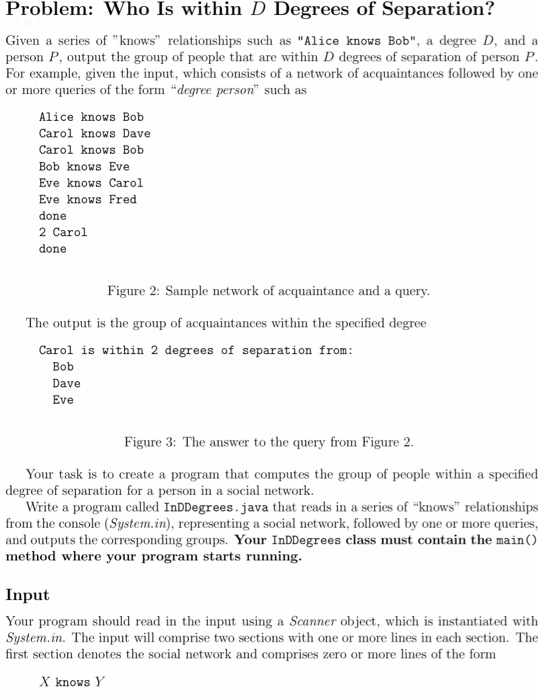

Problem: Who Is within D Degrees of Separation? Given a series of "knows" relationships such as "Alice knows Bob", a degree D, and a person P, output the group of people that are within D degrees of separation of person P For example, given the input, which consists of a network of acquaintances followed by one or more queries of the form "degree person" such as Alice knows Bob Carol knows Dave Carol knows Bob Bob knows Eve Eve knows Carol Eve knows Fred done 2 Carol done Figure 2: Sample network of acquaintance and a query. The output is the group of acquaintances within the specified degree Carol is within 2 degrees of separation from: Bob Dave Eve Figure 3: The answer to theq Your task is to create a program that computes the group of people within a specified degree of separation for a person in a social network. Write a program called InDDegrees.java that reads in a series of "knows" relationships from the console (System.in), representing a social network, followed by one or more queries, and outputs the corresponding groups. Your InDDegrees class must contain the mainO method where your program starts running Input Your program should read in the input using a Scanner object, which is instantiated with System.in. The input will comprise two sections with one or more lines in each section. The first section denotes the social network and comprises zero or more lines of the form X knows Y and V are single-word names of people. Eg, "Alice knows Bob". The section is termmated by a single word "done" The second section denotes the queries and comprises zero or more lines of the form D X where D is the degree and X is the person for which the program should compute the group of people in the social network that are within D degrees of separation from X. E.g., "2 Carol". The section is terminated by a single word "done" Hint: All you need to use are the nextO and nextInt O methods of the Scanner object. Semantics As mentioned previously, the "knows" relationship is not bidirectional. Le., Alice knows Bob does not imply that Bob knows Alice. All queries will be valid, meaning that the person being queried is guaranteed to be in the network. Le., for query D X, X wll be in the social network. The maximum value for D is 10000. The maximum size of the social network will be 100000 people. Output Your program should output to System.out. Each line should be terminated by a new line character. For each query D X, the output should begin with the line: X is within D degrees of separation from followed by the people who are within D degrees of X. The people should be listed in sorted (alphabetical) order, one person per line, indented two (2) spaces. See Figure 3 for an example. Note: X should not be part of the list Example Sample Input Sample Output Alice knows Bob Carol knows Dave Carol knows Bob Bob knows Eve Eve knows Carol Eve knows Fred done 2 Carol 3 Fred 3 Eve done Carol is within 2 degrees of separation from Bob Dave Eve Fred is within 3 degrees of separation from Eve is vithin 3 degrees of separation from Bob Carol Dave Fred Background: Six Degrees of Separation There is a famous idea by Frigyes Karinthy (1929) that states that any two people in the world are connected by at most six steps, where each step is a friend or friend of a friend That is for any two people X and Y, X knows A who knows B who knows C who knows Y. This idea is also prevalent in social networks. A common problem in social networks is given a social network, a person P, and a degree D, who are the people within degree D of P. For example, for D1, this group (S) would consist of all the people that P knows. For D 2, this group (S2) would include S and all the people that people in Si know. Note that just because person X knows Y, does not mean that Y knows X. For example, I may know the Prime Minister of Canada, but it is unlikely that the Prime Minister of Canada knows me

Answer 1

// Java Code

import java.util.ArrayList;
import java.util.Collections;
import java.util.HashMap;
import java.util.LinkedList;
import java.util.Map;
import java.util.Queue;
import java.util.Scanner;

public class InDDegrees {

/**
* The below functions returns a list of people who are within
* D degrees of separation from 'Person'
* The Algorithm used is BFS ('Breadth First Search')
*/

public static ArrayList<String> findFriends(Map<String, ArrayList<String>> graph, int D, String Person){
ArrayList<String> friends = new ArrayList<String>();

// Queue for running BFS
Queue<String> curList = new LinkedList<String>();
curList.add(Person);

// visitedPersons contain the list of all the persons visited so far in BFS
// the value for 'key' is the degree of separation from 'Person'
Map<String,Integer> visitedPersons = new HashMap<String,Integer>();
visitedPersons.put(Person,0);

while(!curList.isEmpty()) {
String curPerson = curList.poll();
Integer degree = visitedPersons.get(curPerson);
if(degree >= D) {
break;
}

//find the persons who are known to 'curPerson'
if(graph.get(curPerson) != null) {
ArrayList<String> knownToCurPerson = graph.get(curPerson);

for(String p : knownToCurPerson) {
// if 'p' doesn't exist in visited, add 'p' to visited and queue
if(!visitedPersons.containsKey(p)) {
visitedPersons.put(p,degree+1);
curList.add(p);
}
}

}

}
// put all the keys for which value >=1 in 'friends'
for(String p : visitedPersons.keySet()) {
if(visitedPersons.get(p) > 0)
friends.add(p);
}

return friends;

}


public static void main(String[] args) {
// TODO Auto-generated method stub
Scanner in = new Scanner(System.in);
ArrayList<String> relationships = new ArrayList<String>();
String s = in.nextLine();
while(!s.equals("done")) {
relationships.add(s);
s = in.nextLine();
}
ArrayList<String> queries = new ArrayList<String>();
s = in.nextLine();
while(!s.equals("done")) {
queries.add(s);
s = in.nextLine();
}

// now build a directed graph using relationship List
// The Directed graph is stored as a Map.
Map< String, ArrayList<String> > graph = new HashMap< String, ArrayList<String>>();
// the Key consists of name of a person (e.g "Alice","Bob" etc)
// the value consists of an ArrayList which contains the all the persons known to 'key'

for (String r:relationships) {
// Assuming that 'r' is of the form "<String> knows <String>"
String[] names = r.split(" ");
// the first and third string would be the names of the persons
String key = names[0];

if(!graph.containsKey(key)) {
ArrayList<String> val = new ArrayList<String>();
val.add(names[2]);
graph.put(key, val);
}else {
ArrayList<String> val = graph.get(key)
;
val.add(names[2]);
graph.replace(key, val);
}

}


// Now get queries
for (String q : queries) {
// Assuming that 'q' is of the form "<Integer> knows <String>"
String[] query = q.split(" ");
int degree = Integer.parseInt(query[0]);
String person = query[1];
System.out.println(person + " is within " + query[0] + " degrees of separation from:");
ArrayList<String> knownPersons = findFriends(graph, degree, person);

// sort the list 'knownPersons' and then print the contents
Collections.sort(knownPersons);
for(String per : knownPersons){
System.out.println(" "+per);
}

}

in.close();

}

}

------------------------------------------------------------------------------------------------------

Alice knows Bob Carol knows Dave Carol knows Bob Bob knows Eve Eve knows Caro Eve knows Fred 2 Carol 3 Fred 3 Eve done Carol is within 2 degrees of separation from: Bob Dave Eve Fred is within 3 degrees of separation from: Eve is within 3 degrees of separation from: 8 8 Bob Carol Dave Fred
