The deflection of a uniform beam subject to a linearly increasing distributed load can be compute...
Problem statement Beam Deflection: Given the elastic deflection equation for a beam with the boundary and...
Problem statement Beam Deflection: Given the elastic deflection equation for a beam with the boundary and loading conditions shown below, determine the maximum downward deflection (i.e. where dy/dx = 0) of a beam under the linearly increasing load wo = 10 kN/m. Use the following parameter values: L = 10m, E = 5x108 kN/m², 1 = 3x10-4 m4. Use the initial bracket guesses of XL = 0 m and xu = 10 m. Wo. wol(x5 + 2L?x3 – L^x), (1)...
Golden method

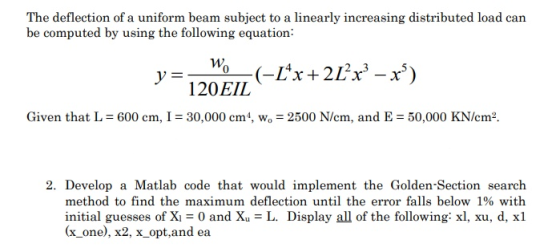

The deflection of a uniform beam subject to a linearly increasing distributed load can be computed asy=w0120EIL(−x5+2L2x3–L4x)y=w0120EIL(−x5+2L2x3–L4x)Given thatL=500cm,E=50,000kN/cm2,I=30,000cm4, andw0=2.0kN/cm,determine the point of maximum deflection graphically, using the golden-section search until the approximate error falls belowεs= 1% with initial guesses ofxl=0andxu=L
Use bisection method to determine the point of maximum deflection of the beam subject to a linearly increasing distributed load shown in the figure below
Use bisection method to determine the point of maximum deflection of the beam subject to a linearly increasing distributed load shown in the figure below (the value of x where dy/dx= 0). Then substitute this value into the equation to determine the value of the maximum deflection. Use the following parameter values in your computation: L = 600 cm, E=50,000 kN/cm2, I=30,000 cm4, and w0 =1.75 kN/cm.
Need help!! 1. (25 Points) In the figure below, figure (a) shows a uniform beam subject...
Need help!!
1. (25 Points) In the figure below, figure (a) shows a uniform beam subject to a linearly increasing distributed load which starts a 0 at the left end and increases to Wo on the right end. As depicted in (b), the beam deflection can be computed with 4 120EIL where E is the modulus of elasticity [kN/cm2] and I is the moment of inertia [cm]. Calculate each of thee following quantities (take the derivatives by hand) and plot...
Figure P5.13a shows a uniform beam subject to a linearly increasing distributed load. The equation for the resulting elastic curve is (see Fig. P5.135)
Figure P5.13a shows a uniform beam subject to a linearly increasing distributed load. The equation for the resulting elastic curve is (see Fig. P5.135) Use bisection to determine the point of maximum deflection (that is, the value of x where dy/dx = 0). Then substitute this value into Eq. (P5.13) to determine the value of the maximum deflection. Use the following parameter values in your com- putation: L = 600 cm, E = 50,000 kN/cm², I = 30,000 cm, and w0...
Uniform beam under distributed load
Case 1: Uniform beam under distributed load.In the shown Figure, a uniform beam subject to a linearly increasing distributed load. The deflection \(y(\mathrm{~m})\) can be expressed by \(y=\frac{w_{o}}{120 E I L}\left(-x^{5}+2 L^{2} x^{3}-L^{4} x\right)\)Where \(E\) is the modulus of elasticity and \(I\) is the moment of inertia \(\left(\mathrm{m}^{4}\right), L\) length of beam.Use the following parameters \(L=600 \mathrm{~cm}\), \(E=50,000 \mathrm{kN} / \mathrm{cm}^{2}, I=30.000 \mathrm{~cm}^{4}, w_{\mathrm{o}}=2.5\)\(\mathrm{kN} / \mathrm{cm}\), to find the requirements1) Develop MATLAB code to
determine the point of maximum
deflection...
TODEH Figure P2.26 shuws a unilorm beam sbjest to a linearly increusing distributed kd. As depicted...
TODEH Figure P2.26 shuws a unilorm beam sbjest to a linearly increusing distributed kd. As depicted in Flg. P2 deflection y (m) can be computed with (+21-1) y 120EIL (a) (b) FIGURE P2.2s where E the modalus of elasticity and / the moment of inertia ( plces of the following quantities versas distance along the heans Employ this equation and calculus to penerate MATLAD displacement Qs slope 10) d mone(M) -Eld yid shear [V Eld yid, and looding wr)IEld idy...
Python Help（screen shot if you can）thx！ Consider the example found in the lecture notes: Example: A horizontal cantiever beam is subject to a uniform, vertical load. The beam extends from its...
Python Help（screen shot if you can）thx！
Consider the example found in the lecture notes: Example: A horizontal cantiever beam is subject to a uniform, vertical load. The beam extends from its clamped end (x 0) to its free end ( L). The beam has a maximum deflection δmar at L. The deflection δ at location x aL is related to δmax by: Use the incremental-search method to solve the value of α at which δ/6,nar is equal to 0.75. Develop...
I wonder how to a problem 5.13. This problem is related to applied numerical methods with Matlab(third edition). I want Matlab code. 5.13 Figure P5.13a shows a uniform beam subject to a lin- early...
I wonder how to a problem 5.13.
This problem is related to applied numerical methods with
Matlab(third edition).
I want Matlab code.
5.13 Figure P5.13a shows a uniform beam subject to a lin- early increasing distributed load. The equation for the result- ing elastic curve is (see Fig. P5.13b) htm U) (P5.13) 3 3" Use bisection to determine the point of maximum deflection (i.e, the value of x where dy/dx 0). Then substitute this value into Eq. (P5 13) to...
Problem statement Beam Deflection: Given the elastic deflection equation for a beam with the boundary and loading conditions shown below, determine the maximum downward deflection (i.e. where dy/dx = 0) of a beam under the linearly increasing load wo = 10 kN/m. Use the following parameter values: L = 10m, E = 5x108 kN/m², 1 = 3x10-4 m4. Use the initial bracket guesses of XL = 0 m and xu = 10 m. Wo. wol(x5 + 2L?x3 – L^x), (1)...
Need help!!
1. (25 Points) In the figure below, figure (a) shows a uniform beam subject to a linearly increasing distributed load which starts a 0 at the left end and increases to Wo on the right end. As depicted in (b), the beam deflection can be computed with 4 120EIL where E is the modulus of elasticity [kN/cm2] and I is the moment of inertia [cm]. Calculate each of thee following quantities (take the derivatives by hand) and plot...
TODEH Figure P2.26 shuws a unilorm beam sbjest to a linearly increusing distributed kd. As depicted in Flg. P2 deflection y (m) can be computed with (+21-1) y 120EIL (a) (b) FIGURE P2.2s where E the modalus of elasticity and / the moment of inertia ( plces of the following quantities versas distance along the heans Employ this equation and calculus to penerate MATLAD displacement Qs slope 10) d mone(M) -Eld yid shear [V Eld yid, and looding wr)IEld idy...
Python Help（screen shot if you can）thx！
Consider the example found in the lecture notes: Example: A horizontal cantiever beam is subject to a uniform, vertical load. The beam extends from its clamped end (x 0) to its free end ( L). The beam has a maximum deflection δmar at L. The deflection δ at location x aL is related to δmax by: Use the incremental-search method to solve the value of α at which δ/6,nar is equal to 0.75. Develop...
I wonder how to a problem 5.13.
This problem is related to applied numerical methods with
Matlab(third edition).
I want Matlab code.
5.13 Figure P5.13a shows a uniform beam subject to a lin- early increasing distributed load. The equation for the result- ing elastic curve is (see Fig. P5.13b) htm U) (P5.13) 3 3" Use bisection to determine the point of maximum deflection (i.e, the value of x where dy/dx 0). Then substitute this value into Eq. (P5 13) to...
