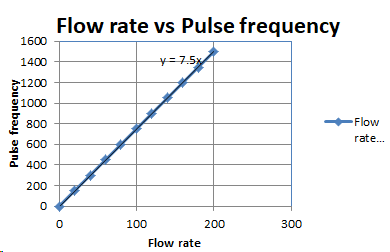

| From the given input output data the transfer function is 7.5 because when values of x(flow rate) are multiplied with it we get values of y(output pulse rate). | |||||||||||||
| The flow rate of water is 20m3/s when output is 150 Hz. | |||||||||||||
| Flow rate(m3/s) | Pulse frequency(Hz) |
| 0 | 0 |
| 20 | 150 |
| 40 | 300 |
| 60 | 450 |
| 80 | 600 |
| 100 | 750 |
| 120 | 900 |
| 140 | 1050 |
| 160 | 1200 |
| 180 | 1350 |
| 200 | 1500 |
Add Answer to:

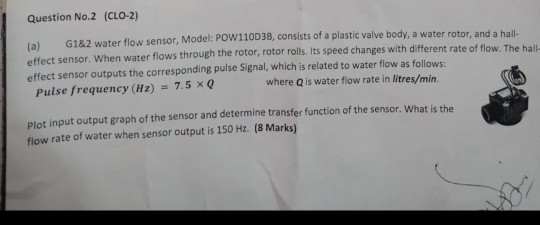

Question No.2 (CLO-2) (a) G182 water flow sensor, Model: PoW110038, consists of a plastic valve b...
