Problem 1

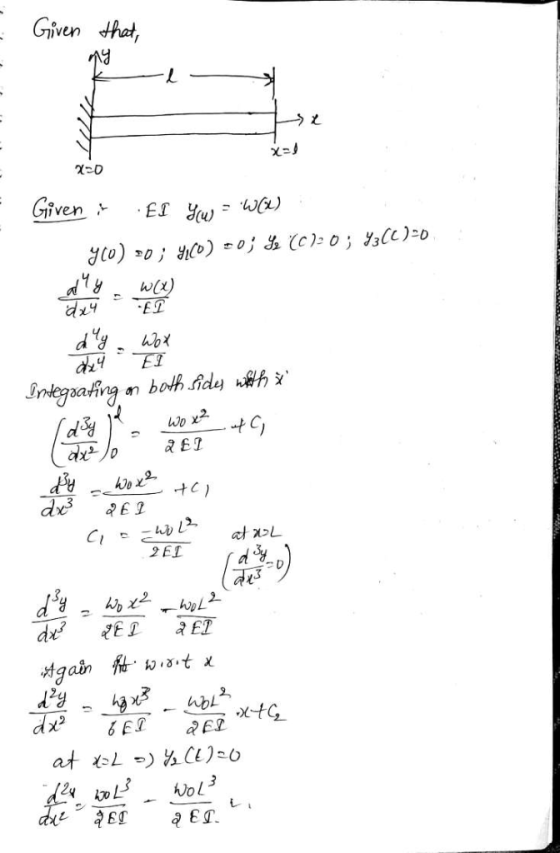

A cantilever beam of length L is clamped at its left end (x = 0)
and is free at its right end (x = L). Along with the fourth-order
differential equation EIy(4) = w(x), it satisfies the given
boundary conditions y(0) = y′(0) = 0,y′′(L) = y′′′(L) = 0.
a) If the load w(x) = w0 a constant, is distributed uniformly,
determine the deflection y(x).

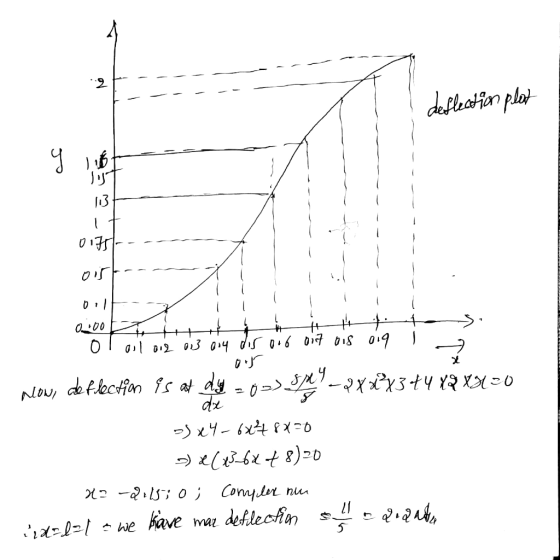

b) Graph the deflection curve when w0 = 24EI and L = 1. c) Find the maximum deflection of the cantilever beam.
Homework Answers
Add Answer to:
Problem 1 A cantilever beam of length L is clamped at its left end (x = 0) and is free at its rig...
Problem 1 A cantilever beam of length L is clamped at its left end (x =...

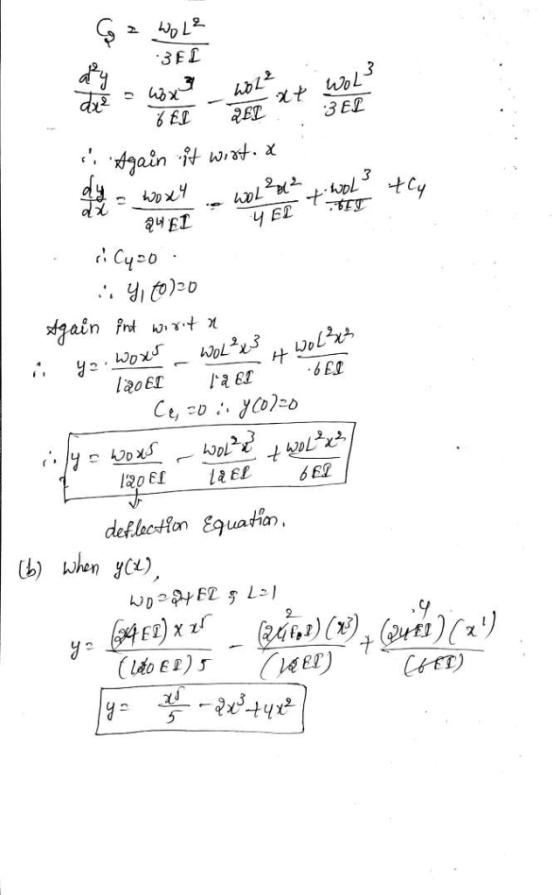

Problem 1 A cantilever beam of length L is clamped at its left end (x = 0) and is free at its right end (x = L). Along with the fourth-order differential equation EIy(4) = w(x), it satisfies the given boundary conditions y(0) = y′(0) = 0,y′′(L) = y′′′(L) = 0. a) If the load w(x) = w0 a constant, is distributed uniformly, determine the deflection y(x). b) Graph the deflection curve when w0 = 24EI and L = 1....
