A 10-m-long, 5.042-cm I.D. copper pipe has two fully open gate valves, a swing check valve, and a...

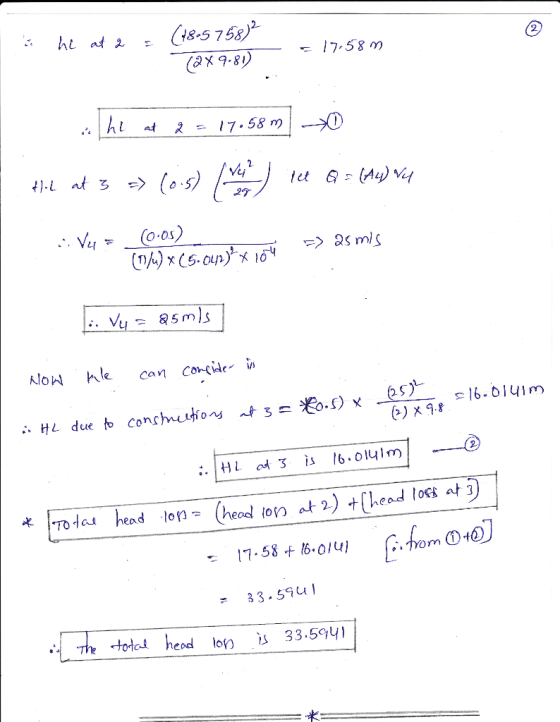

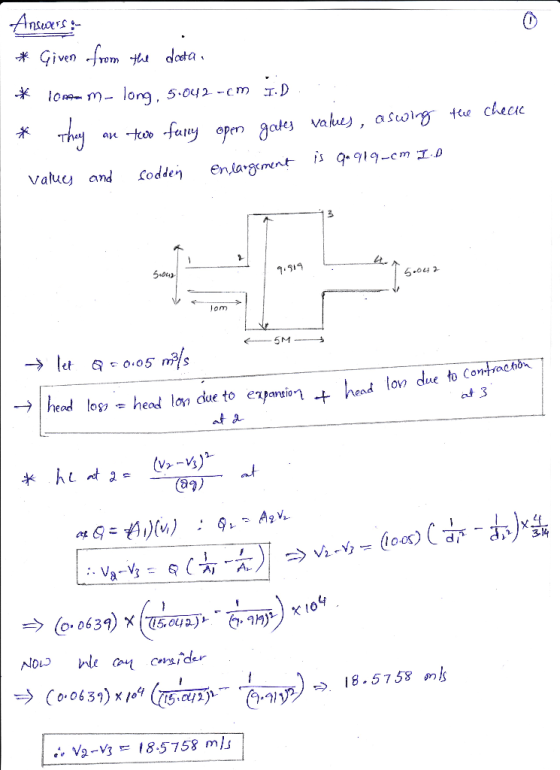

A 10-m-long, 5.042-cm I.D. copper pipe has two fully open gate valves, a swing check valve, and a sudden enlargement to a 9.919-cm I.D. copper pipe. The 9.919 cm copper pipe is 5.0 m long and then has a sudden contraction to another 5.042-cm copper pipe. Find the head loss for a 20 °C water flow rate of 0.05 m3/s.. Answer is 180
Homework Answers
Add Answer to:
A 10-m-long, 5.042-cm I.D. copper pipe has two fully open gate valves, a swing check valve, and a...
Part A Head loss A gate valve is being used as a shut-off valve in a...
Part A Head loss A gate valve is being used as a shut-off valve in a pipe system. When the valve is fully open, the flow through the 9-cm diameter pipe is 40 L/min. What is the head loss at the gate valve? One iter is 0.001 cubic meters. Express your answer in m to three significant figures. View Available Hint(s) vec Submit Request Answer
Two water reservoirs A and B are connected to each other through a 35m-long, 2-cm-diameter cast...
Two water reservoirs A and B are connected to each other through a 35m-long, 2-cm-diameter cast iron pipe with a sharp-edged entrance. The pipe also involves a swing check valve and a fully open gate valve. The water level in both reservoirs is the same, but reservoir A is pressurized by compressed air while reservoir B is open to the atmosphere at 94 kPa. If the initial flow rate through the pipe is 1.2 L/s, determine the air pressure (gage)...
A 2.1 cm diameter, 19 meters long pipe has 3 90° regular, threaded elbows, 2 45°...
A 2.1 cm diameter, 19 meters long pipe has 3 90° regular, threaded elbows, 2 45° long- radius, flanged elbows, 10 unions, 1 ball valve(s), fully open and 1 gate valve(s) half open. Water flows in the pipe at a rate of 1.7 m3/hr. Calculate the total minor loss coefficient, KL for the pipe. Keep two decimal places in your answer
A system using 10-inch (10") internal diameter pipe requires a selection of flanged valves. Consider 10"...
A system using 10-inch (10") internal diameter pipe requires a selection of flanged valves. Consider 10" ball valves, gate valves, globe valves, and check valves in the fully-open position; and butterfly valves in a variety of open positions. FNW has been chosen as the equipment supplier; the relevant data sheets can be found on Desire2Learn (see below for information on valve part numbers and cor- responding files). The data sheets give valve coefficients (C,): flow rates in GPM corresponding to...
Water is pumped at a rate of 10 litres/s from a pond to an open tank....
Water is pumped at a rate of 10 litres/s from a pond to an open tank. The pipe is 30 m in length and made of 1-in, Schedule 40 (I.D = 0.02664 m) commercial steel pipe with the surface roughness of 0.0018 in (0.045 mm). In the pipelines, there are two gate valves, one globe valve and three 90o long-radius elbows. The surface of water in the tank is 3 m above the surface of the pond. (The density of...
Problem 5: The system in the Figure consists of 1200 m of 5 cm cast-iron pipe, two 45o and four 90 flanged long-radius elbows, a fully open flanged globe valve, and a sharp exit into a reservoir. If...
Problem 5: The system in the Figure consists of 1200 m of 5 cm cast-iron pipe, two 45o and four 90 flanged long-radius elbows, a fully open flanged globe valve, and a sharp exit into a reservoir. If the elevation at point 1 is 400 m, what gage pressure is required at point 1 to deliver 0.005 m3/s of water at 20°C into the reservoir? Elevation 500 m Sharp exit 45° Open globe 45
Problem 5: The system in the...
Two water reservoirs A and B are connected to each other through a 35m-long, 2-cm-diameter cast...
Two water reservoirs A and B are connected to each other through a 35m-long, 2-cm-diameter cast iron pipe with a sharp-edged entrance. The pipe also involves a swing check valve and a fully open gate valve. The water level in both reservoirs is the same, but reservoir A is pressurized by compressed air while reservoir B is open to the atmosphere at 94 kPa. If the initial flow rate through the pipe is 1.2 L/s, determine the air pressure (gage)...
The Figure below (Figure 3) shows a pipe system with a valve and two reservoirs
QUESTION3 The Figure below (Figure 3) shows a pipe system with a valve and two reservoirs. A pump transports a constant flow rate of Q = 0.1 m3/s of water from reservoir A to reservoir B. At four sections the pipe has bends and the roughness of the pipe is ks = 1.5 mm. The pipe has a diameter D = 34 cm and a total length L = 500 m. The water level in reservoir B is Δh=4.67 m above...
A 12-in diameter pipe conveys fluid at 8 ft/s between two tanks. The friction factor f is 0.02. The pipe entrance and exits are both squared edged. The pipe also contains a fully-open gate valve. Dete...
A 12-in diameter pipe conveys fluid at 8 ft/s between two tanks. The friction factor f is 0.02. The pipe entrance and exits are both squared edged. The pipe also contains a fully-open gate valve. Determine what percent of the head loss is due to minor losses for the following three pipe lengths: (a) 4 ft, (b) 80 ft, (c) 1600 ft. Comment on whether minor losses are always “minor”.
Problem 5 A 12-in diameter pipe conveys fluid at 8 ftl/s between two tanks. The friction factor fis 0.02. The pipe entrance and exits are both squared edged. The pipe also contains a fully-open gate...
Problem 5 A 12-in diameter pipe conveys fluid at 8 ftl/s between two tanks. The friction factor fis 0.02. The pipe entrance and exits are both squared edged. The pipe also contains a fully-open gate valve. Determine what percent of the head loss is due to minor losses for the following three pipe lengths: (a) 4 ft, (b) 80 ft, (c) 1600 ft. Comment on whether minor losses are always "minor".
Problem 5 A 12-in diameter pipe conveys fluid at...
Part A Head loss A gate valve is being used as a shut-off valve in a pipe system. When the valve is fully open, the flow through the 9-cm diameter pipe is 40 L/min. What is the head loss at the gate valve? One iter is 0.001 cubic meters. Express your answer in m to three significant figures. View Available Hint(s) vec Submit Request Answer
Two water reservoirs A and B are connected to each other through a 35m-long, 2-cm-diameter cast iron pipe with a sharp-edged entrance. The pipe also involves a swing check valve and a fully open gate valve. The water level in both reservoirs is the same, but reservoir A is pressurized by compressed air while reservoir B is open to the atmosphere at 94 kPa. If the initial flow rate through the pipe is 1.2 L/s, determine the air pressure (gage)...
A 2.1 cm diameter, 19 meters long pipe has 3 90° regular, threaded elbows, 2 45° long- radius, flanged elbows, 10 unions, 1 ball valve(s), fully open and 1 gate valve(s) half open. Water flows in the pipe at a rate of 1.7 m3/hr. Calculate the total minor loss coefficient, KL for the pipe. Keep two decimal places in your answer
A system using 10-inch (10") internal diameter pipe requires a selection of flanged valves. Consider 10" ball valves, gate valves, globe valves, and check valves in the fully-open position; and butterfly valves in a variety of open positions. FNW has been chosen as the equipment supplier; the relevant data sheets can be found on Desire2Learn (see below for information on valve part numbers and cor- responding files). The data sheets give valve coefficients (C,): flow rates in GPM corresponding to...
Problem 5: The system in the Figure consists of 1200 m of 5 cm cast-iron pipe, two 45o and four 90 flanged long-radius elbows, a fully open flanged globe valve, and a sharp exit into a reservoir. If the elevation at point 1 is 400 m, what gage pressure is required at point 1 to deliver 0.005 m3/s of water at 20°C into the reservoir? Elevation 500 m Sharp exit 45° Open globe 45
Problem 5: The system in the...
Two water reservoirs A and B are connected to each other through a 35m-long, 2-cm-diameter cast iron pipe with a sharp-edged entrance. The pipe also involves a swing check valve and a fully open gate valve. The water level in both reservoirs is the same, but reservoir A is pressurized by compressed air while reservoir B is open to the atmosphere at 94 kPa. If the initial flow rate through the pipe is 1.2 L/s, determine the air pressure (gage)...
Problem 5 A 12-in diameter pipe conveys fluid at 8 ftl/s between two tanks. The friction factor fis 0.02. The pipe entrance and exits are both squared edged. The pipe also contains a fully-open gate valve. Determine what percent of the head loss is due to minor losses for the following three pipe lengths: (a) 4 ft, (b) 80 ft, (c) 1600 ft. Comment on whether minor losses are always "minor".
Problem 5 A 12-in diameter pipe conveys fluid at...
