Question

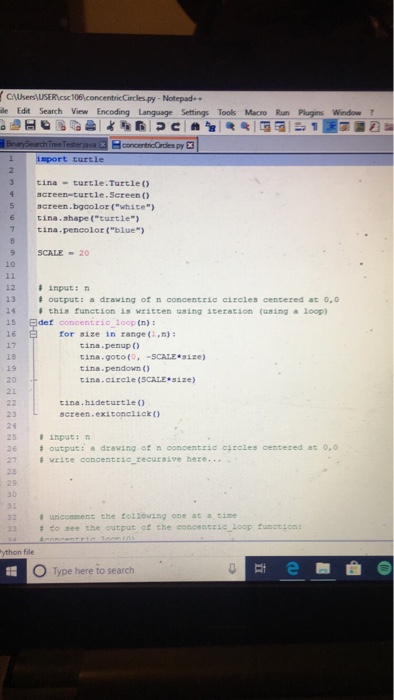

dle Edit Search View Encoding Language Settings Tools Macro Run Plugins Window 1 isport turtle 3 tina turtle.Turtle 4 SCreen-turtle.Screen ) 5 acreen.bgoolor ("white") 6 tina.shape ("turtle" 7tina.pencolor ("blue") SCALE -20 10 12 13 14 15 16 17 18 19 20 21 input: n # output: a drawing of n concentric circles centered at 0,0 # this function is written using iteration (using a loop) Edef concentric loop (n) : for size in range(n) : tina.penup tina goto (O, -SCALE size) tina.pendown ) tina.circle (SCALE size) tina.hideturtle ) screen.exitonclick( 23 L 24 25 input:n 26 # output: a drawing of n concentric 다rcle, ce tered at 0.0 # wzite concentric recursive here 28 30 32 # uncomment the following one at time # eo see the output of the concentric-loop tunction ython file 0 Type here to search 1. Exercise to draw concentric circles: a. Download concentriccircles.py b. Start by uncommenting and running the tests of the concentric loop c. Write the recursive version of this function in the file under the comments d. Test your function by uncommenting the tests of the concentric recursive function one at a time to see what the output looks like provided. Your function must be named concentric recursive function one at a time to compare the output to that of concentric ldop connex: x Microsof x 23 Recur × /fde46843-6be2-4a13-8ff2-b3b440d37cc2/ Notice, in the simplest case stri(24, 0, o with a CUTOFF of 25, no recursive calls are made, and the basecase draws one triangle with side length of24 The next testcase is a call to stri(so, o, o) with a CUTOFF of 25 This case, starts with an equilateral triangle with side length of S0. Inside of that triangle, three more Sierpinski triangles are drawn with a side length of 25 (two on the bottom and one above). The inner triangles are drawn in red to highlight the recursion: With the later testcase stri 1s0, o, 0) with a CUTOFF of 25 In this case, the outer triangle is drawn with side length 150, inside that triangle are 3 more Sierpinski triangles are drawn, and inside each of those 3 more Sierpinski triangles, and so on If we were to lower the CUTOFF value it would take much more time to run the program, but a more detailed fractal would be drawn like this one from

Answer 1

import turtle

tina = turtle.Turtle()
screen = turtle.Screen()
screen.bgcolor("white")
tina.shape("turtle")
tina.pencolor("blue")

SCALE=20

def concentric_loop(n):
for size in range (1,n):
tina.penup()
tina.goto(0,-SCALE*size)
tina.pendown()
tina.circle(SCALE*size)
tina.hideturtle()
screen.exitonclick()

#input n
#output concentric circle at 0,0
def concentric_recursive(n):
tina.penup()
tina.goto(0,-SCALE*n)
tina.pendown()
tina.circle(SCALE*n)
if(n > 0):
concentric_recursive(n-1)
else:
tina.hideturtle()
screen.exitonclick()

concentric_recursive(5)
