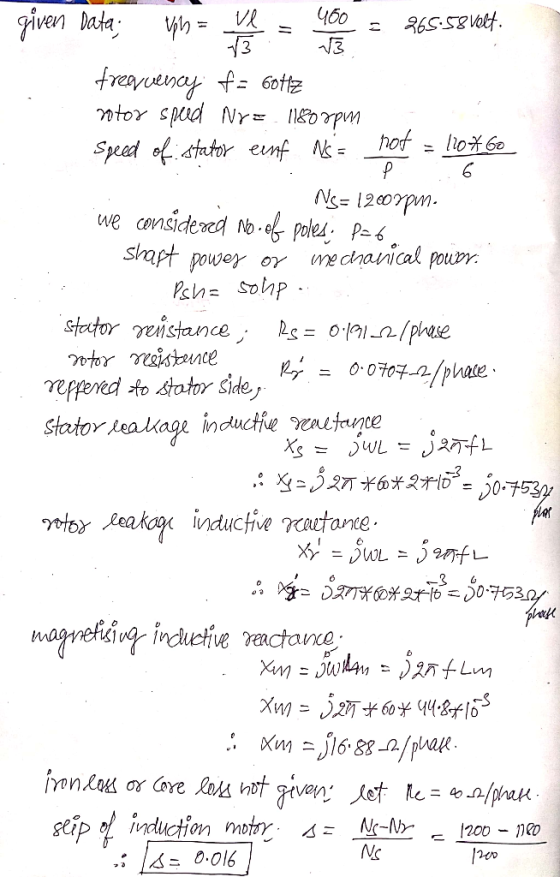

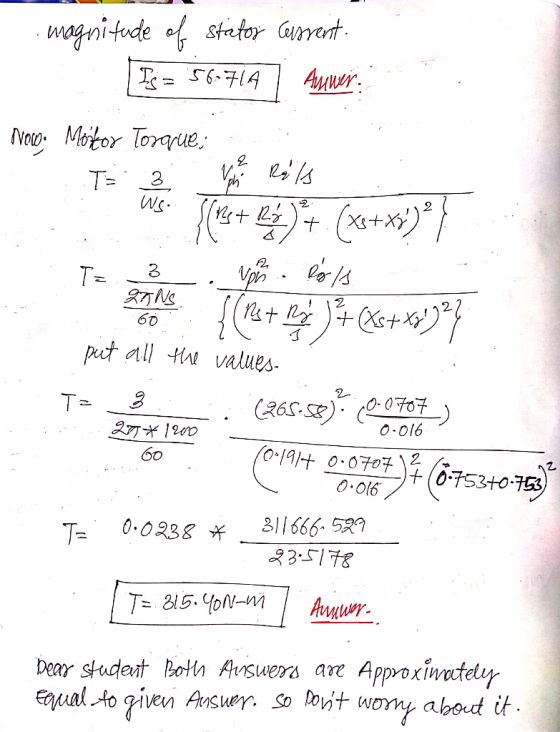

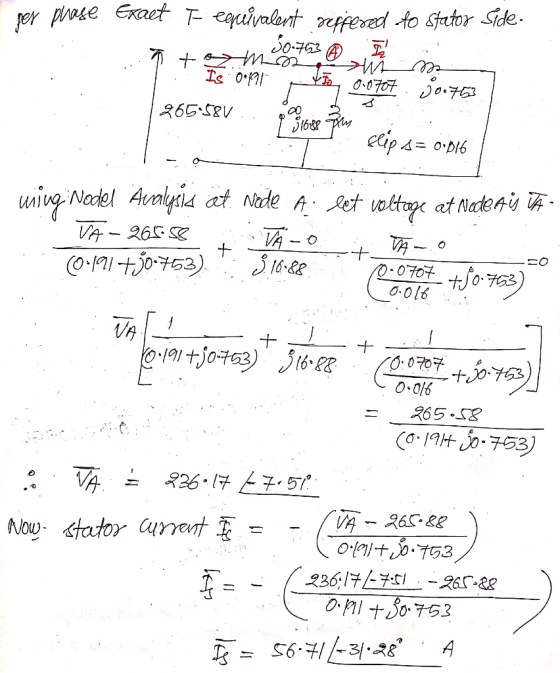

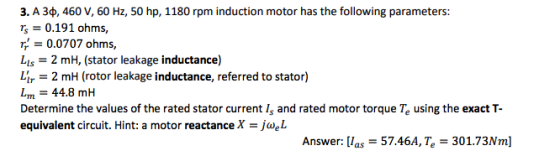

Can you make sure solution has the answer that is stated above on the right
Homework Answers
Add Answer to:
Can you make sure solution has the answer that is stated above on the right
