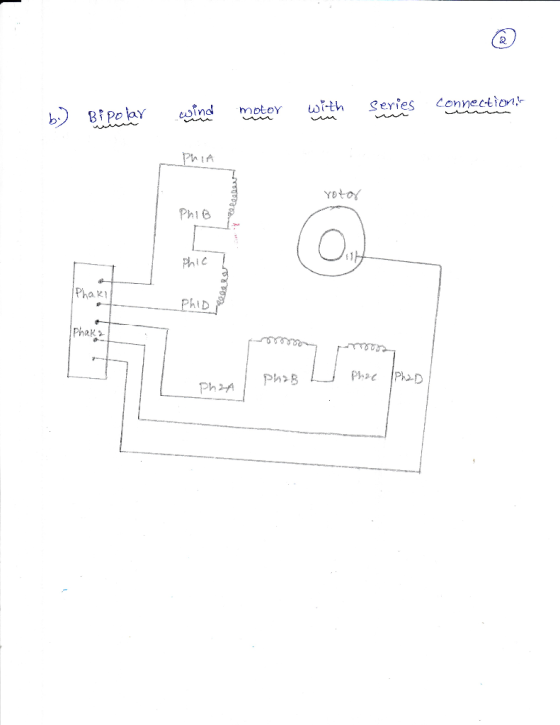

Solution:
Given that,

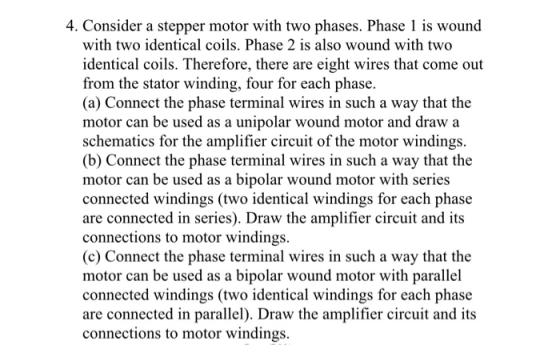

4. Consider a stepper motor with two phases. Phase 1 is wound with two identical coils. Phase 2 i...
Draw an impedance diagram for the series connected coils with
zero coupling.
the values I have is:
Impedance: 8.5 ohms
Phase angle: 51.14 degrees
Resistance: 5.84 ohms
Reactance: 6.62 ohms
Inductance: 0.02 Henrys
