Homework Answers
if you have any doubts
comment
Add Answer to:

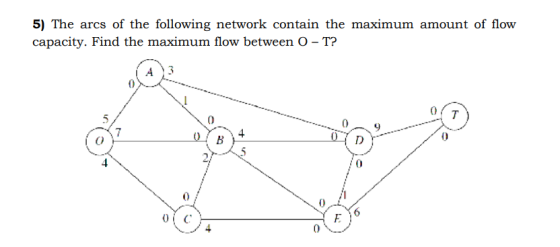

5) The arcs of the following network contain the maximum amount of flow d the maximum flow betwee...
4) Consider the network flow graph below, where each arc is labeled with the maximum capacity...
4) Consider the network flow graph below, where each arc is labeled with the maximum capacity of that link in the flow network. A 25C 15 - 10,- -* YD 15 35 20 40 10 X 2 (a) Use the Ford-Fulkerson Algorithm to determine the maximum total flow from source to sink in this network. Start with the path s B DA Ct and list (in order) the remaining paths added and the total flow after each path is added....
1) At the following network, 900 cars are going from node to node 6 per hour. The values on arcs are maximum number of cars that can use the arc per hour and average time to traverse the are resp...
1) At the following network, 900 cars are going from node to node 6 per hour. The values on arcs are maximum number of cars that can use the arc per hour and average time to traverse the are respectively. Find minimum total time for the travel of 900 cars by using capacitated network simplex method. 2-600, 30-4 800, 10 100,70 400, 60 6 )-900 600, 30 900 300, 10 600, 30 600, 50 3-400, 605
1) At the following...
1) Explicitly formulate the maximum flow problem for the following graph, using both [MFP 1] and [MFP 2]. The numbers on the arcs are the arc-capacities. (15 points) 2) Use Excel solver to solve both...
1) Explicitly formulate the maximum flow problem for the following graph, using both [MFP 1] and [MFP 2]. The numbers on the arcs are the arc-capacities. (15 points) 2) Use Excel solver to solve both of them (i.e., formulations of [MFP 1] and [MFP 2]). Verify that they have the same 15 10 20 o solve both of them (i.e., formulat 8 9 (10 points) optimal solutions and values.
1) Explicitly formulate the maximum flow problem for the following graph,...
Find a maximum value flow
Find a maximum value flow vector from source to sink in thenetworks in Figures 2.10.Here a is a parameter. All lower bounds are 0, and capacitiesare entered on the arcs. Obtain the solution to the problem asa function of a, for a>= 0.
1. Linear programming can be used to calculate the maximum flow in a network from the...
1. Linear programming can be used to calculate the maximum flow in a network from the source s, to the sink t. Which of the following statements below gives the correct objective function, and number of constraints for applying a linear program for computing maximum flow in the following graph? In this graph, the maximum capacity of each edge is given as the number next to the corresponding edge. The flow along an edge eſi, j) is denoted by fij....
4. Use Ford-Fulkerson algorithm to find the maximum flow from source node 0 to the sink node 5 in...
4. Use Ford-Fulkerson algorithm to find the maximum flow from source node 0 to the sink node 5 in the following network.
1. Say that we are given a maximum flow in the network. Then the capacity of one of the edges e i...
1. Say that we are given a maximum flow in the network. Then the capacity of one of the edges e is increased by 1. Give an algorithm that checks if the maximum flow has increased 2. When we increase the capacity of some edge by 5 can it be that the flow does not increase at all? 3. When we increase the capacity of an edge by 5, can the flow grow by 7? Please write time complexity for...
For the network in the figure, apply the max-min flow control algorithm to assign sessions for...
For the network in the figure, apply the max-min flow control
algorithm to assign sessions for the following network. Three
different flows each with offering Poisson arrivals streams are
sharing the links in this network. The link capacities (equivalent
with the transmission rates for each transmission line) are marked
in the figure. The service times for a transmission line are
assumed to be exponentially distributed.
The session flow 1 has the path A -> B -> C -> D; Flow...
10 points) Use the Max Flow algorithm to find the maximum flow through the network shown...
10 points) Use the Max Flow algorithm to find the maximum flow through the network shown below and also give a minimum cut to verify that is the correct value. A (4,0) B (5,0) (3,0) (5,0) (4,0) E S (13,0) (6.0) D (4,0) (6,0) (3,0) (14,0) (6.0) (12,0) (2,0) с (3,0) (5,0) F
Determine the maximum flow from vertex A to vertex F. The answer is in the residual...
Determine the maximum flow from vertex A to vertex F. The answer is in the residual graph with all the reversed and unused flow. Follow the network flow algorithm we covered in class. This algorithm will have 2 iterations before halting. Answer the following 3 problems. Question 9 6 pts What is the flow after the first iteration of the algorithm? Perform the first maximum flow iteration and tell me the flow. © A,C,E,F with a flow of 6 A,B,D,F...
4) Consider the network flow graph below, where each arc is labeled with the maximum capacity of that link in the flow network. A 25C 15 - 10,- -* YD 15 35 20 40 10 X 2 (a) Use the Ford-Fulkerson Algorithm to determine the maximum total flow from source to sink in this network. Start with the path s B DA Ct and list (in order) the remaining paths added and the total flow after each path is added....
1) At the following network, 900 cars are going from node to node 6 per hour. The values on arcs are maximum number of cars that can use the arc per hour and average time to traverse the are respectively. Find minimum total time for the travel of 900 cars by using capacitated network simplex method. 2-600, 30-4 800, 10 100,70 400, 60 6 )-900 600, 30 900 300, 10 600, 30 600, 50 3-400, 605
1) At the following...
1) Explicitly formulate the maximum flow problem for the following graph, using both [MFP 1] and [MFP 2]. The numbers on the arcs are the arc-capacities. (15 points) 2) Use Excel solver to solve both of them (i.e., formulations of [MFP 1] and [MFP 2]). Verify that they have the same 15 10 20 o solve both of them (i.e., formulat 8 9 (10 points) optimal solutions and values.
1) Explicitly formulate the maximum flow problem for the following graph,...
1. Linear programming can be used to calculate the maximum flow in a network from the source s, to the sink t. Which of the following statements below gives the correct objective function, and number of constraints for applying a linear program for computing maximum flow in the following graph? In this graph, the maximum capacity of each edge is given as the number next to the corresponding edge. The flow along an edge eſi, j) is denoted by fij....
4. Use Ford-Fulkerson algorithm to find the maximum flow from source node 0 to the sink node 5 in the following network.
For the network in the figure, apply the max-min flow control
algorithm to assign sessions for the following network. Three
different flows each with offering Poisson arrivals streams are
sharing the links in this network. The link capacities (equivalent
with the transmission rates for each transmission line) are marked
in the figure. The service times for a transmission line are
assumed to be exponentially distributed.
The session flow 1 has the path A -> B -> C -> D; Flow...
10 points) Use the Max Flow algorithm to find the maximum flow through the network shown below and also give a minimum cut to verify that is the correct value. A (4,0) B (5,0) (3,0) (5,0) (4,0) E S (13,0) (6.0) D (4,0) (6,0) (3,0) (14,0) (6.0) (12,0) (2,0) с (3,0) (5,0) F
Determine the maximum flow from vertex A to vertex F. The answer is in the residual graph with all the reversed and unused flow. Follow the network flow algorithm we covered in class. This algorithm will have 2 iterations before halting. Answer the following 3 problems. Question 9 6 pts What is the flow after the first iteration of the algorithm? Perform the first maximum flow iteration and tell me the flow. © A,C,E,F with a flow of 6 A,B,D,F...
