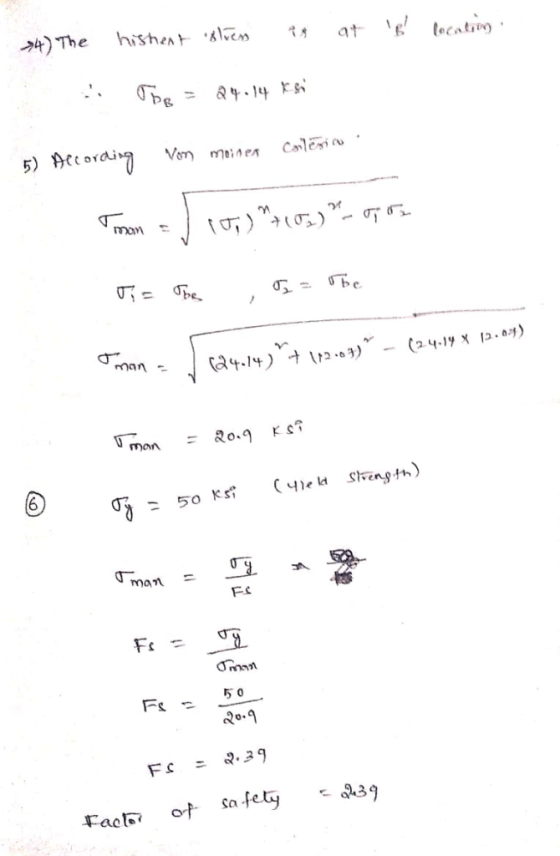

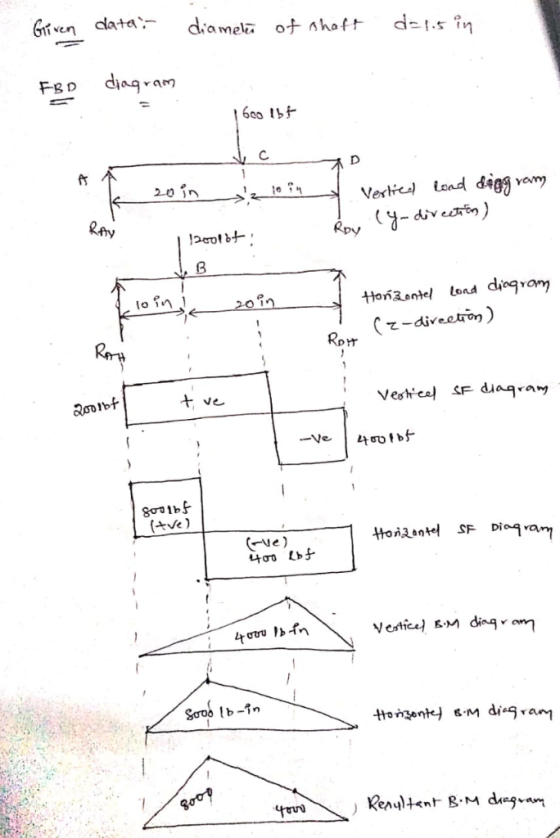

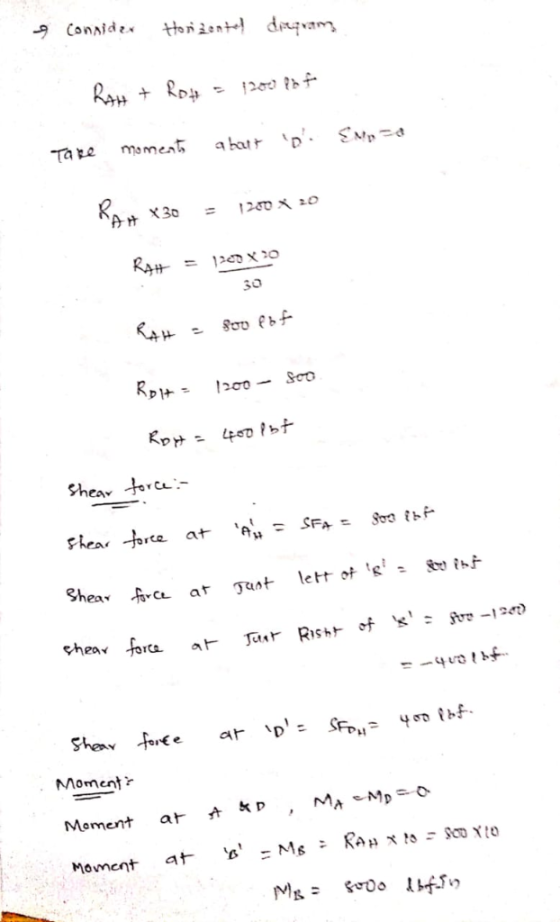

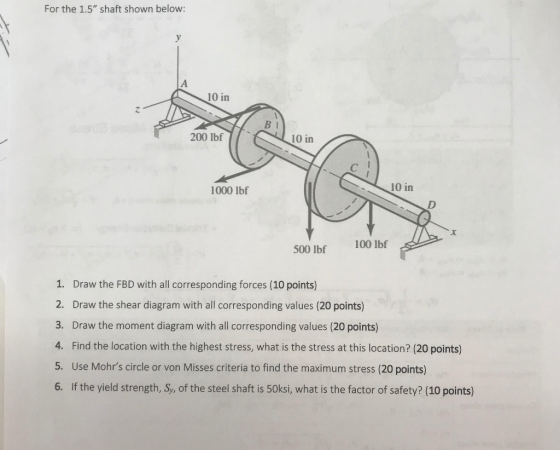

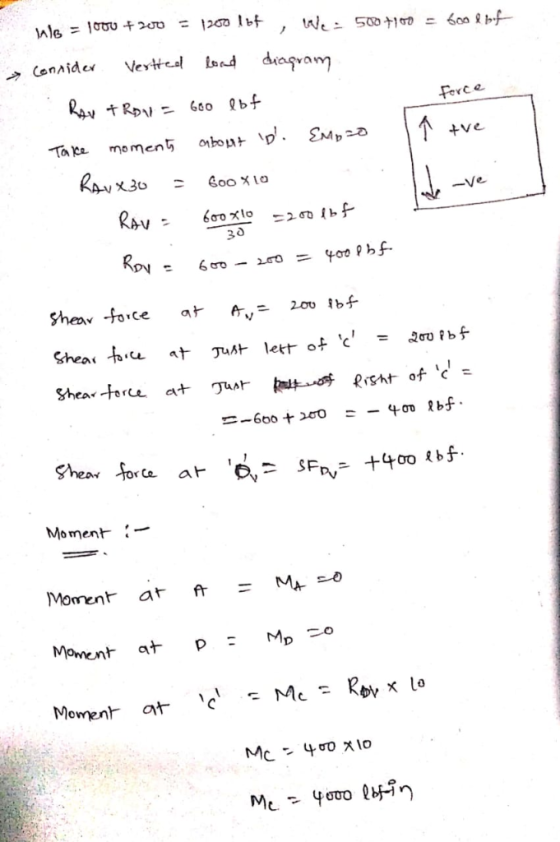

For the 1.5" shaft shown below: 10 in 2 B 1 200 lbf 10 in 1000 lbf 500 lbf 100 lbf 1. Draw the FB...
Problem 3 (17 points) The two static forces are applied to a circular 1-in diameter shaft as shown. The shaft is made from 1045 CD Steel with a yield strength of 77 ksi. 8 in 1000 lbf 1 in dia. Cross section at the wall 800 lbf (2) a) Identify the location of the most critical stress element. (A. E, F or D?) (10) b) Determine the stresses and draw the stresses on the critical element identified in part a)....
Problem 1 (a) (200 points) Shaft fatigue strength In the figure below, a rotating shaft (for speed reducing gearbox) is subjected to radial forces at A-400 lbrand at C-800 iht. These radial forces are caused by spur gears mounted to shar (a result of the pressure angle of the teeth, 20 degrees) that mesh with 2 other spur gears, not shown. Also, The shaft transmits a constant torque of 11110 in-Ibr (925 - due to the tangential force (s: transmitted...
A 1-in, constant diameter shaft is loaded with forces at A and B as shown, with ground reaction forces at O and C. The shaft also transmits a torque of 1500 lbf in throughout the length of the shaft. The shaft has a tensile yield strength of 130 kpsi. 460 lbf 575 lbf -12 in 18 in 1500 lbf-in А B ° To |--10 in- RO Rc Determine the minimum static factor of safety using the maximum-shear-stress failure theory, The...
2. (8 points) A solid shaft shown below is loaded in bending and torsion with steady rotation. The total bending moment and torque diagrams are also given. The selected shaft steel material has an ultimate tensile strength Sut = 68kpsi, initial yield stress Sy = 57kpsi, and fully corrected factors for endurance limit, kakykekakek, = 0.60. (a) (6 points) Determine the factor of safety at point D of the shaft using DE-ASME Elliptic criterion. Assume K, = 1.8 and Kfs...
Problem 2: A circular shaft transmits power as shown with pulley loads. The shaft carries a torque, bending, shear and axial loads. Draw LVM diagram to find Mmax and Vmax. Show all loads (moments and forces) on the circular x-section of the shaft below. Use double arrows for moments. Compute shear and normal stresses and show them on the same section. Create stress elements for points A and B of the section. Combine the stresses and compute Cuau (Tresca) and...
Problem 2: A circular shaft transmits power as shown with pulley loads. The shaft carries a torque, bending, shear and axial loads. Draw LVM diagram to find Mmax and Vmax. Show all loads (moments and forces) on the circular x-section of the shaft below. Use double arrows for moments. Compute shear and normal stresses and show them on the same section. Create stress elements for points A and B of the section. Combine the stresses and compute Tmax (Tresca) and...
A shaft with a diameter of 43 mm, is shown below On the right
hand side at location D a wheel has a force F of 4824N applied. The
diameter of this wheel is 150 mm. The torque produced by F is
transmitted through the entire shaft to location A where the torque
is reacted. There are no other constraints at location A. Bearings,
are located at B and C, and provide radial constraint. The bearing
at B also provides...
Find the normal U a. b. Find the maximum shear stress and plltip c. Find the safety factor using the distortion-energy (Von MiSe Problem 2 [20]: A simply supported shaft with overhanging load is shown in Figure 2 force P is applied as the shaft rotates. The shaft is also subject to a constant torque of T ignoring Tmin, find the diameter of shaft required to obtain a safety factor o shaft is steel of Sut - 118 kpsi and...
A circular shaft transmits power as shown with pulley loads. The shaft carries a torque, bending, shear and axial loads. Draw LVM diagram to find Mmax and Vmax. Show all loads (moments and forces) on the circular x-section of the shaft below. Use double arrows for moments. Compute shear and normal stresses and show them on the same section. Create stress elements for points A and B of the section. Combine the stresses and compute tmax (Tresca) and om (von...
For the shaft shown below, draw the free body diagram of just
the shaft (isolated from the pulley) including directions and
values of all reaction loads at the self-aligning bearings A and B.
Once complete, directly under your FBD, draw the shear force
diagram (SFD), bending moment diagram (BMD) and torque diagram (TD)
with all important values shown on the figures. Directions are
critical and you must show your axes (choose).
B 100 Free end of shaft 20-mm- dia. shaft...
