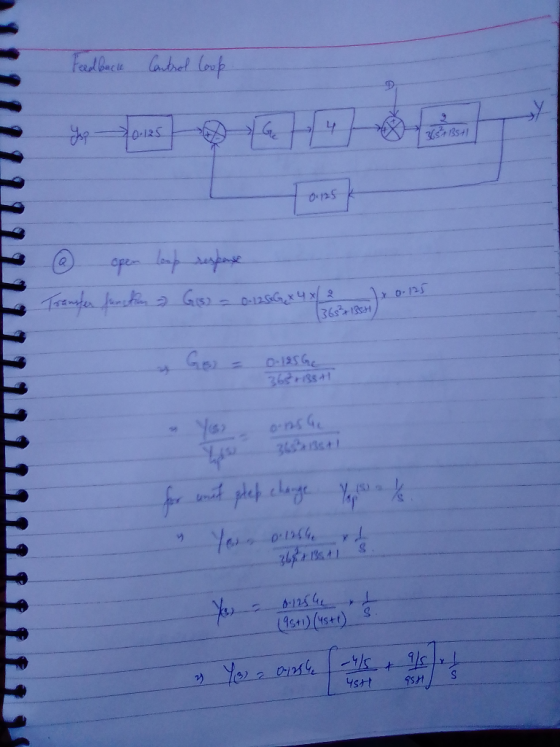

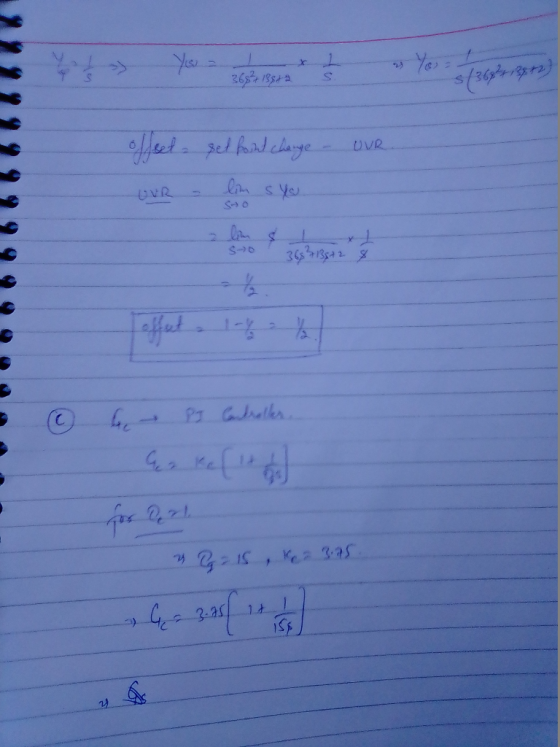

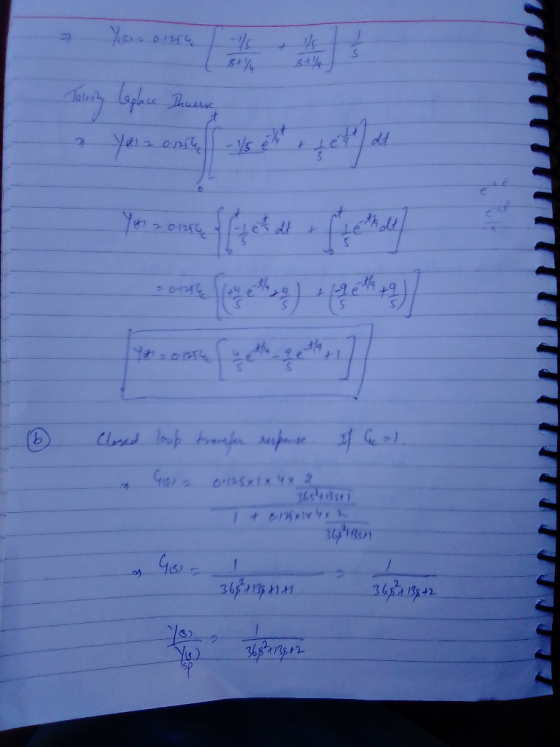

A standard feedback control loop is shown below: 0.125 36s213s 1 0.125 a) Determine y(t) for the ...
part 2 & part 3 please...
Tutorial -On PID control (Control System: Instructor slides and lab) Consider a second order mass-force system to study its behavior under various forms of PID control xtn fon force In Disturbance force: 50) (i.e. wind force) Part I (dealing with the plant/process) 1. What is the model of this system, in other words, write the ODE of the system 2. Derive the transfer function of the above system from Fls) to X(s) 3. What...
1. A feedback control system is shown in the figure below. Suppose that our design objective is to find a controller Gc(S) of minimal complexity such that our closed-loop system can track a unit step input with a steady-state error of zero. (b) Now consider a more complex controller Gc(S) = [ Ko + K//s] where Ko = 2 and Ki = 20. (This is a proportional + integral (PI) controller). Plot the unit step response, and determine the steady-state...
[7] Sketch the root locus for the unity feedback system whose open loop transfer function is K G(s) Draw the root locus of the system with the gain Kas a variable. s(s+4) (s2+4s+20) Determine asymptotes, centroid, breakaway point, angle of departure, and the gain at which root locus crosses ja-axis. A control system with type-0 process and a PID controller is shown below. Design the [8 parameters of the PID controller so that the following specifications are satisfied. =100 a)...
a) Based on the following transfer functions, use a model-based controller design method to design a feedback controller with te- i.e. determine the controller parameter value(s) 4 G, 3 G0.5 (4 marks) b) Determine the response y(t) to a unit step change disturbance of the closed loop transfer function from part a) implementing the controller from part a). Show al your working (you may refer to entries in the table of Laplace transforms attached as part of your working) (5...
An automatic feedback control system is shown below. G(o), H(o), and Gc(o) are such that G(s) H(s) = +1 1 = unction Gcu(s) relating Y(9) to R(s) (b) What is the system order? (c) If Tp(s) = 0, in terms of K and τ determine what value(s) of K, (if any) will result in an undamped closed-loop system Td (s) Y (s) PID R(s) Gc (s) Plant G(s) Sensor H(s)
An automatic feedback control system is shown below. G(o), H(o),...
1. [25%] Consider the closed-loop system shown where it is desired to stabilize the system with feedback where the control law is a form of a PID controller. Design using the Root Locus Method such that the: a. percent overshoot is less than 10% for a unit step b. settling time is less than 4 seconds, c. steady-state absolute error (not percent error) due to a unit ramp input (r=t) is less than 1. d. Note: The actuator u(t) saturates...
Q.4 A position control system is shown in Figure Q4. Assume that K(s) = K, the plant 50 s(0.2s +1) transfer function is given by G(s) s02s y(t) r(t) Figure Q4: Feedback control system. (a) Design a lead compensator so that the closed-loop system satisfies the following specifications (i) The steady-state error to a unit-ramp input is less than 1/200 (ii) The unit-step response has an overshoot of less than 16% Ts +1 Hint: Compensator, Dc(s)=aTs+ 1, wm-T (18 marks)...
PLEASE DO IN MATLAB
Problem 8 (PID feedback control). This problem is about Proportional-Integral-Derivative feedback control systems. The general setup of the system we are going to look at is given below: e(t) u(t) |C(s) y(t) P(s) r(t) Here the various signals are: signal/system r(t) y(t) e(t) P(s) C(s) и(t) meaning desired output signal actual output signal error signal r(t) y(t) Laplace transform of the (unstable) plant controller to be designed control signal Our goal is to design a controller...
If anyone has Matlab, help me with problem e and f.
Thank you.
Design by Synthesis: It is possible to design the PID so that the overshoot of the feedback system would be zero, furthermore, the feedback system would behave as a first order system. This is done by noting the PID transfer function: 3. PID Controller Plant Gp (s) R(s) C(s) s2+s+1 Note in the above KPK and Ki/Kp may be chosen so that the numerator of the PID...
Question 32 For the open-loop control system described by the block diagram shown below, determine the value of K such that s.s. - 50 when R(s) is a unit step input Controller Process s +1 53 +50s2 - 68 + 20 Y(s)
