Given G(s) = 5/(s^2 + 7s + 4) , is this system overdamped, underdamped, undamped, or critically d...

Question

Question

Given G(s) = 5/(s^2 + 7s + 4) , is this system overdamped, underdamped, undamped, or critically damped?

engineering Mechanical-Engineering

Answer 1

Answer #1

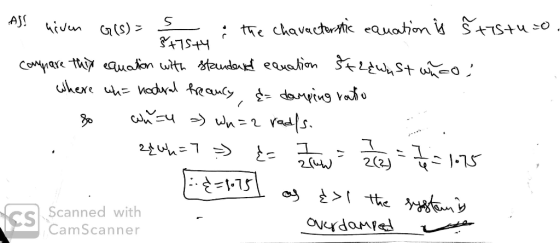

tTe chavacter.yfic equahơny S.*TSH 2(4/-2(2リーマ Scanned with CamScanner

Answer 2

Similar Homework Help Questions

Y(s) 4 3. Consider a second order system_ and undamped natural frequency. Is the system underdamped,...

Y(s) 4 3. Consider a second order system_ and undamped natural frequency. Is the system underdamped, overdamped or critically damped? [5pts] What are the damping ratio U(s) s2+3s +4
5. For each of the following, determine if the system is underdamped, undamped, critically damped or overdamped ad sket...

5. For each of the following, determine if the system is underdamped, undamped, critically damped or overdamped ad sketch the it step response (a) G (s) = (c) G(s)-t 2+68+ (d) G (s) = 36 6. The equation of motion of a rotational mechanical system is given by where θ° and θί are respectively, output and input angular displace- ments. Assuming that all initial conditions are zero, determine (a) the transfer function model. (b) the natural frequency, w natural frequency,...
5. For each of the following, determine if the system is underdamped, undamped, critically damped or...

5. For each of the following, determine if the system is underdamped, undamped, critically damped or overdamped ad sketch the it step response (a) G (s) = (c) G(s)-t 2+68+ (d) G (s) = 36 6. The equation of motion of a rotational mechanical system is given by where θ° and θί are respectively, output and input angular displace- ments. Assuming that all initial conditions are zero, determine (a) the transfer function model. (b) the natural frequency, w natural frequency,...

4. Compute the Bode plot for the following system Determine if this system is overdamped, underdamped,...

4. Compute the Bode plot for the following system Determine if this system is overdamped, underdamped, or critically damped. 1+ jo/10 H(jo)= 100(jo)? +10(jo)+1
Sketch a typical Bode amplitude plot for an underdamped, overdamped, and critically damped 2nd order system....

Sketch a typical Bode amplitude plot for an underdamped, overdamped, and critically damped 2nd order system. Label the range of the plot that might be considered a good response, i.e. the bandwidth and draw all three graphs on same plot.
A system with a closed-loop transfer function of the form: T(S) = 10(s + 7) (s...

A system with a closed-loop transfer function of the form: T(S) = 10(s + 7) (s + 10)(s + 20) has a(n) ......... .... response. critically damped overdamped undamped underdamped

Question 7 The type of the following second order system is: G(s) R(s) C(s) 2+6s+ 9...

Question 7 The type of the following second order system is: G(s) R(s) C(s) 2+6s+ 9 O Undamped Critically damped Overdamped OUnderdamped II OOOO
Problem 4: Given the transfer function, 25pts 25 H(s) S2+6s 25 (a) (b) (c) Fi Find...

Problem 4: Given the transfer function, 25pts 25 H(s) S2+6s 25 (a) (b) (c) Fi Find Please put the units. Find the poles of the system. Is this system overdamped, underdamped, the settling time, peak time, percent overshoot, and rise time. undamped or critically damped. Explain. nd the state space representation in phase variable form of the above transfer function H(s)
The answer key says Underdamped, but i do not understand why. Question 10 In the circuit below, the inductor current, iz(), for t2 0 is known to be, -10t 1012 ve(t)) Vc(t) Find the response curve tha...

The answer key says Underdamped, but i do not understand why. Question 10 In the circuit below, the inductor current, iz(), for t2 0 is known to be, -10t 1012 ve(t)) Vc(t) Find the response curve that best represents the inductor current above iL(t) iL(t) (2) Underdamped (1) Undamped it t) i(t) (4) Overdamped (3) Critically damped (5) None of the above Question 10 In the circuit below, the inductor current, iz(), for t2 0 is known to be, -10t...

2. Compute the ζ and ωd for the damped system with m=1 kg, c=2 kg/s, and...

2. Compute the ζ and ωd for the damped system with m=1 kg, c=2 kg/s, and k=10 N/m. Is the system overdamped, underdamped, or critically damped? Calculate the damped natural frequency. Compute and plot the solution given the initial conditions x0 = 10 mm and v0 = 0 mm/s. (Hint: Use the same steps in Q1. Pay attention to units). 3. Consider the system x’’+ 4x’ + x = 0 for x0 = 1 mm, v0 = 0 mm/s. Is...
