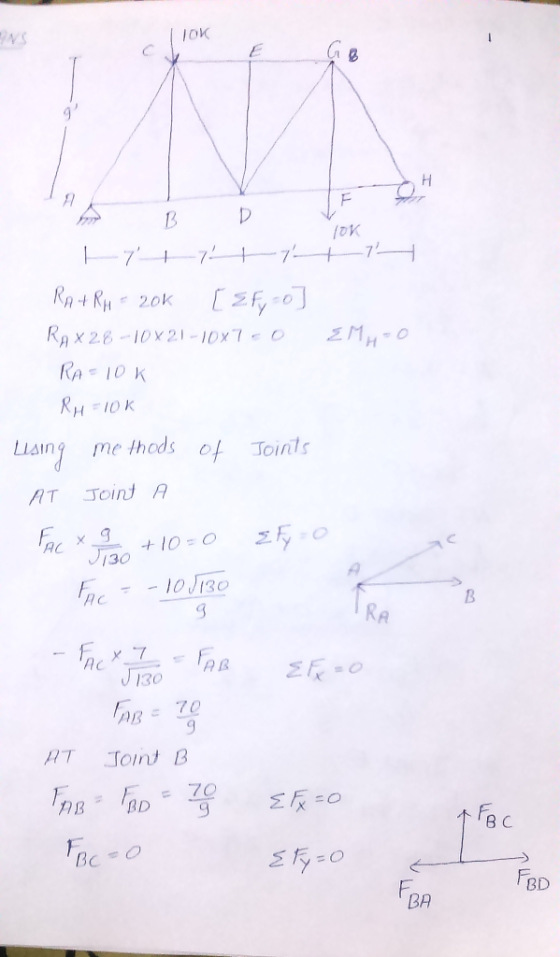

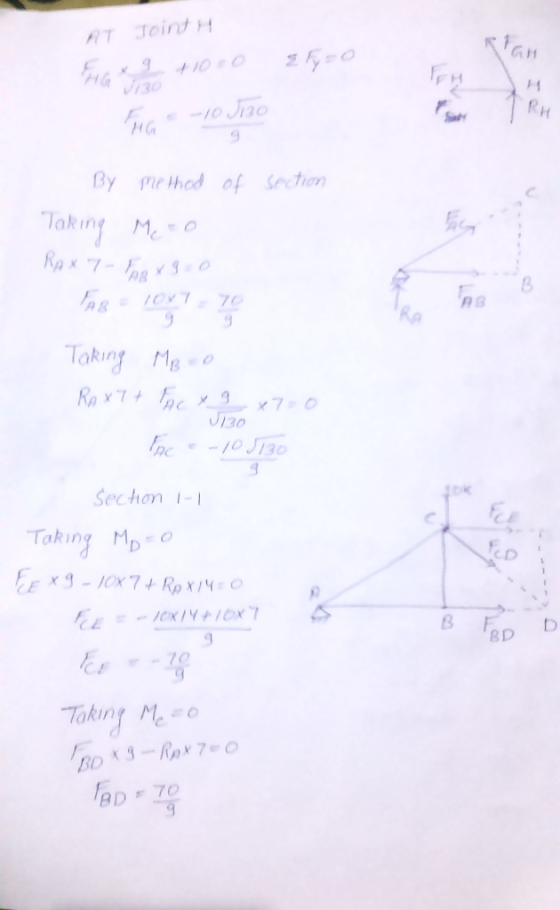

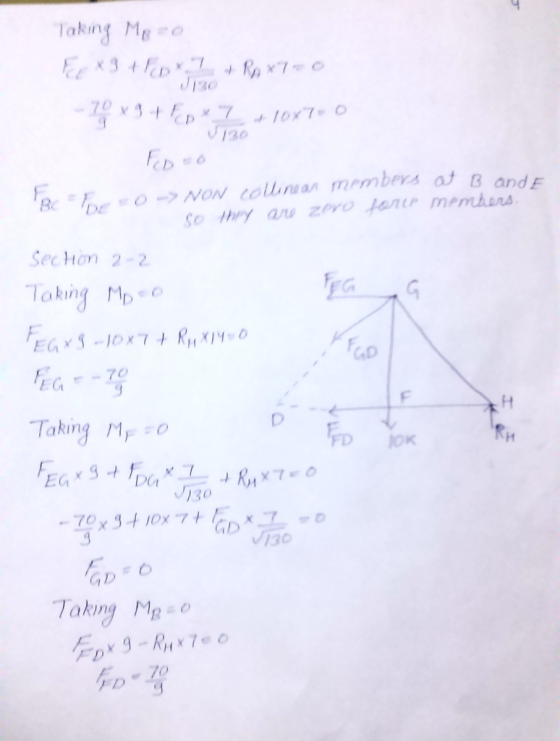

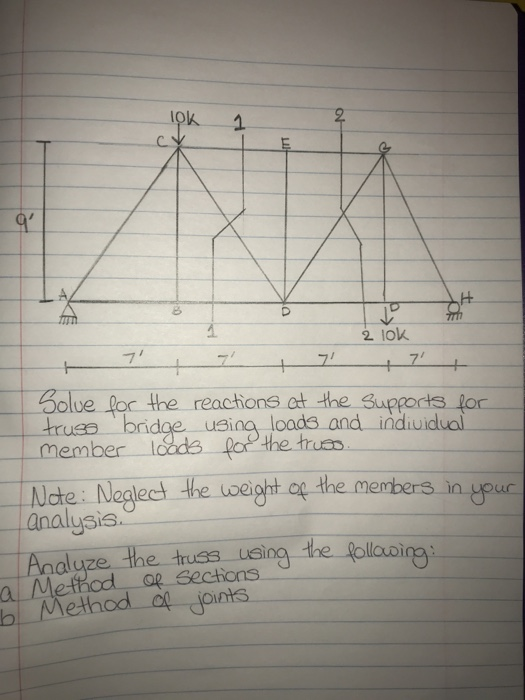

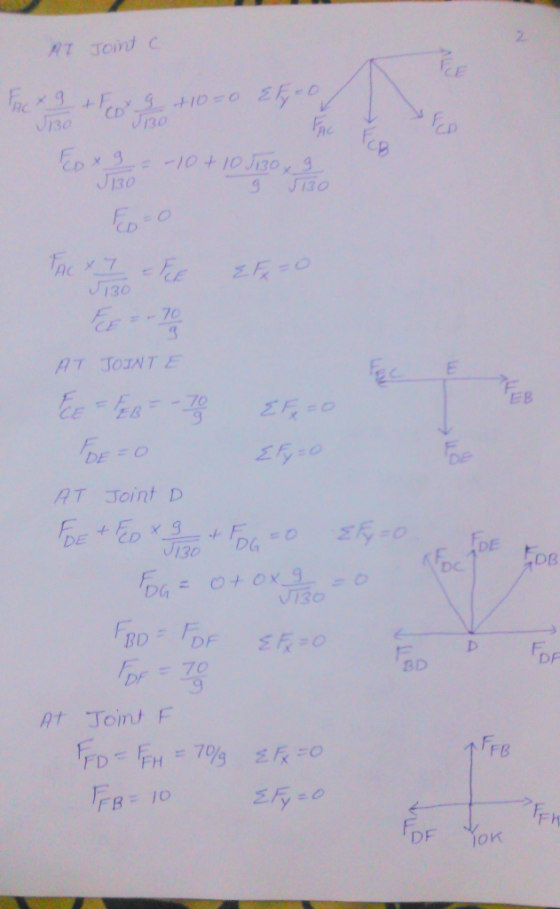

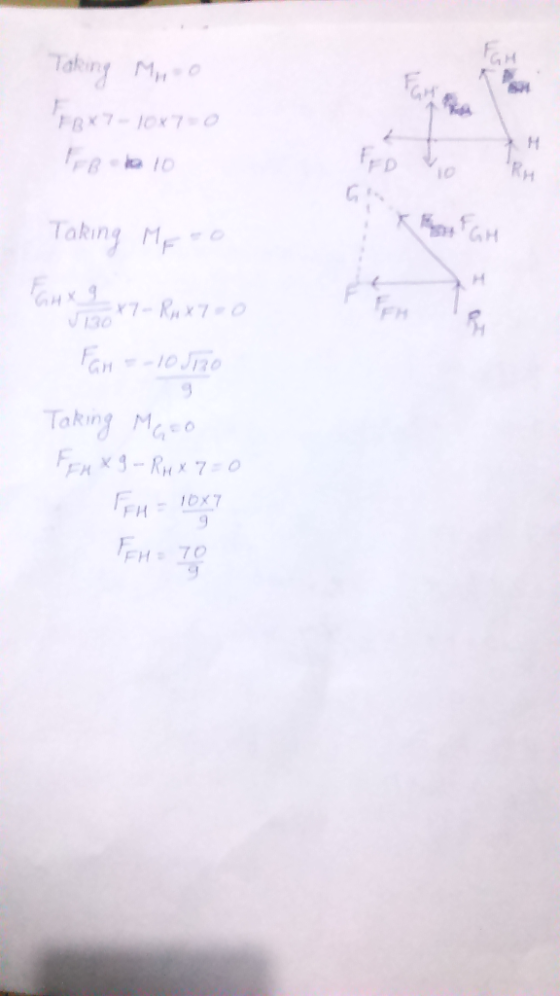

Analyze the truss using the method of sections and the method joints.
Find the force in member GC of the loaded truss using method of sections and of joints and compare your answer. Which elements are in compression and which in tension. Are there any zero force me...
Find the force in member GC of the loaded truss using method of sections and of joints and compare your answer. Which elements are in compression and which in tension. Are there any zero force member? Why or why not. are 1010 2 kips 20° 4 kips 4 kips 2 kips
Find the force in member GC of the loaded truss using method of sections and of joints and compare your answer. Which elements are in compression and which in...
Part B: Numerical Problems (15 points each) 1. For the truss loaded as shown, (a) use the Method of Joints to determine the force in member CF, and then (b) use the Method of Sections to determine...
Part B: Numerical Problems (15 points each) 1. For the truss loaded as shown, (a) use the Method of Joints to determine the force in member CF, and then (b) use the Method of Sections to determine the force in member BC. Show all necessary FBDs and equations of equilibrium. Hint: You must avoid calculating the reactions since the reactions are statically indeterminate. 5 kips
Part B: Numerical Problems (15 points each) 1. For the truss loaded as shown, (a)...
Determine the force In member AB of the truss shown by using the method of joints...
Determine the force In member AB of the truss shown by using the method of joints or sections. X2 if you know: P = 25 KN X4 = 7 m x2 = 14 m y = 12 m Find FAB?
Determin members BC, BD, and ED of the truss and state if these members are in tension or compression using the method of joints and the method of sections.
Determin members BC, BD, and ED of the truss and state if these members are in tension or compression using the method of joints and the method of sections.
Using the method of joints, determine the force in each member of the truss shown. The...
Using the method of joints, determine the force in each member
of the truss shown. The load P = 390 lb.
Using the method of joints, determine the force in each member of the truss shown. The load P= 390 lb. 20 in. 48 in. 15 in. The force in member AB (FAB) is 1800 The force in member BC (FBC) is 1950 The force in member AC (FAC) is 3000 lb. (Tension) lb. (Compression) lb. (Compression)
2. Using the method of joints, determine the force in each member of the truss shown....
2. Using the method of joints, determine the force in each member of the truss shown. State whether each member is in tension or compression.
Using method of joints, determine the force in each member of the truss and state if...
Using method of joints, determine the force in each member of the truss and state if the members are in tension or compression. Assume the truss have no weight.
A roof truss is loaded and supported as shown in Figure 2. The joints are all...
A roof truss is loaded and supported as shown in Figure 2. The joints are all pinned. (a) Determine the support reactions at A and G. (25 marks) (b)Using "Method of joints" find the forces in members AB, AF, GF, CD and DE of the truss. State whether each of these members is in tension or compression. (75 marks) (c) Determine the force in members BC, CF and EF of the truss using "Method of sections". State whether each of...
Using the method of joints, determine the force in each member of the truss shown.
Using the method of joints, determine the force in each member
of the truss shown.
Using the Method of Joints, determine the force in each member of the truss, and state...
Using the Method of Joints, determine the force in each member of the truss, and state if the members are in tension or compression. Set P, = 12 N, P, = 6 N, P: = 9 N. PF в - 3 m + 3m с + 3m-
Find the force in member GC of the loaded truss using method of sections and of joints and compare your answer. Which elements are in compression and which in tension. Are there any zero force member? Why or why not. are 1010 2 kips 20° 4 kips 4 kips 2 kips
Find the force in member GC of the loaded truss using method of sections and of joints and compare your answer. Which elements are in compression and which in...
Part B: Numerical Problems (15 points each) 1. For the truss loaded as shown, (a) use the Method of Joints to determine the force in member CF, and then (b) use the Method of Sections to determine the force in member BC. Show all necessary FBDs and equations of equilibrium. Hint: You must avoid calculating the reactions since the reactions are statically indeterminate. 5 kips
Part B: Numerical Problems (15 points each) 1. For the truss loaded as shown, (a)...
Determine the force In member AB of the truss shown by using the method of joints or sections. X2 if you know: P = 25 KN X4 = 7 m x2 = 14 m y = 12 m Find FAB?
Using the method of joints, determine the force in each member
of the truss shown. The load P = 390 lb.
Using the method of joints, determine the force in each member of the truss shown. The load P= 390 lb. 20 in. 48 in. 15 in. The force in member AB (FAB) is 1800 The force in member BC (FBC) is 1950 The force in member AC (FAC) is 3000 lb. (Tension) lb. (Compression) lb. (Compression)
A roof truss is loaded and supported as shown in Figure 2. The joints are all pinned. (a) Determine the support reactions at A and G. (25 marks) (b)Using "Method of joints" find the forces in members AB, AF, GF, CD and DE of the truss. State whether each of these members is in tension or compression. (75 marks) (c) Determine the force in members BC, CF and EF of the truss using "Method of sections". State whether each of...
Using the method of joints, determine the force in each member
of the truss shown.
Using the Method of Joints, determine the force in each member of the truss, and state if the members are in tension or compression. Set P, = 12 N, P, = 6 N, P: = 9 N. PF в - 3 m + 3m с + 3m-
