Page 13 The function being considered is F(x, y,z) 20,1,3,4,5,6) S. Write the Verilog module repr...

Question

Question

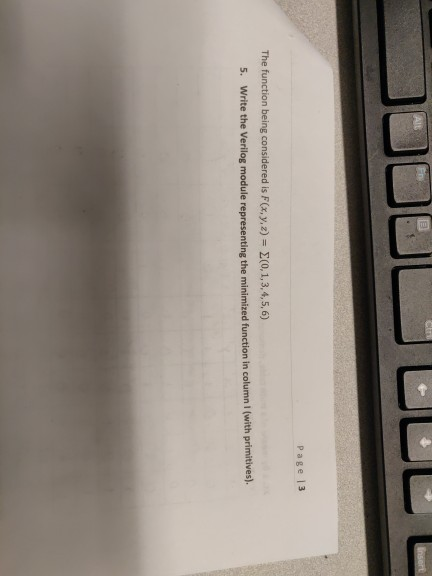

Page 13 The function being considered is F(x, y,z) 20,1,3,4,5,6) S. Write the Verilog module representing the minimized funct

engineering Chemical-Engineering

Answer 1

Answer #1

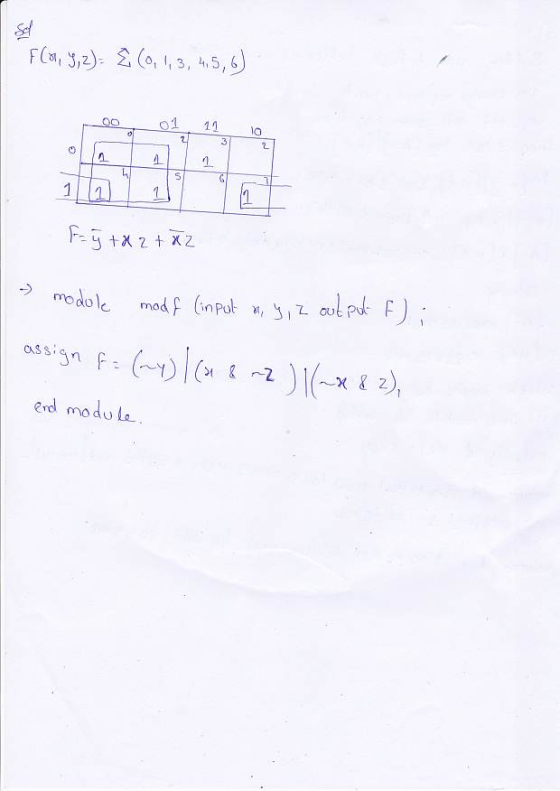

0, ,3, 45, 6 3 1 すーす Pny erd mo du

Answer 2

Similar Homework Help Questions

Page |3 The function being considered is F(x, y,z)- 20,1,3,4,5,6) 5. Write the Verilog module rep...

Page |3 The function being considered is F(x, y,z)- 20,1,3,4,5,6) 5. Write the Verilog module representing the minimized function in column I (with primitives). module mod ( outhut Page |3 The function being considered is F(x, y,z)- 20,1,3,4,5,6) 5. Write the Verilog module representing the minimized function in column I (with primitives). module mod ( outhut
The function being considered is F(x,y,z) = Sigma(0,1,3,4,5,6) 1a. Write the verilog module repre...

The function being considered is F(x,y,z) = Sigma(0,1,3,4,5,6) 1a. Write the verilog module representing the minimized function in column 1 1b. the verilog module representing the minimized function without primitives 1a with primitives if I didnt mention it before
(a) write a Verilog description of the circuit shown below module Circuit (F, A, A_bar, B,...

(a) write a Verilog description of the circuit shown below module Circuit (F, A, A_bar, B, B_bar, C, D_bar); ……….. Endmodule (b) Write a Verilog description of the circuit specified by the following Boolean function: Z = (A + B’)C’(C + D) AB AB CD

Given the function f(x, y, z) = xy +xz write f (x, y, z) as a...

Given the function f(x, y, z) = xy +xz write f (x, y, z) as a sum of min terms and a product of max terms.
Write a Verilog module and testbench for a 3:1 multiplexer that implements the following function. You...

Write a Verilog module and testbench for a 3:1 multiplexer that implements the following function. You can use “case”, “if” or “assign” statements. Grades will be agnostic of your style of implementation (you can choose any of these three styles) and only on the correct functionality. Y = S0’S1’D0 + S0S1’D1+ S1D2 Here, S0 and S1 are the two select signals and D0, D1 and D2 are the three data signals. What does the following snippet of Verilog code do?...
Please implement the function z(a, b, c) in Verilog HDL. Note: Please write your code in...

Please implement the function z(a, b, c) in Verilog HDL. Note: Please write your code in one module. ? = ? × ? + ?, where ? = ?^3 − ? ? = ???? ( 8/?×? , ?) Hint: output wire z; input wire a, b, c

Given the function : F = x + ( (yz)’(x’ + y’+ z’) )’ A) Write...

Given the function : F = x + ( (yz)’(x’ + y’+ z’) )’ A) Write the truth table of F. B) Draw the K-map for F. C) Using the K-map, write the fully simplified Sum-Of-Products expression for F. D) Write the fully simplified product-of-sums expression for F
7. Let f:D + C be a complex variable function, write f(x) = u(x, y) +iv(x,y)...

7. Let f:D + C be a complex variable function, write f(x) = u(x, y) +iv(x,y) where z = x +iy. (a) (9 points) (1) Present an equivalent characterization(with u and v involved) for f being analytic on D. (Just write down the theorem, you don't need to prove it.) (2) Let f(z) = (4.x2 + 5x – 4y2 + 3) +i(8xy + 5y – 1). Show that f is an entrie function. (3) For the same f as above,...
The following logic function is given as a sum of minterms F(W,X,Y,Z) = ∑W,X,Y,Z(2,7,10,13,14) + d(5,6,15)...

The following logic function is given as a sum of minterms F(W,X,Y,Z) = ∑W,X,Y,Z(2,7,10,13,14) + d(5,6,15) a) Draw the K-map for the given function F. b) What is the minimized SOP equation? c) Give all input pairs in the form of WXYZ where a transition between them would create a timing hazard. d) Draw the timing diagram showing the hazard for one of the cases. Assume ALL gate delays are equal. e) Provide the expression of an equivalent logic function...

Using Verilog, write a simulation code that shows the function g(w, x, y, z) = wxyz...

Using Verilog, write a simulation code that shows the function g(w, x, y, z) = wxyz + w’x’y’z+w’x’yz’+w’xy’z’+wx’y’z’ using a 4 to 16 decoder that is built with two 3 to 8 decoders. The 3 to 8 source code I'm using is: module Dec3to8( input[2:0] A, input E, output[7:0] D ); assign D[0] = E & ~A[2] & ~A[1] & ~A[0]; assign D[1] = E & ~A[2] & ~A[1] & A[0]; assign D[2]...
