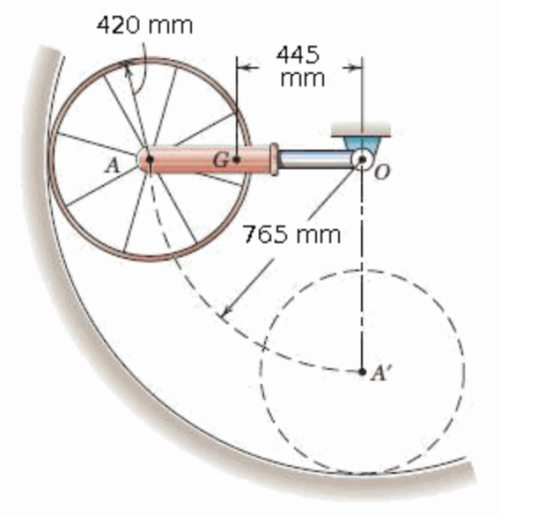

The wheel consists of a 2.6-kg rim of 420-mm radius with hub and
spokes of negligible mass. The wheel is mounted on the 3.7-kg yoke
OA with mass center at G and with a radius of
gyration about O of 495 mm. If the assembly is released
from rest in the horizontal position shown and if the wheel rolls
on the circular surface without slipping, compute the velocity of
point A when it reaches A'.
Answer: vA =
m/s
