Homework Answers
Add Answer to:

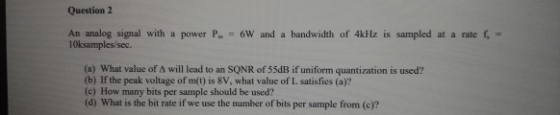

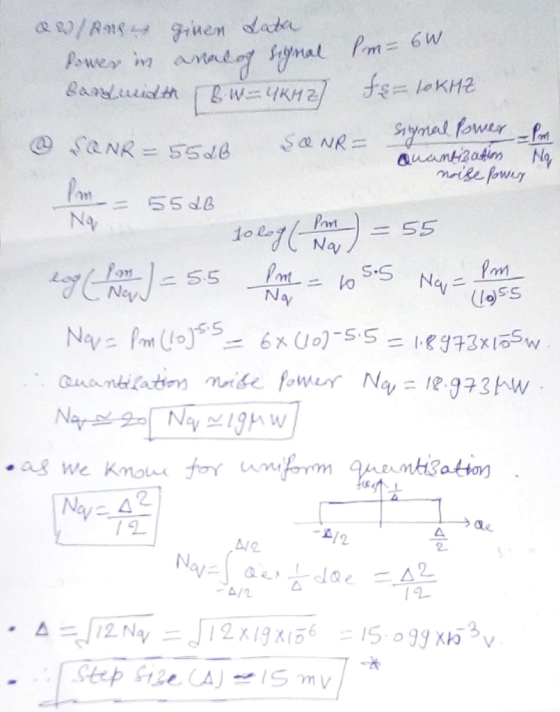

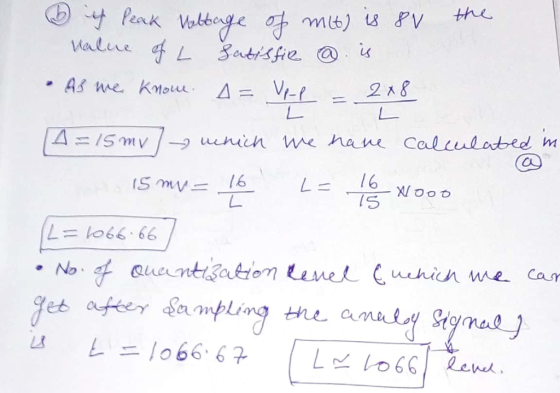

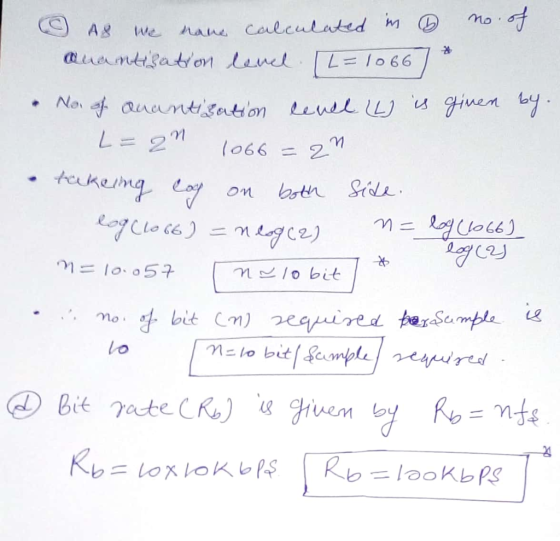

Question 2 An analog signal with a power Pm-GW, and a bandwidth of 4kHz is sampled at a rate f, =...
Answer all parts and show all steps please. 3323 Modern Digital and Analog Communication Question A...
Answer all parts and show all steps please.
3323 Modern Digital and Analog Communication Question A compact disc (CD) records audio signals digitally by using PCM. Assume that the audio signal bandwidth equals 15 kHz (a) If signal is sampled at the Nyquist rate and the samples are uniformly digitized into L 65,536 levels and then binary-coded, determine the number of bits required to encode a sample (b) If the audio signal has average power of 0.1 W and a...
*5. Suppose an analog signal has an absolute bandwidth of 10 KHz. It is sampled at...
*5. Suppose an analog signal has an absolute bandwidth of 10 KHz. It is sampled at the Nyquist rate and converted to a digital signal using an A/D converter such that the output signal-to-quantization noise ratio is at least 40 dB. Using your engineering judgment, choose the number of bits for the A/D converter and determine the bit rate (i.e., the number of bits/sec).
2) An analog video signal with a bandwidth of 5 MHz. is sampled at one and...
2) An analog video signal with a bandwidth of 5 MHz. is sampled at one and half times the Nyquist rate. The signal is then quantized using a uniform quantizer. The resulting output is then sent over a channel with a bandwidth of 94 MHz. using binary PAM with a raised cosine pulse with a roll-off factor of α = 0.25 a) Find the maximum number of quantiozation levels possible (2 Marks) b) Find the resulting Signal-to-Quantization-Noise Ratio (make any...
A low-pass signal with a bandwidth of 250 KHz was sampled at the Nyquist rate using...
A low-pass signal with a bandwidth of 250 KHz was sampled at the Nyquist rate using 512 levels of quantization to generate a PCM signal. a) Calculate the bit rate of the digitized signal b) Calculate the quantization error as SNR(db) c) What is the bandwidth of the PCM signal if it was sent using NRZ line coding?
Exercise 6: Consider an audio signal with an amplitude that ranges over the interval [-10,10] and...
Communication systems theory:
Exercise 6: Consider an audio signal with an amplitude that ranges over the interval [-10,10] and with spectral components limited to the frequency band of 300 Hz to 3300 Hz. The signal is sampled at a rate of 8000 samples/second and used to generate a PCM signal. The signal-to-quantization- noise ratio (SQNR) is required to be maintained at 43.9 dB a) What is the minimum number of uniform quantization levels needed, and what is the minimum number...
Quantization. A continuous time signal is to be sampled at a sampling rate 8kHz. It is...
Quantization. A continuous time signal is to be sampled at a sampling rate 8kHz. It is a voltage signal that varies between 10 and -10 V. We would like the quantization noise variance to be no more than 0.09. a) Design an efficient uniform quantizer that satisfies the quantization noise variance condition. For this tell me the step size, whether it is a mid-tread or mid-riser quantizer. Tell me how many levels your quantizer has. (6 marks) b) The quantized...
Consider an audio signal with spectral components limited to the frequency band 300 to 3300Hz. Assume...
Consider an audio signal with spectral components limited to the frequency band 300 to 3300Hz. Assume that a sampling rate of 8000 samples/sec will be used to generate a PCM signal. Assume that the ratio of peak signal power to average quantization noise power to average quantization noise power at the outputs needs to be 30dB What is the minimum number of uniform quantization levels needed, and what is the minimum number of bits per sample needed. Calculate the system...
Communication System Solve with ALL steps Please QUESTION 3 Briefly explain the following Analog Pulse Modulation...
Communication System
Solve with ALL steps Please
QUESTION 3 Briefly explain the following Analog Pulse Modulation (APM): (i) Pulse Amplitude Modulation (PAM) Pulse Width Modulation (PWM) (iii) Pulse Position Modulation (PPM) (2 marks) (2 marks) (2 marks) b) There are several digital modulations techniques used to modulate digital signal. For a binary data 10111011, sketch the output waveform if the following modulator is used: Amplitude Shift Keying (ASK) (2 marks) Frequency Shift Keying(FSK) (2 marks) (iii) Phase Shift Keying (PSK)...
KS31603 SULIT/CONFIDENTIAL QUESTION 4 (20 marks) (a) A message signal has a peak voltage of 1V...
KS31603 SULIT/CONFIDENTIAL QUESTION 4 (20 marks) (a) A message signal has a peak voltage of 1V and its average power is 125 mW. Design a PCM system (find minimum value of R of the R bit A/D) with uniform quantization to achieve at least a signal to quantization noise ratio of 36 dB. What is the signal to quantization noise ratio obtained in your design? [6 marks] (b) If the signal is sampled at 9kHz in 4(a), what is the...
5.2-1 A compact dise (CD) records audio signals digitlly by using PCM. Let the au bandwidth...
5.2-1 A compact dise (CD) records audio signals digitlly by using PCM. Let the au bandwidth be 15 kHz. (a) If the Nyquist samples are uniformly quantized into L 65,5 (b) If the audio signal has average power of 0.1 W and peak voltage of 1 V, find the resulting (c) Determine the number of binary digits per second (bit/s) required to encode the audico (d) For practical reasons discussed in the text, signals are sampled at a rate well...
Answer all parts and show all steps please.
3323 Modern Digital and Analog Communication Question A compact disc (CD) records audio signals digitally by using PCM. Assume that the audio signal bandwidth equals 15 kHz (a) If signal is sampled at the Nyquist rate and the samples are uniformly digitized into L 65,536 levels and then binary-coded, determine the number of bits required to encode a sample (b) If the audio signal has average power of 0.1 W and a...
*5. Suppose an analog signal has an absolute bandwidth of 10 KHz. It is sampled at the Nyquist rate and converted to a digital signal using an A/D converter such that the output signal-to-quantization noise ratio is at least 40 dB. Using your engineering judgment, choose the number of bits for the A/D converter and determine the bit rate (i.e., the number of bits/sec).
2) An analog video signal with a bandwidth of 5 MHz. is sampled at one and half times the Nyquist rate. The signal is then quantized using a uniform quantizer. The resulting output is then sent over a channel with a bandwidth of 94 MHz. using binary PAM with a raised cosine pulse with a roll-off factor of α = 0.25 a) Find the maximum number of quantiozation levels possible (2 Marks) b) Find the resulting Signal-to-Quantization-Noise Ratio (make any...
Communication systems theory:
Exercise 6: Consider an audio signal with an amplitude that ranges over the interval [-10,10] and with spectral components limited to the frequency band of 300 Hz to 3300 Hz. The signal is sampled at a rate of 8000 samples/second and used to generate a PCM signal. The signal-to-quantization- noise ratio (SQNR) is required to be maintained at 43.9 dB a) What is the minimum number of uniform quantization levels needed, and what is the minimum number...
Quantization. A continuous time signal is to be sampled at a sampling rate 8kHz. It is a voltage signal that varies between 10 and -10 V. We would like the quantization noise variance to be no more than 0.09. a) Design an efficient uniform quantizer that satisfies the quantization noise variance condition. For this tell me the step size, whether it is a mid-tread or mid-riser quantizer. Tell me how many levels your quantizer has. (6 marks) b) The quantized...
Consider an audio signal with spectral components limited to the frequency band 300 to 3300Hz. Assume that a sampling rate of 8000 samples/sec will be used to generate a PCM signal. Assume that the ratio of peak signal power to average quantization noise power to average quantization noise power at the outputs needs to be 30dB What is the minimum number of uniform quantization levels needed, and what is the minimum number of bits per sample needed. Calculate the system...
Communication System
Solve with ALL steps Please
QUESTION 3 Briefly explain the following Analog Pulse Modulation (APM): (i) Pulse Amplitude Modulation (PAM) Pulse Width Modulation (PWM) (iii) Pulse Position Modulation (PPM) (2 marks) (2 marks) (2 marks) b) There are several digital modulations techniques used to modulate digital signal. For a binary data 10111011, sketch the output waveform if the following modulator is used: Amplitude Shift Keying (ASK) (2 marks) Frequency Shift Keying(FSK) (2 marks) (iii) Phase Shift Keying (PSK)...
KS31603 SULIT/CONFIDENTIAL QUESTION 4 (20 marks) (a) A message signal has a peak voltage of 1V and its average power is 125 mW. Design a PCM system (find minimum value of R of the R bit A/D) with uniform quantization to achieve at least a signal to quantization noise ratio of 36 dB. What is the signal to quantization noise ratio obtained in your design? [6 marks] (b) If the signal is sampled at 9kHz in 4(a), what is the...
5.2-1 A compact dise (CD) records audio signals digitlly by using PCM. Let the au bandwidth be 15 kHz. (a) If the Nyquist samples are uniformly quantized into L 65,5 (b) If the audio signal has average power of 0.1 W and peak voltage of 1 V, find the resulting (c) Determine the number of binary digits per second (bit/s) required to encode the audico (d) For practical reasons discussed in the text, signals are sampled at a rate well...
