2) Write ARM Thumb-2 assembly code for the following using IT Block as we learned in class. if (r...

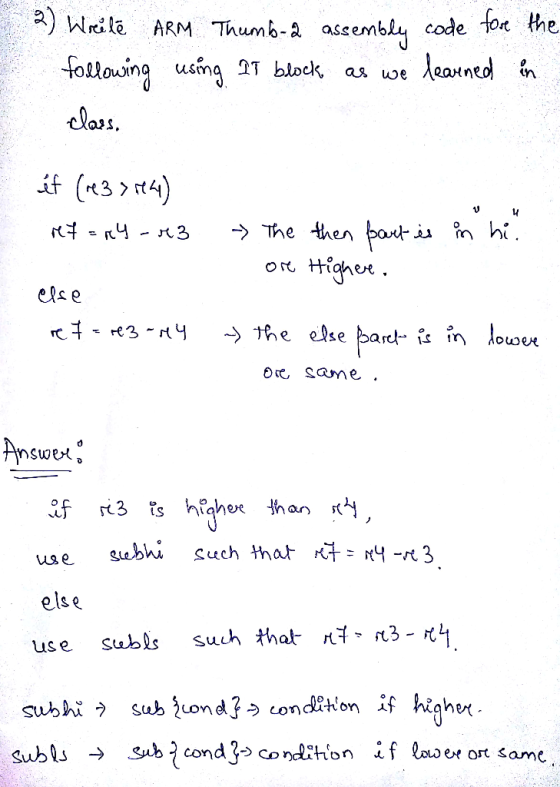

2) Write ARM Thumb-2 assembly code for the following using IT Block as we learned in class.
if (r3 > r4)
r7 = r4 – r3;
else
r7 = r3 – r4;
Homework Answers

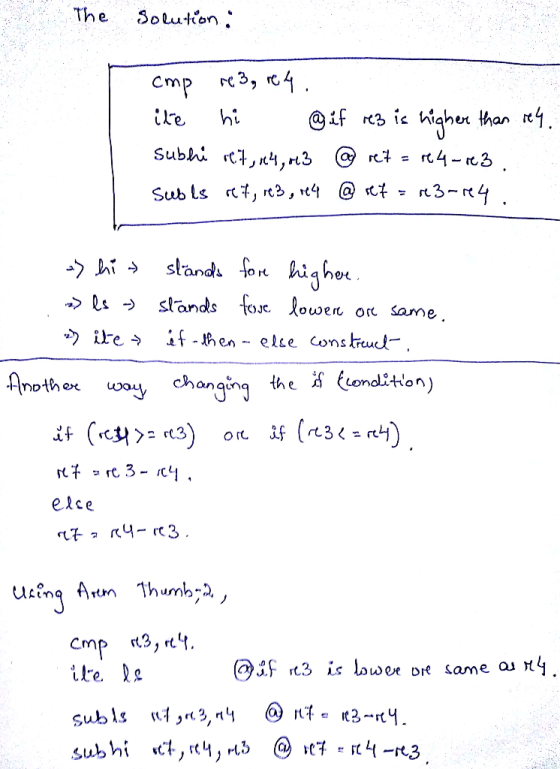

The solution is provided below with explanations.
Thank you. Happy to help you.
