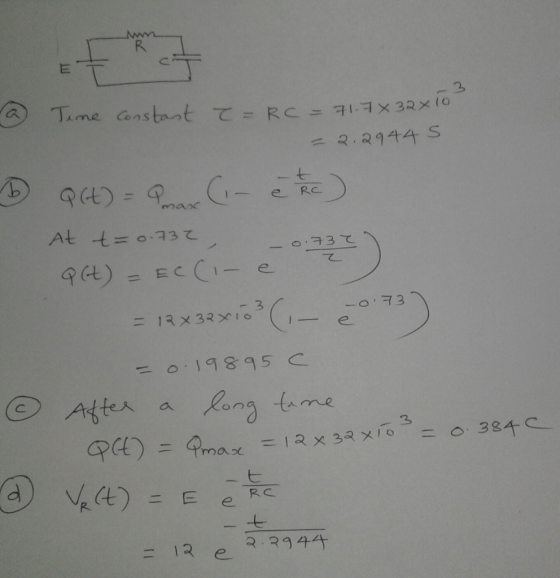

You charge an initially uncharged 32.0 milliFarad capacitor through a 71.7ohm resistor by means of a 12V battery with negligible internal resistance.
You charge an initially uncharged 32.0 milliFarad capacitor through a 71.7ohm resistor by means of a 12V battery with negligible internal resistance. At t-0 the switch is closed to complete the circuit
[2] What is the time constant for this charging:
[2] What is the charge of the capacitor 0.73 time constants after the circuit is closed?
[2] What is the charge of the capacitor after a very long time?
[4] Write the equation describing the voltage across the resistor as a function of time:
Homework Answers
Add Answer to:
You charge an initially uncharged 32.0 milliFarad capacitor through a 71.7ohm resistor by means of a 12V battery with negligible internal resistance.
You charge an initially uncharged 89.9-mF capacitor through a 35.7-? resistor by means of a 9.00-V...
You charge an initially uncharged 89.9-mF capacitor through a 35.7-? resistor by means of a 9.00-V battery having negligible internal resistance. Find the time constant of the circuit. What is the charge of the capacitor 1.09 time constants after the circuit is closed?
You charge an initially uncharged 61.1-mF capacitor through a 45.1-Ohams resistor by means of a 9.00-V...
You charge an initially uncharged 61.1-mF capacitor through a 45.1-Ohams resistor by means of a 9.00-V battery having negligible internal resistance. Find the time constant of the circuit. What is the charge of the capacitor 1.23 time constants after the circuit is closed? What is the charge after a long time? Time constant: Charge: Charge after long time:
You charge an initially uncharged 87.5 -mF capacitor through a 42.7 -Ω resistor by means of...
You charge an initially uncharged 87.5 -mF capacitor through a 42.7 -Ω resistor by means of a 9.00 -V battery having negligible internal resistance. Find the time constant τ of the circuit. τ = s What is the charge Q on the capacitor 1.13 time constants after the circuit is closed? Q = C What is the charge Q 0 after a long amount of time has passed? Q 0 = C
You charge an initially uncharged 81.1-mF capacitor through a 39.1-12 resistor by means of a 9.00-V...
You charge an initially uncharged 81.1-mF capacitor through a 39.1-12 resistor by means of a 9.00-V battery having negligible internal resistance. Find the time constant t of the circuit. t= What is the charge Q on the capacitor 1.17 time constants after the circuit is closed? What is the charge Qo after a long amount of time has passed?
(a) A capacitor has a value of 5 μF. Explain in terms of electric charge what this means. (b) The 5 uF capacitor shown in the circuit below is initially uncharged. The circuit is connected to a compu...
(a) A capacitor has a value of 5 μF. Explain in terms of electric charge what this means. (b) The 5 uF capacitor shown in the circuit below is initially uncharged. The circuit is connected to a computer and switch S is closed. The monitor of the computer displays a graph of current against time as the capacitor charges monitoT charging current/uA 30 20 10 0 . 2,3 4 time s computer The battery has negligible internal resistance. (i) Calculate...
A capacitor of capacitance C= 2.5 μF is initially uncharged. It is connected in series with a switch of negligible resistance
A capacitor of capacitance C= 2.5 μF is initially uncharged. It is connected in series with a switch of negligible resistance, a resistor of resistance R= 14.5 kΩ, and a battery which provides a potential difference of VB = 160 V.Part (a) Immediately after the switch is closed, what is the voltage drop Vc, in volt across the capacitor?Part (b) Immediately after the switch is closed, what is the voltage drop VR, in volt: across the resistor?Part (c) Immediately after...
an initially uncharged 1000-nf capacitor is charged by a 12v battery through a resistance R ....
an initially uncharged 1000-nf capacitor is charged by a 12v battery through a resistance R . the capacitor reaches a charge of 4000 nc in a period of 2 s after the charging began. find the value of R and current through the R
A 6.0 V battery, a 220 W resistor, a 680 µF capacitor (initially uncharged), and a...
A 6.0 V battery, a 220 W resistor, a 680 µF capacitor (initially uncharged), and a switch (initially open) are all connected in series, forming a loop. At t = 0 the switch is closed. (a) Find the initial current in the loop. (b) Find the charge on the capacitor at t = 0.100 s. (c) At what point in time will the voltage across the resistor equal 5.0 V? (d) What will be the maximum energy stored in the...
A 6.40 μF capacitor that is initially uncharged is connected in series with a 4400 Ω...
A 6.40 μF capacitor that is initially uncharged is connected in series with a 4400 Ω resistor and a 502 V emf source with negligible internal resistance. a. Just after the circuit is completed, what is the voltage drop across the capacitor? b. Just after the circuit is completed, what is the voltage drop across the resistor? c. Just after the circuit is completed, what is the charge on the capacitor? d. Just after the circuit is completed, what is...
A battery, a resistor of resistance R, and an initially uncharged capacitor of capacitance C are...
A battery, a resistor of resistance R, and an initially uncharged capacitor of capacitance C are connected in series. At what time does the capacitor voltage reach 90% of the battery voltage? Assume that the battery has no internal resistance.
You charge an initially uncharged 61.1-mF capacitor through a 45.1-Ohams resistor by means of a 9.00-V battery having negligible internal resistance. Find the time constant of the circuit. What is the charge of the capacitor 1.23 time constants after the circuit is closed? What is the charge after a long time? Time constant: Charge: Charge after long time:
You charge an initially uncharged 81.1-mF capacitor through a 39.1-12 resistor by means of a 9.00-V battery having negligible internal resistance. Find the time constant t of the circuit. t= What is the charge Q on the capacitor 1.17 time constants after the circuit is closed? What is the charge Qo after a long amount of time has passed?
(a) A capacitor has a value of 5 μF. Explain in terms of electric charge what this means. (b) The 5 uF capacitor shown in the circuit below is initially uncharged. The circuit is connected to a computer and switch S is closed. The monitor of the computer displays a graph of current against time as the capacitor charges monitoT charging current/uA 30 20 10 0 . 2,3 4 time s computer The battery has negligible internal resistance. (i) Calculate...
