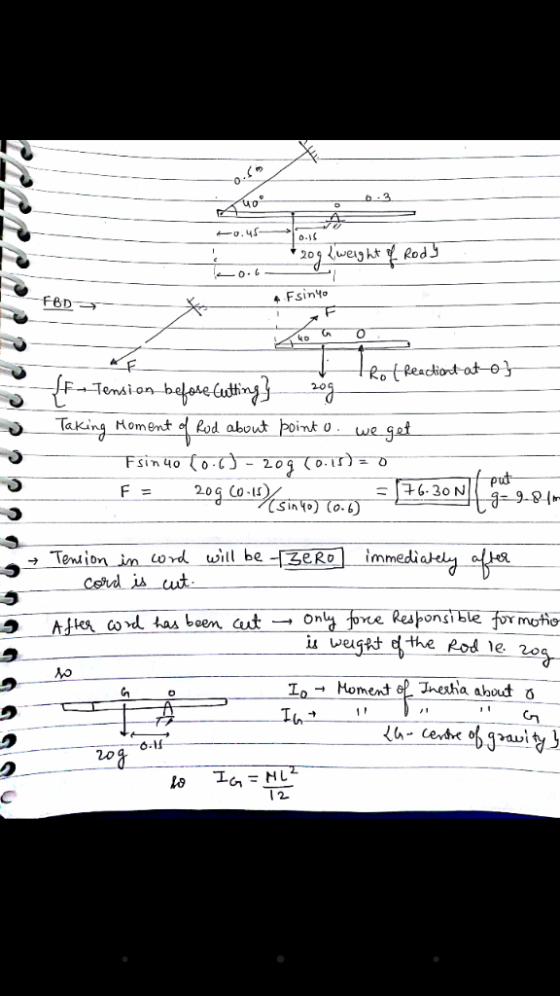

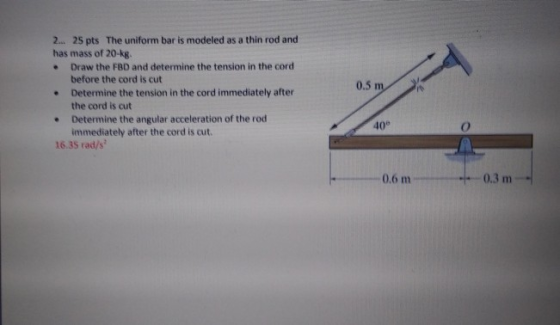

2... 25 pts The uniform bar is modeled as a thin rod and has mass of 20-kg e Draw the FBD and det...
2. The uniform 50-kg bar is held in equilibrium position by cords AC and BD. Determine...
2. The uniform 50-kg bar is held in equilibrium position by cords AC and BD. Determine the following immediately after cord AC is cut. a) Draw FBD of the bar. (5 points) b) Write equations of motion and kinematic relations. Identify how many equations and how many unknowns. (10 points) c) Determine the tension in BD and the angular acceleration of the bar immediately after AC is cut. (10 points) À 3 m-
5. A half section of a uniform thin pipe of mass m 2 kg is at...
5. A half section of a uniform thin pipe of mass m 2 kg is at rest when a force P 40 N is applied at point A as shown. The static and kinetic friction coefficients are μ': 0.15 and μ"01, respectively. Determine (a) the angular acceleration, and (b) the magnitude and direction of the friction force between the thin pipe and the horizontal plane. The distance between the geometric center O and mass center G of the thin pipe...
The uniform thin rod in the figure below has mass M = 4.00 kg and length...
The uniform thin rod in the figure below has mass M =
4.00 kg and length L = 2.21 m and is free to rotate on a
frictionless pin. At the instant the rod is released from rest in
the horizontal position, find the magnitude of the rod's angular
acceleration, the tangential acceleration of the rod's center of
mass, and the tangential acceleration of the rod's free end.
(a)
the rod's angular acceleration (in rad/s2)
rad/s2
(b)
the tangential acceleration...
A uniform rod having a mass of 0.6 kg/m is bent into the shape shown and held at rest in the hori...
A uniform rod having a mass of 0.6 kg/m is bent into the shape shown and held at rest in the horizontal position by means of a pin at O. If4.1 m, determine the angular acceleration of the rod at release (in rad/s2). (2 decimal places)
A uniform rod having a mass of 0.6 kg/m is bent into the shape shown and held at rest in the horizontal position by means of a pin at O. If4.1 m, determine the...
A uniform thin rod of length 50 cm and mass 4.0 kg can rotate in a...
A uniform thin rod of length 50 cm and mass 4.0 kg can rotate in a horizontal plane about a vertical axis through from the right side. The rod into one end of the rod. As viewed from above, the bullet's path makes an angle of θ 60° with the rod (as shown in the figure below)If the bullet lodges in the rod and the angular velocity of the rod is 10 rad/s immediately after the collision, what is the...
A uniform, thin bar has a mass of 2 kg and a length of 0.50m. Initially,...
A uniform, thin bar has a mass of 2 kg and a length of 0.50m. Initially, the bar is balanced horizontally about a pin through its center of mass and orthogonal to its length. A small mass of 0.75 kg is placed on the left end and the system begins to spin. Find: a) the initial angular acceleration of the system b) the maximum angular velocity of the system c) the torque on the system when it has reached the...
The uniform slender rod contains a 4-kg uniform rod with the center of mass at point...
The uniform slender rod contains a 4-kg uniform rod with the center of mass at point G is suspended from a hinge at C. The rod is at rest in a vertical position when point B is subjected to a force of P = 75 N, and a moment M = 50 Nm, the length of the rod is 1 m and r = 0.225m. Determine the reactions at the pin C and the initial angular acceleration of the rod....
FBD The 12-kg rod AB is pinned to the 40-kg disk. If the disk is given...
FBD
The 12-kg rod AB is pinned to the 40-kg disk. If the disk is given an angular velocity wp = 100 rad/s while the rod is held stationary, and the assembly is then released, determine the angular velocity of the rod after the disk has stopped spinning relative to the rod due to frictional resistance at the bearing B. Motion is in the horizontal plane. Neglect friction at the pin A. 2 m wp A 0.3 m
A thin uniform rod (length = 1.77 m, mass = 3.13 kg) is pivoted about a...
A thin uniform rod (length = 1.77 m, mass = 3.13 kg) is pivoted about a horizontal frictionless pin through one of its ends. The moment of inertia of the rod through this axis is (1/3)mL2. The rod is released when it is 58.5° below the horizontal. What is the angular acceleration of the rod at the instant it is released? (in rad/s^2) A: 2.712 B: 3.173 C: 3.713 D: 4.344 E: 5.082 F: 5.946 G: 6.957 H: 8.140
A uniform thin rod of length 0.65 m and mass 3.4 kg can rotate in a horizontal plane about a vert...
A uniform thin rod of length 0.65 m and mass 3.4 kg can rotate
in a horizontal plane about a vertical axis through its center. The
rod is at rest when a 3.8 g bullet traveling in the rotation plane
is fired into one end of the rod. As viewed from above, the
bullet's path makes angle θ = 60° with the rod. If the
bullet lodges in the rod and the angular velocity of the rod is
11.0 rad/s...
2. The uniform 50-kg bar is held in equilibrium position by cords AC and BD. Determine the following immediately after cord AC is cut. a) Draw FBD of the bar. (5 points) b) Write equations of motion and kinematic relations. Identify how many equations and how many unknowns. (10 points) c) Determine the tension in BD and the angular acceleration of the bar immediately after AC is cut. (10 points) À 3 m-
5. A half section of a uniform thin pipe of mass m 2 kg is at rest when a force P 40 N is applied at point A as shown. The static and kinetic friction coefficients are μ': 0.15 and μ"01, respectively. Determine (a) the angular acceleration, and (b) the magnitude and direction of the friction force between the thin pipe and the horizontal plane. The distance between the geometric center O and mass center G of the thin pipe...
The uniform thin rod in the figure below has mass M =
4.00 kg and length L = 2.21 m and is free to rotate on a
frictionless pin. At the instant the rod is released from rest in
the horizontal position, find the magnitude of the rod's angular
acceleration, the tangential acceleration of the rod's center of
mass, and the tangential acceleration of the rod's free end.
(a)
the rod's angular acceleration (in rad/s2)
rad/s2
(b)
the tangential acceleration...
A uniform rod having a mass of 0.6 kg/m is bent into the shape shown and held at rest in the horizontal position by means of a pin at O. If4.1 m, determine the angular acceleration of the rod at release (in rad/s2). (2 decimal places)
A uniform rod having a mass of 0.6 kg/m is bent into the shape shown and held at rest in the horizontal position by means of a pin at O. If4.1 m, determine the...
A uniform thin rod of length 50 cm and mass 4.0 kg can rotate in a horizontal plane about a vertical axis through from the right side. The rod into one end of the rod. As viewed from above, the bullet's path makes an angle of θ 60° with the rod (as shown in the figure below)If the bullet lodges in the rod and the angular velocity of the rod is 10 rad/s immediately after the collision, what is the...
The uniform slender rod contains a 4-kg uniform rod with the center of mass at point G is suspended from a hinge at C. The rod is at rest in a vertical position when point B is subjected to a force of P = 75 N, and a moment M = 50 Nm, the length of the rod is 1 m and r = 0.225m. Determine the reactions at the pin C and the initial angular acceleration of the rod....
FBD
The 12-kg rod AB is pinned to the 40-kg disk. If the disk is given an angular velocity wp = 100 rad/s while the rod is held stationary, and the assembly is then released, determine the angular velocity of the rod after the disk has stopped spinning relative to the rod due to frictional resistance at the bearing B. Motion is in the horizontal plane. Neglect friction at the pin A. 2 m wp A 0.3 m
A uniform thin rod of length 0.65 m and mass 3.4 kg can rotate
in a horizontal plane about a vertical axis through its center. The
rod is at rest when a 3.8 g bullet traveling in the rotation plane
is fired into one end of the rod. As viewed from above, the
bullet's path makes angle θ = 60° with the rod. If the
bullet lodges in the rod and the angular velocity of the rod is
11.0 rad/s...
