Link CD is rotating at 5 rad/s. What is the angular velocity and angular acceleration of link AB?

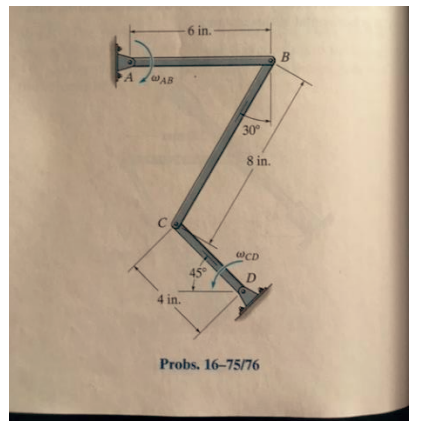

6 in. 30° 8 in. 45° 4 in. Probs. 16-75/76

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

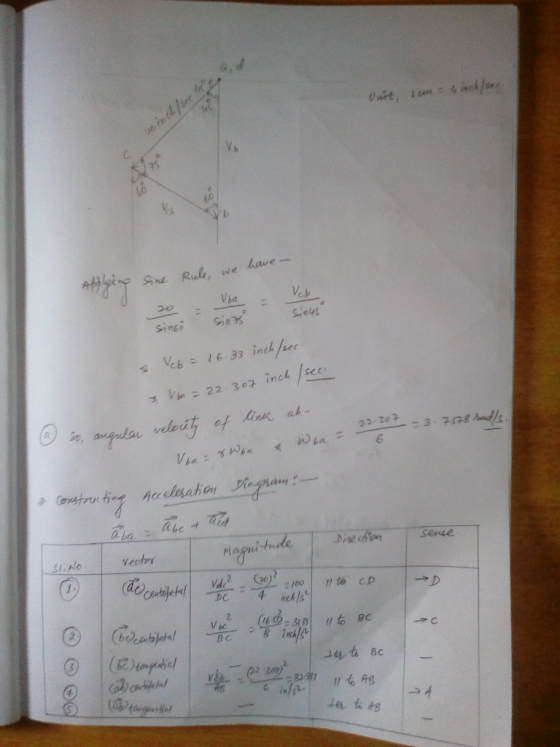

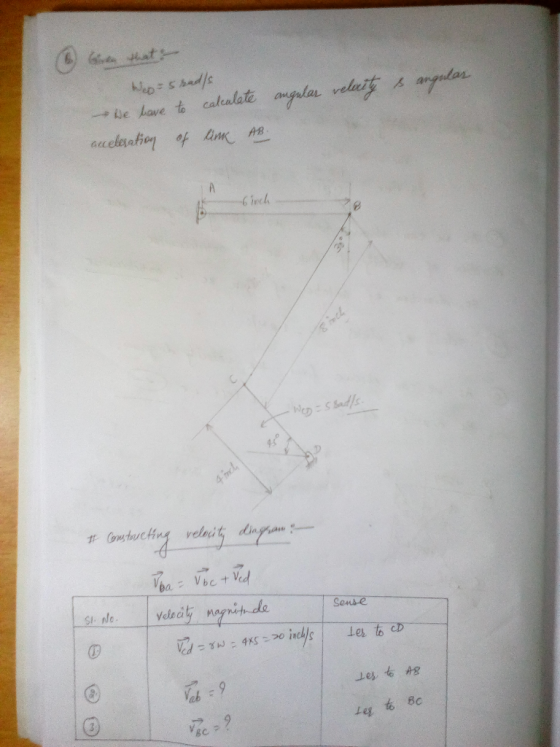

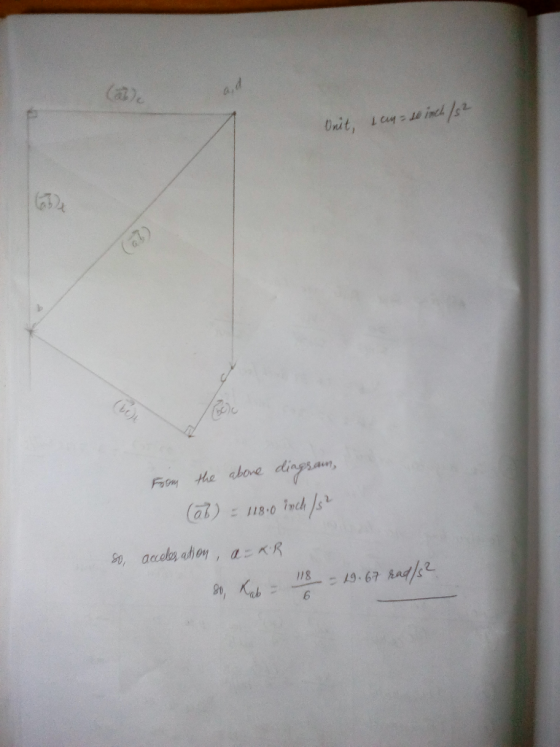

6 inch SenseVi Ve b velbi 6 ant :- Vd2 . (30)234 e dhoe disay 19.67 Rads 2 6First draw the velocity diagram following the mentioned steps. Now carefully follow the steps for drawing acceleration diagram. As the link CD is rotated with constant angular velocity, its tangential component of acceleration will be zero. Draw the diagram following all the steps using proper scale. Measure the acceleration of link AB & calculate the value of angular acceleration of link AB.

0 0
Add a comment
Know the answer?
Add Answer to:
Link CD is rotating at 5 rad/s. What is the angular velocity and angular acceleration of link AB?
