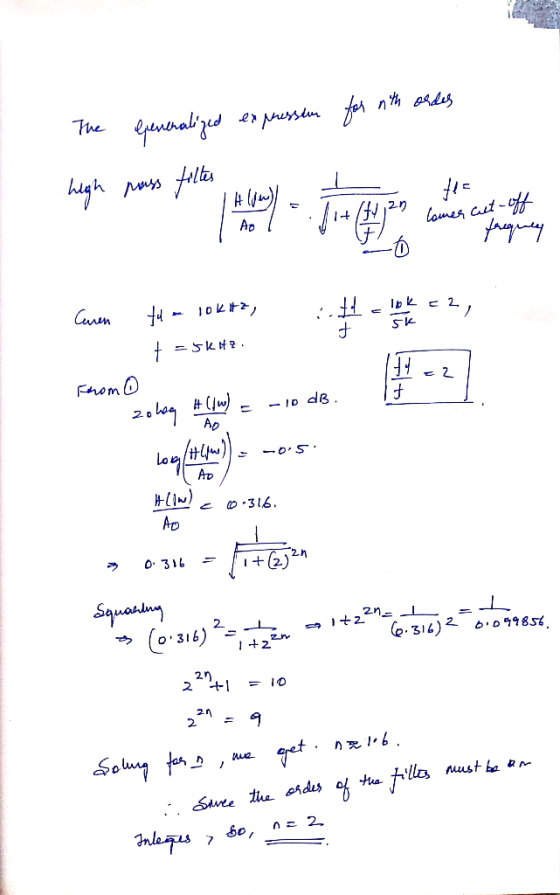

Using a high pass filter with a cutoff frequency of 10 kHz, we wish to achieve an attenuation greater than 10 dB at 5 kHz. What is the minimum order of the filter required to achieve this attenuation?
Using a high pass filter with a cutoff frequency of 10 kHz, we wish to achieve an attenuation gre...
Using the windowing functions discussed in class, design a
low-pass FIR filter with a cutoff frequency of 2 kHz, a minimum
stop band attenuation of 40 dB, and a transition width of 200Hz.
The sampling frequency is 10kHz.
1. Using the windowing functions discussed in class, design a low-pass FIR filter with a cutoff frequency of 2 kHz, a minimum stop band attenuation of 40 dB, and a transition width of 200 Hz. The sampling frequency is 10 kHz 2....
Design a low-pass filter (LPF) has pass-band frequency fP = 100 kHz, maximum attenuation in passband Amax
= 2 dB, stop-band frequency fS = 120 kHz, minimum attenuation in stop-band Amin = 60 dB. a/ Calculate the minimum order N for Chebyshev filter and the corresponding minimum stop-band
attenuation? b/ Calculate the minimum order N of low-pass B
Problem 3) (15 points) An RC filter is designed with a cutoff frequency of 100 Hz. If a low-pass first order filter is used, determine the attenuation (Attenuation %, and Attenuation(dB)) of the filtered analog signal at 50, 75 and 200 Hz. (use k -1) o Determine the order of the filter if magnitude ratio of <0.01 is needed at 200 Hz.
Problem 3) (15 points) An RC filter is designed with a cutoff frequency of 100 Hz. If a...
Design a low pass filter with a cutoff frequency of 1 kHz +/- 100 Hz and a gain of 16.0 dB +/- 1.0 dB in the passband. The R2 and C components of the filter control the cutoff frequency, and are inversely proportional to the cutoff frequency. So decreasing the resistance or capacitance will increase the cutoff frequency. The R1 and Rf components determine the gain of the amplifier. Increasing the value of Rf will increase the gain. Increasing the...
Design a fourth order low pass Butterworth filter with a cutoff frequency of 2 kHz and draw the frequency response for the filter.
An IIR low-pass filter is to be designed to meet the following specifications: 1. Passband cutoff frequency of 0.22 π with a passband ripple less than 0.01.2. Stopband cutoff frequency of 0.24 π with a stopband attenuation greater than 40 dB.(i) Determine the filter order required to meet these specifications if a digital butterworth filter is designed using the bilinear transformation. (ii) Determine the filter order required to meet these specifications if a digital chebyshev filter is designed using the bilinear transformation.
2. A high pass filter is built using a 5k resistor and 200 pF capacitor. a. Draw the circuit b. Calculate the time constant for the circuit c. What is the critical frequency (in rad/s) for the circuit? d. What is the critical frequency (in Hz) for the circuit? e. What is the attenuation for a 30 kHz signal? f. What is the attenuation for a 300 kHz signal? g. What is the 30 kHz attenuation in dB?
(a) Design a first–order high-pass filter with a cutoff frequency fc = 1.5 kHz and a passband gain |Ao| = 20dB, using a capacitor C = 47nF. Include a compensation resistor and determine its value. (b) Sketch the frequency response for the circuit (i.e., magnitude vs. frequency and phase vs. frequency). On the magnitude response plot, indicate the cutoff frequency, bandpass gain, and bandstop rolloff slope. On the phase response plot, indicate the approximate value of the phase angle at...
13.6 Design a first-order active high-pass filter with a response of +12 dB in the high-frequency limit and -20 dB at 1.2 kHz. Let C 1 nF
13.6 Design a first-order active high-pass filter with a response of +12 dB in the high-frequency limit and -20 dB at 1.2 kHz. Let C 1 nF
Design a low-pass Butterworth filter of the lowest order possible that has a cutoff frequency of 100 kHz and a no more then -30 dB at 600kHz. Use as many 50Ω resistors as possible. Draw the circuit.
