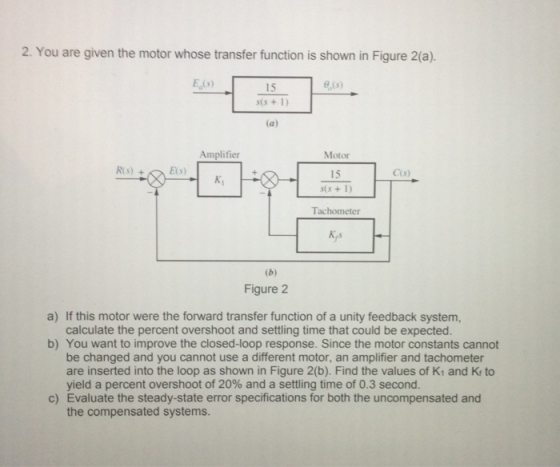

2. You are given the motor whose transfer function is shown in Figure 2(a). s) e(s) Amplifier Mot...
A unity feedback system with the forward transfer function G (s) = s(s+2)(s15) is operating with ...
A unity feedback system with the forward transfer function G (s) = s(s+2)(s15) is operating with a closed-loop step response that has 15% overshoot. Do the following: a) Evaluate the settling time for a unit step input b) Design a PD control to yield a 15% overshoot but with a threefold reduction in settling time; c) Evaluate the settling time, overshoot, and steady-state error with the PD control.
A unity feedback system with the forward transfer function G (s) =...
A unity feedback system with the forward transfer function G)2)(s +5) is operating with a closed-...
A unity feedback system with the forward transfer function G)2)(s +5) is operating with a closed-loop step response that has 15% overshoot. Do the following: a) Evaluate the settling time for a unit step input; b) Design a PD control to yield a 15% overshoot but with a threefold reduction in settling time; c) Evaluate the settling time, overshoot, and steady-state error with the PD control.
A unity feedback system with the forward transfer function G)2)(s +5) is operating with...
A transfer function is given by G(s) H (s) = s(s+1 ) (s + 8 (a)...
A transfer function is given by
G(s) H (s) = s(s+1 ) (s + 8 (a) Design a Lead Compensator or PD controller such that the closed loop has the following specifications: Percent Overshoot (PO) 16 % Rise time 0.4 sec-2.16 ? + 0.6 (b) Determine the velocity error constant (Kv) of the uncompensated and compensated systems.
A plant with the transfer function Gp(s)-- with unity feedback has the root locus shown in the figure below: (s+2)(s+4) Root Locus 1.5 C(s) 0.5 0.5 1.5 .3 Real Axis (seconds) (a) Determine K of G...
A plant with the transfer function Gp(s)-- with unity feedback has the root locus shown in the figure below: (s+2)(s+4) Root Locus 1.5 C(s) 0.5 0.5 1.5 .3 Real Axis (seconds) (a) Determine K of Gp(s) if it is desired that the uncompensated system has a 10% OS (overshoot) to a step input. (4 points) a 5% overshoot and a peak time Tp 3.1 meets the requirements described in part (b) and achieves zero steady state (b) Compute the desired...
Consider the sontrol system shown in the figure below: R(S) + E(s) C(s) K (s +...
Consider the sontrol system shown in the figure below: R(S) + E(s) C(s) K (s + 4)(s + 6) g) Sketch the uncompensated system root locus showing all details. (5 Points) h) Find the dominant closed loop poles of the uncompensated system to operate with a 16.3% overshoot and peak time tp = 0.7255 (make sure to show this point on the Root Locus) (5 Points) (s+z) Now we want to design a PI compensator of the form to increase...
Problem (2) The open loop transfer function of a feedback system is given by к H...
Problem (2) The open loop transfer function of a feedback system is given by к H (s) = 10 G(s) = ------ - s (s +1) (0.2 s+ 1) Design a controller such that the closed loop system will have a settling time less than 1.0 sec. and a percentage overshoot (PO) less than 5%. Draw the root locus plots of the uncompensated and compensated systems using Matlab.
The transfer function of the given physical system is Gp(s)-1000 The physical system is controlle...
The transfer function of the given physical system is Gp(s)-1000 The physical system is controlled with a unity-feedback system shown below, R(s) + Where Ge is the controller transfer function 3. Lead/Lag Compensator (a) Design a compensator such that the settling time of the compensated system T < 0.02 sec (Use 5% definition), and maximum overshoot of the compensated system is Mp 20%. Clearly explain all your steps. (b) Build a simulink model and use the compensator you designed above....
A unity feedback system with the forward transfer function G(s)=K/(s+1)(s+3)(s+6) is operating wi...
A unity feedback system with the forward transfer function
G(s)=K/(s+1)(s+3)(s+6) is operating with a closed-loop step
response that has 15% overshoot. Do the following:
a) Evaluate the steady-state error for a unit step input
b) Design a PI control to reduce the steady-state error to zero
without affecting its transient response
c) Evaluate the steady-state error and overshoot for a unit step
input to your compensated system
A unity feedback system with the forward transfer function G(s) is operating with...
54. A metering pump is a pump capable of delivering a precise flow rate of fluid. Most metering p...
54. A metering pump is a pump capable of delivering a precise flow rate of fluid. Most metering pumps consist of an electric motor that varies the strike length of a shaft, allowing more or less fluid to pass through its body. The control of such a valve has been considered and the open-loop transfer function of the pump was found to be (Yu, 2011) 1.869 Y(s) s2 12.32s 0.4582 where the output of the system, Y(s), represents the liquid...
4) A unity feedback control system shown in Figure 2 has the following controller and process with the transfer functions: m(60100c Prs(s +10(s+7.5) a) Obtain the open- and closed-loop transfer f...
4) A unity feedback control system shown in Figure 2 has the following controller and process with the transfer functions: m(60100c Prs(s +10(s+7.5) a) Obtain the open- and closed-loop transfer functions of the system. b) Obtain the stability conditions using the Routh-Hurwitz criterion. e) Setting by trial-and-error some values for Kp, Ki, and Ko, obtain the time response for minimum overshoot and minimum settling time by Matlab/Simulink. Y(s) R(s) E(s) Fig. 2: Unity feedback control system
4) A unity feedback...
A unity feedback system with the forward transfer function G (s) = s(s+2)(s15) is operating with a closed-loop step response that has 15% overshoot. Do the following: a) Evaluate the settling time for a unit step input b) Design a PD control to yield a 15% overshoot but with a threefold reduction in settling time; c) Evaluate the settling time, overshoot, and steady-state error with the PD control.
A unity feedback system with the forward transfer function G (s) =...
A unity feedback system with the forward transfer function G)2)(s +5) is operating with a closed-loop step response that has 15% overshoot. Do the following: a) Evaluate the settling time for a unit step input; b) Design a PD control to yield a 15% overshoot but with a threefold reduction in settling time; c) Evaluate the settling time, overshoot, and steady-state error with the PD control.
A unity feedback system with the forward transfer function G)2)(s +5) is operating with...
A transfer function is given by
G(s) H (s) = s(s+1 ) (s + 8 (a) Design a Lead Compensator or PD controller such that the closed loop has the following specifications: Percent Overshoot (PO) 16 % Rise time 0.4 sec-2.16 ? + 0.6 (b) Determine the velocity error constant (Kv) of the uncompensated and compensated systems.
A plant with the transfer function Gp(s)-- with unity feedback has the root locus shown in the figure below: (s+2)(s+4) Root Locus 1.5 C(s) 0.5 0.5 1.5 .3 Real Axis (seconds) (a) Determine K of Gp(s) if it is desired that the uncompensated system has a 10% OS (overshoot) to a step input. (4 points) a 5% overshoot and a peak time Tp 3.1 meets the requirements described in part (b) and achieves zero steady state (b) Compute the desired...
Consider the sontrol system shown in the figure below: R(S) + E(s) C(s) K (s + 4)(s + 6) g) Sketch the uncompensated system root locus showing all details. (5 Points) h) Find the dominant closed loop poles of the uncompensated system to operate with a 16.3% overshoot and peak time tp = 0.7255 (make sure to show this point on the Root Locus) (5 Points) (s+z) Now we want to design a PI compensator of the form to increase...
Problem (2) The open loop transfer function of a feedback system is given by к H (s) = 10 G(s) = ------ - s (s +1) (0.2 s+ 1) Design a controller such that the closed loop system will have a settling time less than 1.0 sec. and a percentage overshoot (PO) less than 5%. Draw the root locus plots of the uncompensated and compensated systems using Matlab.
The transfer function of the given physical system is Gp(s)-1000 The physical system is controlled with a unity-feedback system shown below, R(s) + Where Ge is the controller transfer function 3. Lead/Lag Compensator (a) Design a compensator such that the settling time of the compensated system T < 0.02 sec (Use 5% definition), and maximum overshoot of the compensated system is Mp 20%. Clearly explain all your steps. (b) Build a simulink model and use the compensator you designed above....
A unity feedback system with the forward transfer function
G(s)=K/(s+1)(s+3)(s+6) is operating with a closed-loop step
response that has 15% overshoot. Do the following:
a) Evaluate the steady-state error for a unit step input
b) Design a PI control to reduce the steady-state error to zero
without affecting its transient response
c) Evaluate the steady-state error and overshoot for a unit step
input to your compensated system
A unity feedback system with the forward transfer function G(s) is operating with...
54. A metering pump is a pump capable of delivering a precise flow rate of fluid. Most metering pumps consist of an electric motor that varies the strike length of a shaft, allowing more or less fluid to pass through its body. The control of such a valve has been considered and the open-loop transfer function of the pump was found to be (Yu, 2011) 1.869 Y(s) s2 12.32s 0.4582 where the output of the system, Y(s), represents the liquid...
4) A unity feedback control system shown in Figure 2 has the following controller and process with the transfer functions: m(60100c Prs(s +10(s+7.5) a) Obtain the open- and closed-loop transfer functions of the system. b) Obtain the stability conditions using the Routh-Hurwitz criterion. e) Setting by trial-and-error some values for Kp, Ki, and Ko, obtain the time response for minimum overshoot and minimum settling time by Matlab/Simulink. Y(s) R(s) E(s) Fig. 2: Unity feedback control system
4) A unity feedback...
