2. Let’s create a module that defines a 4:1 mux by instantiating three 2:1 muxes. Assume the module we are going to instantiate has the interface definition:

(a) First, write the code that would go inside the module defined above.
(b) Now define the interface for your 4:1 mux. You can call the module anything you want and use any variable names you want. But think about how many inputs you’ll need.
(c) Now instantiate three instances of the 2:1 mux defined above and connect the ports correctly to match your interface definition in part (b). Note that you may also need to define a few internal wires.
a) code for the 2to1 mux. Here I am using dataflow modelling.
module mux2to1(w0,w1,s,f);
input w0,w1,s;
output f;
assign f=(s&w0)|((~s)&w1);
endmodule
b) now we have to instantiate the mux4to1 by mux2to1 Note that 4to1 multiplexer contains 4 inputs 2 select lines so total 6 inputs. 1 output. Instantiating the module
module mux4to1(a,b,c,d,s0,s1,z);
input a,b,c,d,s0,s1;
output z;
wire z1,z2;

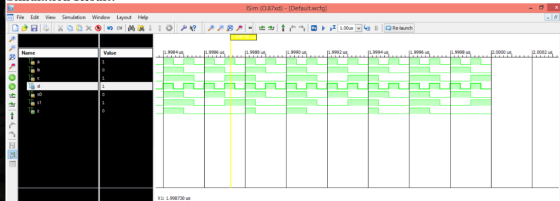

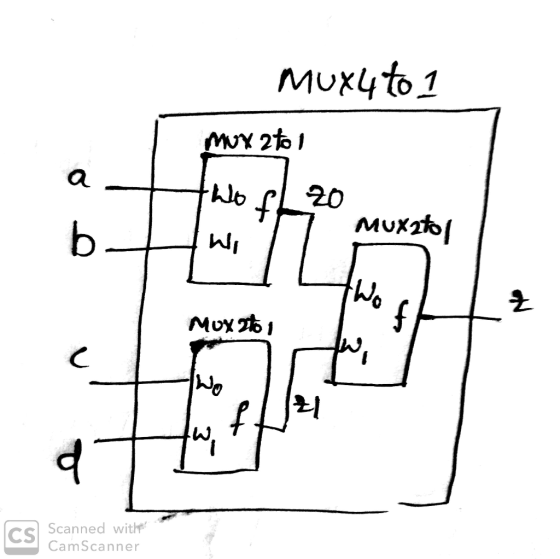

Here wire z1 and z2 are used to interconnect the mux2to1 instances inside mux 4 to1.
C)
module mux4to1(a,b,c,d,s0,s1,z);
input a,b,c,d,s0,s1;
output z;
wire z1,z2;
mux2to1 m1(a,b,s0,z1);
mux2to1 m2(c,d,s0,z2);
mux2to1 m3(z1,z2,s1,z);
endmodule


2. Let’s create a module that defines a 4:1 mux by instantiating three 2:1 muxes. Assume the modu...
2. Let's create a module that defines a 4:1 mux by instantiating three 2:1 muxes. Assume the module we are going to instantiate has the interface definition: module mux2tol (wO,wl,s,f); input w0, wl, s; output f (a) First, write the code that would go inside the module defined above. (b) Now define the interface for your 4:1 mux. You can call the le anything you wa But think about how many inputs you'll need.
2. Let's create a module that...
