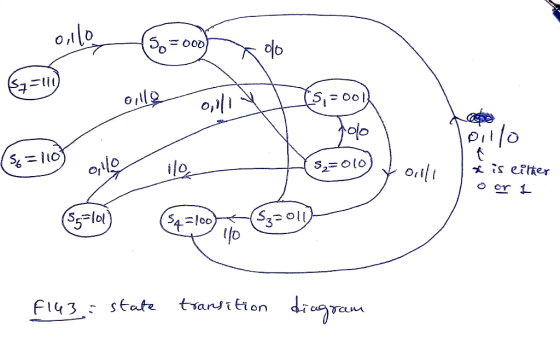

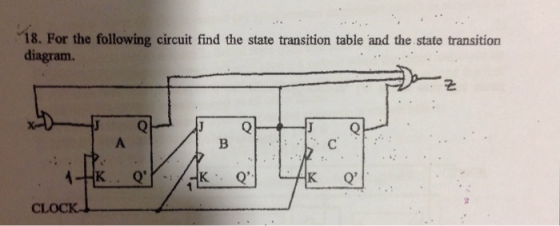

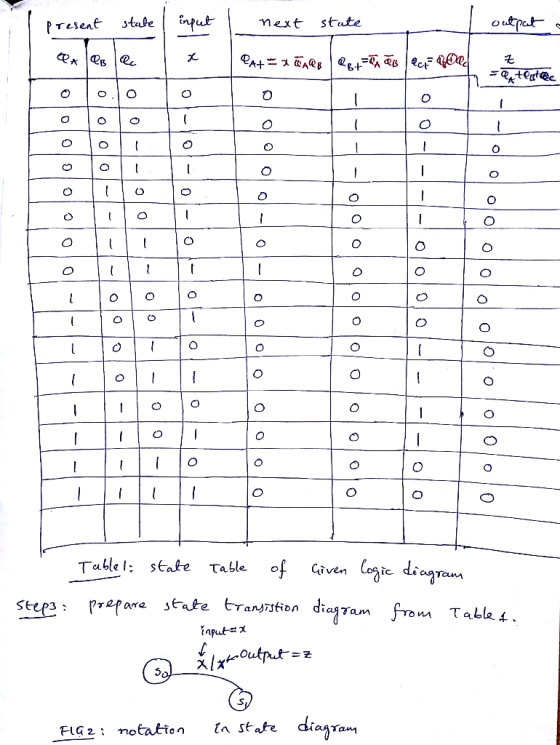

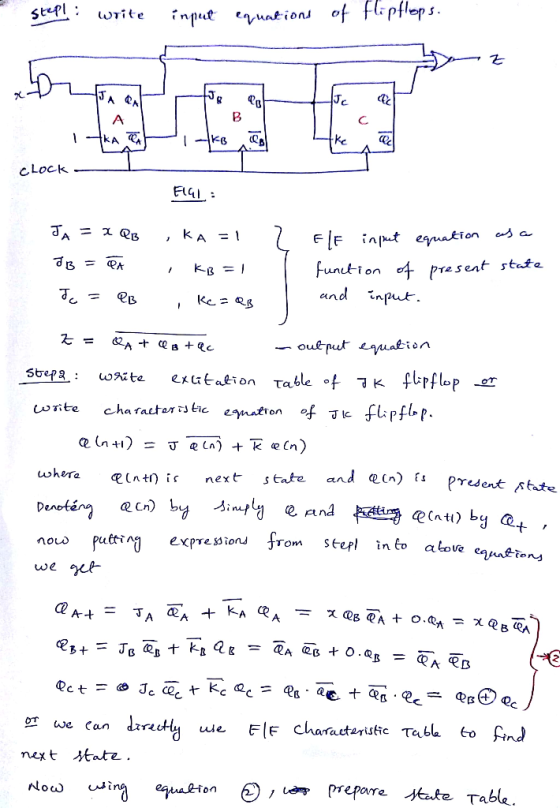

18. For the following circuit find the state transition table and the stato transition diagram. K...
26. A counter is shown below. К, Q, К Q, CLOCK a. Find the state transition table and diagram. b....
26. A counter is shown below. К, Q, К Q, CLOCK a. Find the state transition table and diagram. b. Show the count sequence. c. What is the mod of this counter? d. Modify this circuit so that it becomes self-starting, ie. it can enter the count sequence from any initial state. 13
26. A counter is shown below. К, Q, К Q, CLOCK a. Find the state transition table and diagram. b. Show the count sequence. c. What is...
Analyze the sequential counter circuit shown in figure 5.1. Derive the state transition table and diagram....
Analyze the sequential counter
circuit shown in figure 5.1. Derive the state transition table and
diagram.
7400 U1 7400 01. 74x73 U2 4 74x13 76x73 Ly, QH122 7400 Reset (11) Clock - Figure 5.1
Write the state input and output equations, the state table, and the state diagram for the following circuit. Include at least one complete solution to each equation used to develop the truth tab...
Write the state input and output equations, the state table, and the state diagram for the following circuit. Include at least one complete solution to each equation used to develop the truth table. K is connected to a logic high (1). Consider both CLK's to be connected to a proper external clock Also consider the PRE and CLR of each flip-flop to be connected to a logic high (1). 1. PRE PRE J Q K Q CLR dlo- CLR
Write...
state transition diagram and table
Draw the state transition diagram and table for the circuit attached in the file.4a.JPG
Derive the input equations, state table and state diagram of the following sequential circuit.
Derive the input equations, state table and state diagram of
the following sequential
circuit.
2 2 Clock
For the following sequential circuit, construct a transition table and graph for the circuit. Attach files...
For the following sequential circuit, construct a transition
table and graph for the circuit. Attach files for both.
Forthe following sequential circuit, construct a transition table and graph for the circuit. Attach files for both. 7. B' CK J Clock Clock X" X" A B'
17. The circuit below is given. Find the state table and diagram, Ap 17. The circuit below is given. Find the state table and diagram, Ap
17. The circuit below is given. Find the state table and diagram, Ap
17. The circuit below is given. Find the state table and diagram, Ap
5) (Optional) Design a circuit realizing the transition table shown below. Table 1: Pre-Lab Transition Table...
5) (Optional) Design a circuit realizing the transition table shown below. Table 1: Pre-Lab Transition Table PRESENT STATE NEXT STATE A B C NA NB NC 0 0 0 1 0 0 0 0 1 1 0 0 0 1 0 1 0 1 0 1 1 0 0 1 1 0 0 1 1 0 1 0 1 1 1 0 1 1 0 1 1 1 1 1 1 0 1 1 Find expressions for: NA = NB...
Implement a moore serial adder. show state transition diagram, truth table, K-maps and grouping gate level...
Implement a moore serial adder. show state transition diagram, truth table, K-maps and grouping gate level implementation and implement using d-flip flops
Implement a mealy serial adder. show state transition diagram, truth table, K-maps and grouping gate level...
Implement a mealy serial adder. show state transition diagram, truth table, K-maps and grouping gate level implementation and implement using d-flip flops
26. A counter is shown below. К, Q, К Q, CLOCK a. Find the state transition table and diagram. b. Show the count sequence. c. What is the mod of this counter? d. Modify this circuit so that it becomes self-starting, ie. it can enter the count sequence from any initial state. 13
26. A counter is shown below. К, Q, К Q, CLOCK a. Find the state transition table and diagram. b. Show the count sequence. c. What is...
Analyze the sequential counter
circuit shown in figure 5.1. Derive the state transition table and
diagram.
7400 U1 7400 01. 74x73 U2 4 74x13 76x73 Ly, QH122 7400 Reset (11) Clock - Figure 5.1
Write the state input and output equations, the state table, and the state diagram for the following circuit. Include at least one complete solution to each equation used to develop the truth table. K is connected to a logic high (1). Consider both CLK's to be connected to a proper external clock Also consider the PRE and CLR of each flip-flop to be connected to a logic high (1). 1. PRE PRE J Q K Q CLR dlo- CLR
Write...
Derive the input equations, state table and state diagram of
the following sequential
circuit.
2 2 Clock
For the following sequential circuit, construct a transition
table and graph for the circuit. Attach files for both.
Forthe following sequential circuit, construct a transition table and graph for the circuit. Attach files for both. 7. B' CK J Clock Clock X" X" A B'
17. The circuit below is given. Find the state table and diagram, Ap
17. The circuit below is given. Find the state table and diagram, Ap
