Please solve and plot using MATLAB:

A monochromatic light that passes through a Incident slit produces on a screen a diffraction pattern light consisting of bright and dark fringes. The intensity of the bright fringes, I, as a function of 0 can be calculated by: πα where a asin θ , λ is the light wave length, a is the width of the slits. Make a 3-D plot (shown) that shows the rela- tive intensity 11/mas as a function of θ for -20°<θ 200, and a function of a/λ for 2 a/A 10. 0.8 02 0.4

Please solve and plot with MATLAB: Thank you

Answer 1

`Hey,

Note: Brother in case of any queries, just comment in box I would be very happy to assist all your queries

clc
clear all
alam=2:0.1:10;
th=-20:1:20;
[ALAM,TH]=meshgrid(alam,th)
al=pi*ALAM.*sind(TH);
Z=(sin(al)./al).^2;
surf(ALAM,TH,Z);
xlabel('a/\lambda');
ylabel('\theta(deg)');
zlabel('Relative intensity')

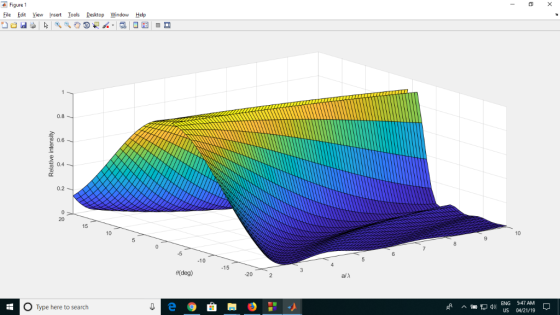

Figure 1 File Edit View srt Iools Desktop Window Help 0.8 0.6 0.4 0.2 20 10 10 15 θ(deg) alX -20 ENG 5:47 AM US 04/21/19 O Type here to search

Kindly revert for any queries

Thanks.
