Homework Answers
In case you have any doubts or you did not understand any step please feel free to ask your doubts in the comments section. I would be happy to clarify it
Add Answer to:

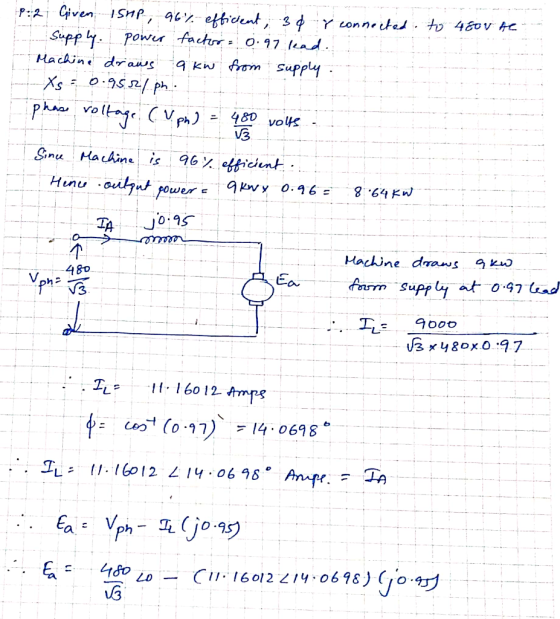

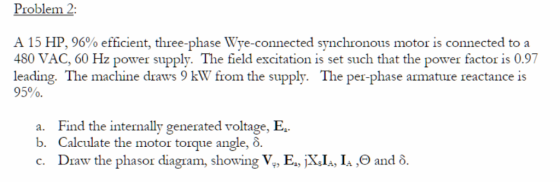

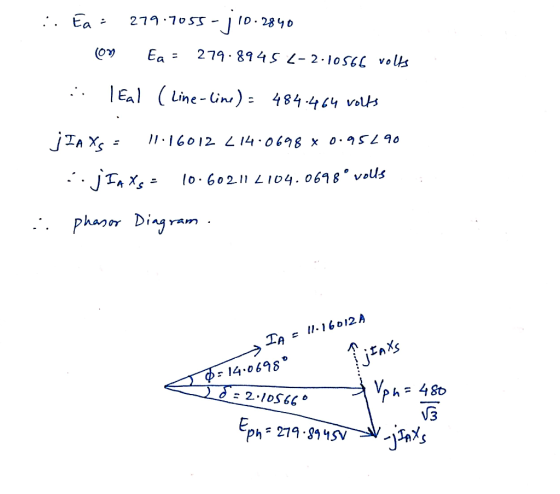

Problem 2 A 15 HP, 96% efficient, three-phase Wye-connected synchronous motor is connected to a 4...
Question # 2(25 points) A three phase, 200 hp, 2400 V, 60 Hz, 4 pole, Y connected synchronous mot...
Question # 2(25 points) A three phase, 200 hp, 2400 V, 60 Hz, 4 pole, Y connected synchronous motor has a reactance of 12 Ω phase and a negligible armature resistance. The motor draws 150 KW at a power angle of-18 Determine a) The synchronous speed of the motor in rpm. (3 points) b) The excitation voltage E. (5 points) c) The line current. (5 points) d) The motor power factor. (3 points) e) The pull-out torque (maximum torque). (3...
(Question 1): (4pts) A three-phase, 2300-V, 60-Hz, 10-pole, A-connected cylindrical rotor synchronous motor has a synchronous...
(Question 1): (4pts) A three-phase, 2300-V, 60-Hz, 10-pole, A-connected cylindrical rotor synchronous motor has a synchronous reactance of 4.0 82/phase. The armature resistance may be neglected. It is connected to 2300-V source and drives a system with its excitation set to give a PF of 0.9-leading when the power is 500-kW. (a) Sketch the phasor diagram of this motor. (b) Calculate the armature current. (c) Calculate the excitation voltage and torque angle. (d) If the load torque is increased by...
Question 4 (10 marks) A) A 10-kVA, 415-V, three phase, Y -connected synchronous generator has a...
Question 4 (10 marks) A) A 10-kVA, 415-V, three phase, Y -connected synchronous generator has a winding resistance of 0.3 Q and a synchronous reactance of 0.6 on a per phase basis. Determine its voltage regulation at full load when the power factor is (a) 75% lagging and (b) 75% leading. B) (10 marks) A 220-V, Y-connected, three-phase, synchronous motor has a synchronous reactance of 4 O/phase and negligible armature winding resistance. At a certain load the motor takes 7.5...
Be detailed please A three-phase y-connected 2300 V, 60 Hz round-rotor synchronous motor has a synchronous...
Be detailed please
A three-phase y-connected 2300 V, 60 Hz round-rotor synchronous motor has a synchronous reactance of 2 ohms/ phase and negligible armature resistance. 2. If the motor takes a line current of 350 A operating at a leading pf of 0.8. calculate the armature voltage and the power angle. If the motor is operating on load with a load angle of-20%, and the excitation is adjusted so that the armature voltage is equal in magnitude to the terminal...
A 208 V, star-connected, 3-phase synchronous motor has a synchronous reactance of 4 ohms/phase and negligible...
A 208 V, star-connected, 3-phase synchronous motor has a synchronous reactance of 4 ohms/phase and negligible armature winding resistance. At a certain load, the motor takes 7.2 kW at 0.8 pf lagging. If the power developed by the motor remains the same while the excitation voltage is increased by 50% by raising the field excitation, determine (a) the new armature current and (b) the new power factor.
4. Explain the conditions for parallel operation of synchronous generators. A three phase, wye connected, synchronous...
4. Explain the conditions for parallel operation of synchronous generators. A three phase, wye connected, synchronous generator is rated 150 MW, 0.85 lagging power factor, 12.6 kV, 60 Hz, and 1800 rpm. Each winding has an armature resistance of 0.0522 and a synchronous reactance of 0.612. Draw the phasor diagram with values, show torque angle and determine the induced voltage for the condition of rated load. (30 pts)
e connected, 60 Hz, 2300 volt, sik pole, cylindrical rotor synchronous motor is 8 leading, neglect losses, the synchronous reactance is 2.5 sand Fp ohm/phase. Determine: (a) Synchronous speed-n, (...
e connected, 60 Hz, 2300 volt, sik pole, cylindrical rotor synchronous motor is 8 leading, neglect losses, the synchronous reactance is 2.5 sand Fp ohm/phase. Determine: (a) Synchronous speed-n, (b) Developed torque in Horsepower Tmec (c) Active Power-P (d) Apparent Power-S (e) Reactive Power-Q (f) Draw the Power Triangle (g) Armature current-1 (h) Excitation voltage-Et (i) Power Angle-8 U) Draw the phasor diagram
e connected, 60 Hz, 2300 volt, sik pole, cylindrical rotor synchronous motor is 8 leading, neglect losses,...
b) A 1MW, 3300 V, 50 Hz, wye-connected, 3-ф, twenty four-pole, synchronous motor has a synchronous...
b) A 1MW, 3300 V, 50 Hz, wye-connected, 3-ф, twenty four-pole, synchronous motor has a synchronous reactance of 3.24 2 per phase. Assume armature resistance is negligible. This machine is connected to an infinite bus-bars at 3300 V. Its field excitation is adjusted to provide P.F-1 at rated load Calculate: 0 the internal generated voltage EA and armature current la at rated conditions (S marks) ii) the maximum power and torqu e that the motor can deliver with its Ir...
4. A 150 kVA, 460-V, four pole, 60 Hz, three phase, Y-connected synchronous motor operatingat rat...
Electric Machines - Synchronous Motors
4. A 150 kVA, 460-V, four pole, 60 Hz, three phase, Y-connected synchronous motor operatingat rated load has a synchronous reactance of 1.20 ohms/phase, determine: Excitation voltage Power angle Pull-out torque Draw a phasor diagram a. b. c. d.
4. A 150 kVA, 460-V, four pole, 60 Hz, three phase, Y-connected synchronous motor operatingat rated load has a synchronous reactance of 1.20 ohms/phase, determine: Excitation voltage Power angle Pull-out torque Draw a phasor diagram a....
A 3-phase, 6,600 V, 6,000 HP, star-connected synchronous motor is to be operated under rated conditions...
A 3-phase, 6,600 V, 6,000 HP, star-connected synchronous motor is to be operated under rated conditions with full-load and a leading power factor of 0.50. The rotational losses under this conditions are 130 kW and may be taken as constant. The effective resistance and reactance are 0.085 and 2.90 ohms respectively. What is the value of the excitation voltage under this condition?
Question # 2(25 points) A three phase, 200 hp, 2400 V, 60 Hz, 4 pole, Y connected synchronous motor has a reactance of 12 Ω phase and a negligible armature resistance. The motor draws 150 KW at a power angle of-18 Determine a) The synchronous speed of the motor in rpm. (3 points) b) The excitation voltage E. (5 points) c) The line current. (5 points) d) The motor power factor. (3 points) e) The pull-out torque (maximum torque). (3...
(Question 1): (4pts) A three-phase, 2300-V, 60-Hz, 10-pole, A-connected cylindrical rotor synchronous motor has a synchronous reactance of 4.0 82/phase. The armature resistance may be neglected. It is connected to 2300-V source and drives a system with its excitation set to give a PF of 0.9-leading when the power is 500-kW. (a) Sketch the phasor diagram of this motor. (b) Calculate the armature current. (c) Calculate the excitation voltage and torque angle. (d) If the load torque is increased by...
Question 4 (10 marks) A) A 10-kVA, 415-V, three phase, Y -connected synchronous generator has a winding resistance of 0.3 Q and a synchronous reactance of 0.6 on a per phase basis. Determine its voltage regulation at full load when the power factor is (a) 75% lagging and (b) 75% leading. B) (10 marks) A 220-V, Y-connected, three-phase, synchronous motor has a synchronous reactance of 4 O/phase and negligible armature winding resistance. At a certain load the motor takes 7.5...
Be detailed please
A three-phase y-connected 2300 V, 60 Hz round-rotor synchronous motor has a synchronous reactance of 2 ohms/ phase and negligible armature resistance. 2. If the motor takes a line current of 350 A operating at a leading pf of 0.8. calculate the armature voltage and the power angle. If the motor is operating on load with a load angle of-20%, and the excitation is adjusted so that the armature voltage is equal in magnitude to the terminal...
4. Explain the conditions for parallel operation of synchronous generators. A three phase, wye connected, synchronous generator is rated 150 MW, 0.85 lagging power factor, 12.6 kV, 60 Hz, and 1800 rpm. Each winding has an armature resistance of 0.0522 and a synchronous reactance of 0.612. Draw the phasor diagram with values, show torque angle and determine the induced voltage for the condition of rated load. (30 pts)
e connected, 60 Hz, 2300 volt, sik pole, cylindrical rotor synchronous motor is 8 leading, neglect losses, the synchronous reactance is 2.5 sand Fp ohm/phase. Determine: (a) Synchronous speed-n, (b) Developed torque in Horsepower Tmec (c) Active Power-P (d) Apparent Power-S (e) Reactive Power-Q (f) Draw the Power Triangle (g) Armature current-1 (h) Excitation voltage-Et (i) Power Angle-8 U) Draw the phasor diagram
e connected, 60 Hz, 2300 volt, sik pole, cylindrical rotor synchronous motor is 8 leading, neglect losses,...
b) A 1MW, 3300 V, 50 Hz, wye-connected, 3-ф, twenty four-pole, synchronous motor has a synchronous reactance of 3.24 2 per phase. Assume armature resistance is negligible. This machine is connected to an infinite bus-bars at 3300 V. Its field excitation is adjusted to provide P.F-1 at rated load Calculate: 0 the internal generated voltage EA and armature current la at rated conditions (S marks) ii) the maximum power and torqu e that the motor can deliver with its Ir...
Electric Machines - Synchronous Motors
4. A 150 kVA, 460-V, four pole, 60 Hz, three phase, Y-connected synchronous motor operatingat rated load has a synchronous reactance of 1.20 ohms/phase, determine: Excitation voltage Power angle Pull-out torque Draw a phasor diagram a. b. c. d.
4. A 150 kVA, 460-V, four pole, 60 Hz, three phase, Y-connected synchronous motor operatingat rated load has a synchronous reactance of 1.20 ohms/phase, determine: Excitation voltage Power angle Pull-out torque Draw a phasor diagram a....
