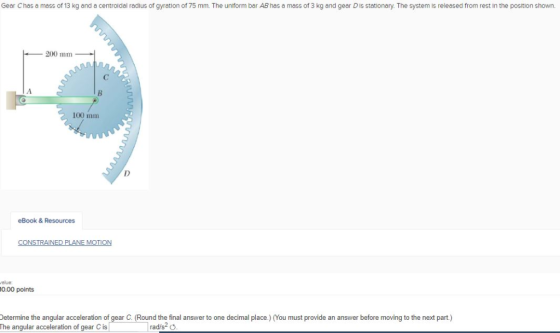

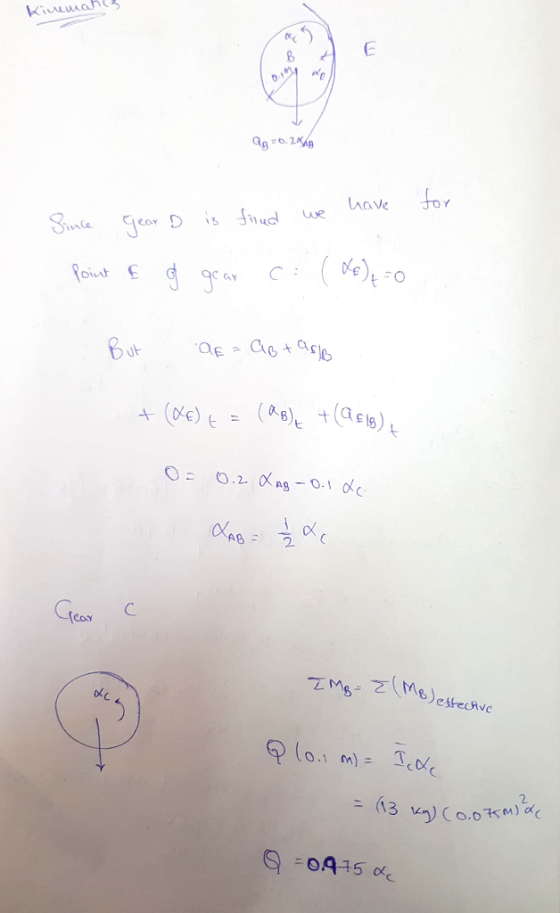

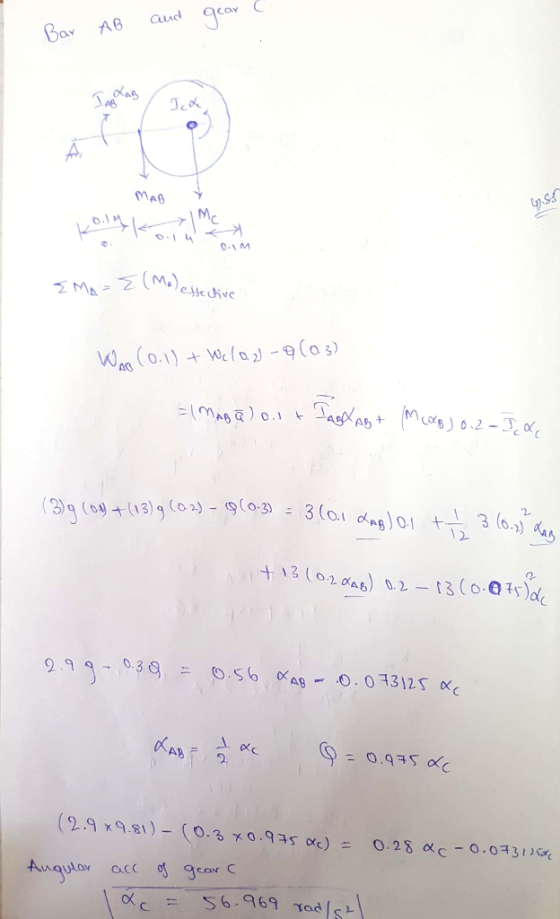

Gear Chas a mass of 13 kg and a centroidal radius of gyration of 75 mm. The uniform bar AB has a ...
Gear C has a mass of 5 kg and a centroidal radius of gyration of 75...
Gear C has a mass of 5 kg and a centroidal radius of gyration of 75 mm. The uniform bar AB has a mass of 3 kg and gear D is stationary. If the system is released from rest in the position shown, determine (a) the angular acceleration of gear C, (b) the acceleration of point B.Fig. P16.108
Gear "C" has a mass of 3.4kgs. and a centroidal turning radius of 60 mm. The...
Gear "C" has a mass of 3.4kgs. and a centroidal
turning radius of 60 mm. The uniform bar AB has a mass of 2.4 kgs.
and the "D" gear is stationary. If the system is released from rest
in the position shown, determine the velocity of point "B" after
bar AB has rotated 90 °.
160 mm Harry rregr t 90 gr 80mm AL B mm
A cord is wrapped around each of the two 18-kg disks. Their centroidal radius of gyration...
A cord is wrapped around each of the two 18-kg disks. Their centroidal radius of gyration are both 90 mm. I am holding disk A (not shown) so it cannot move nor rotate. Neglect the mass of the cord. Disk B is released from rest. Determine the angular acceleration of disk B 3. BX 90 mm 90 mm 17 PROB 115
The spring is uncompressed when the uniform slender bar is in the vertical position shown. Determine...
The spring is uncompressed when the uniform slender bar is in the vertical position shown. Determine the initial angular acceleration a of the bar when it is released from rest in a position where the bar has been rotated clockwise 33° from the position shown. Neglect any sag of the spring, whose mass is negligible. The angular acceleration is positive if counterclockwise and negative if clockwise. The mass m of the bar is 18 kg, the length / is 305...
The compound pendulum of mass m -1.9 kg and radius of gyration ko 372 mm about...
The compound pendulum of mass m -1.9 kg and radius of gyration ko 372 mm about o is freely hinged to the trolley, which is given a constant horizontal acceleration a 4.1 m/s2 from rest with the pendulum initially at rest with e 0. The distance is 320 mm. Find the angular acceleration θ and the force Fo at 0 when θ = 27". Calculate the maximum value reached by . Answers When θ 27"; rad/s? 279; FO When θ...
The ABC bar has a mass of 20 kg with radius of rotation around its center mass C 150 mm. The bar is secured to the face...
The ABC bar has a mass of 20 kg with radius of
rotation around its center mass C 150 mm. The bar is secured to the
face of a uniform circular disk, which has a mass of 30 kg. If the
disk and the rod attached there to are released from rest in the
position shown. Calculate the maximum angular velocity of the disk
during movement. The disk rolls without sliding.
A CAFO 480 mm B 120
A CAFO 480...
The 24-kg roll of paper has a radius of gyration ka = 90 mm about an...
The 24-kg roll of paper has a radius of gyration ka = 90 mm about an axis passing through point A. It is pin supported at both ends by two brackets AB. The roll rests against a wall for which the coefficient of kinetic friction is like = 0.2 and a vertical force F = 29 N is applied to the end of the paper. (Figure 1) Part A Determine the angular acceleration of the roll as the paper unrolls...
The Uniform bar AB of mass M is released from rest at θ=30º, with an angular acceleration at -20 rad / s2 The bars that...
The
Uniform bar AB of mass M is released from rest at θ=30º, with an
angular acceleration at -20 rad / s2 The bars that support it and
the rollers are of negligible mass. Find the moment applied in O.
Consider that there is no friction. Can you calculate the reactions
in O? give an explanation.
45
45
Prob. 3 A slender uniform homogeneous bar of total mass 2 kg is used to stiffen...
Prob. 3 A slender uniform homogeneous bar of total mass 2 kg is used to stiffen the 4 kg rectangular plate, as shown, along all its four sides. Determine a) The total length of the bar b) The total mass of the assembly c) Its center of mass location, G. d) determine the moment of inertia e) and radius of gyration about G. 300mm A 300mm + 400mm Prob. 4 The stiffened plate described in Prob 3 above, and supported...
The disc, with a radius of 72 mm and a mass of 2.1 Kg, rotates without...
The disc, with a radius of 72 mm and a mass of 2.1 Kg, rotates
without sliding with respect to the fixed ring at point C and is
attached to the thin bar AB, a length of 157 mm and a mass of 1.5
Kg, at point B. If the radius of gyration of the disk is 67 mm and
the system starts from rest at an angle θ = 74°, find the angular
velocity of the bar AB when...
Gear C has a mass of 5 kg and a centroidal radius of gyration of 75 mm. The uniform bar AB has a mass of 3 kg and gear D is stationary. If the system is released from rest in the position shown, determine (a) the angular acceleration of gear C, (b) the acceleration of point B.Fig. P16.108
Gear "C" has a mass of 3.4kgs. and a centroidal
turning radius of 60 mm. The uniform bar AB has a mass of 2.4 kgs.
and the "D" gear is stationary. If the system is released from rest
in the position shown, determine the velocity of point "B" after
bar AB has rotated 90 °.
160 mm Harry rregr t 90 gr 80mm AL B mm
A cord is wrapped around each of the two 18-kg disks. Their centroidal radius of gyration are both 90 mm. I am holding disk A (not shown) so it cannot move nor rotate. Neglect the mass of the cord. Disk B is released from rest. Determine the angular acceleration of disk B 3. BX 90 mm 90 mm 17 PROB 115
The spring is uncompressed when the uniform slender bar is in the vertical position shown. Determine the initial angular acceleration a of the bar when it is released from rest in a position where the bar has been rotated clockwise 33° from the position shown. Neglect any sag of the spring, whose mass is negligible. The angular acceleration is positive if counterclockwise and negative if clockwise. The mass m of the bar is 18 kg, the length / is 305...
The compound pendulum of mass m -1.9 kg and radius of gyration ko 372 mm about o is freely hinged to the trolley, which is given a constant horizontal acceleration a 4.1 m/s2 from rest with the pendulum initially at rest with e 0. The distance is 320 mm. Find the angular acceleration θ and the force Fo at 0 when θ = 27". Calculate the maximum value reached by . Answers When θ 27"; rad/s? 279; FO When θ...
The ABC bar has a mass of 20 kg with radius of
rotation around its center mass C 150 mm. The bar is secured to the
face of a uniform circular disk, which has a mass of 30 kg. If the
disk and the rod attached there to are released from rest in the
position shown. Calculate the maximum angular velocity of the disk
during movement. The disk rolls without sliding.
A CAFO 480 mm B 120
A CAFO 480...
The 24-kg roll of paper has a radius of gyration ka = 90 mm about an axis passing through point A. It is pin supported at both ends by two brackets AB. The roll rests against a wall for which the coefficient of kinetic friction is like = 0.2 and a vertical force F = 29 N is applied to the end of the paper. (Figure 1) Part A Determine the angular acceleration of the roll as the paper unrolls...
The
Uniform bar AB of mass M is released from rest at θ=30º, with an
angular acceleration at -20 rad / s2 The bars that support it and
the rollers are of negligible mass. Find the moment applied in O.
Consider that there is no friction. Can you calculate the reactions
in O? give an explanation.
45
45
Prob. 3 A slender uniform homogeneous bar of total mass 2 kg is used to stiffen the 4 kg rectangular plate, as shown, along all its four sides. Determine a) The total length of the bar b) The total mass of the assembly c) Its center of mass location, G. d) determine the moment of inertia e) and radius of gyration about G. 300mm A 300mm + 400mm Prob. 4 The stiffened plate described in Prob 3 above, and supported...
The disc, with a radius of 72 mm and a mass of 2.1 Kg, rotates
without sliding with respect to the fixed ring at point C and is
attached to the thin bar AB, a length of 157 mm and a mass of 1.5
Kg, at point B. If the radius of gyration of the disk is 67 mm and
the system starts from rest at an angle θ = 74°, find the angular
velocity of the bar AB when...
