Question

I want to make a really simple maze game in Python. I need to use tkinter and GUI to make this happened.

Under you can see the description of the task, but i need help to getting startet. If there is an other easier way I'm just happy for the help!!

task Description:

You have to create a maze game. The goal of the game is to get out of the maze. The game should read The maze from a text file with the format specified below. . Here is an example of a file as specifies a maze:

Files that specify a maze should start with two numbers on each line. The numbers indicate the width and

the height of the maze. Sample file indicates that the maze should be 7 squares wide and 6 squares high. then

comes the labyrinth itself. Each line of text file is a row in the maze and each character in the text file marks

what should be included in a particular cell in the maze. The sign "#" marks a wall, an open space

marks once, "*" marks where the player starts and "-" marks the exit. An example of this

how the game may look based on sample file above is given below. The red circle is

the player, black squares are walls, green squares are times, and the yellow box is the exit. Note that yours

solution does not need to use these symbols.

assignments

a) Create classes for the three route types Wall, hall, and exit. hall corresponds to a regular route from the class under and a wall corresponds to an obstacle from the class under. If the player moves to the exit has the player won and the game to end.

b) Create a Class Player that stores the position of the player in the board

c) Create a GUI class showing the maze.

d) Create a method in the GUI class that reads in a text file (picture over with maze) and creates a two-dimensional array of

labyrinth routes based on the recorded file.

e) Create methods in the GUI class to move the player in the four directions up, down, right and

left.

f) Tie the events of the arrow keys to call the four methods from task e).

class Route:

def __init __ (self, position):

self.position = position

def move_here (self, player):

player.setScore (self.posisjon)

return (f's player moves to position {self.position} ')

def __repr __ (self):

return f'Route {self.position} '

class obstacle:

def __init __ (self, position):

self position = position

def move_here (self, player):

return (f'It is an obstacle in the way, so you stay on {self.position} ')

def __repr __ (self):

return (f' obstacle {self.position} ')

PLEASE HELP!!

#1# # #

Answer 1

Python CODE ::
Maze game.py maze.txt 1 from tkinter import * 3 filename"maze.txt" 4 class Maze: def init (self) self.read maze(filename) 6 def read maze(self, file): Lines [x.replace("n", for x in open(file, 'r').readlines ()] self.w sel f . h int ( Lines . pop ( Θ ) ) self.Maze [list(x) for x in Lines] for h in range(self.h): 8 9 wint (Lines.pop (0)) 12 for w in range (self.w): se I f . Maze [h] [w] if '.': - self.Maze[h] [w] self.end[h, w] 16 if self.Maze[h] [w]'* self.Ma ze [ h ] [w] == . self.player [h,w] . 19 ef draw maze (self,cV) 21 self.cvCv for h in range(self.h): 23 24 25 26 27 28 29 30 for w in range(self.w): objself.Maze[h][w] cv.create_rectangle (w 50,h 50, (w+1) 50, (h+1)*50, fill-black') cv.create_rectangle(w 50,h 50, (W+1) 50, (h+1) 50, fill-'yellow') cv.create_rectangle (w 50,h 50, (w+1) 50, (h+1)*50, fill-'green) elif self.end[h, w]: else: h self.player[0]; w self.player[1] 32 cv.create_oval(x-r, y-r, x+r, y+r, fill-red') 34 35

def move(self,w,h): 36 37 38 39 if self.check move (w,h): self.player[0]+h self.player[1]+w self.draw maze (self.cv) self.check win() 42 43 def check move (self,w,h): x self.player[1] y self.player[o] 45 46 47 if self.Maze[y+h][x-w] in ['','*,'-': return True 48 49 50 else: print("Obstacle") return False def check win(self): 52 53 54 global mw if self.playerself.end: mw.destroy 56 57 58 59 60 class Game: Button (mw,text-You Won,command-mw.destroy).pack (fill-X) def init (self,maze,window) self.mazemaze self.game self.create_game (window) self.cv Canvas (window, width-maze.w 50, height-maze.h*50) window.bind ('<Left>, left) window.bind ('<Right>', right) window.bind('<Up>, up) window.bind ('Down>, down) self.cv.pack () self.maze.draw maze (self.cv) 62 63 64 65 67 68 69

71 def create game (self, mw): mw.title("Maze Game ..") mw.geometry ("%sx%s"%(self.maze.w.50, self.maze.h. 50) ) mw.resizable(0, 0) mw.configure (background-'black') 77 def up(event): maze . move (0 , -1) maze.move (0,1) maze.move (1,0) maze.move (-1,0) 79 def down (event): 81 def right (event): 82 83 def left(event): 84 86 mw Tk() 87 maze -Maze() 88 GGame (maze,mw) 89 mw.mainloop ()

Execution :

$ ls Maze game.py maze.txt Maze Game cat maze.txt py Maze game.py Obstacle Obstacle obstacle

tk You Won

Python RAW CODE ::

____________________________Mazegame.py_________________________________

from tkinter import *

filename = "maze.txt"
class Maze:
   def __init__(self):
       self.read_maze(filename)
   def read_maze(self,file):
       Lines = [x.replace("\n","") for x in open(file,'r').readlines()]
       self.w = int(Lines.pop(0))
       self.h = int(Lines.pop(0))
       self.Maze = [list(x) for x in Lines]
       for h in range(self.h):
           for w in range(self.w):
               if self.Maze[h][w] == '-':
                   self.Maze[h][w] == ' '
                   self.end = [h,w]
               if self.Maze[h][w] == '*':
                   self.Maze[h][w] == ' '
                   self.player = [h,w]

   def draw_maze(self,cv):
       self.cv = cv
       for h in range(self.h):
           for w in range(self.w):
               obj = self.Maze[h][w]
               if obj == '#':
                   cv.create_rectangle(w*50,h*50,(w+1)*50,(h+1)*50,fill='black')
               elif self.end == [h,w]:
                   cv.create_rectangle(w*50,h*50,(w+1)*50,(h+1)*50,fill='yellow')
               else:
                   cv.create_rectangle(w*50,h*50,(w+1)*50,(h+1)*50,fill='green')
       h = self.player[0] ; w = self.player[1]
       x = (w+1)*50 - 25 ; y = (h+1)*50 - 25; r = 50/2
       cv.create_oval(x-r, y-r, x+r, y+r, fill='red')

   def move(self,w,h):
       if self.check_move(w,h):
           self.player[0] += h
           self.player[1] += w
       self.draw_maze(self.cv)
       self.check_win()

   def check_move(self,w,h):
       x = self.player[1] ; y = self.player[0]
       if 0 <= x+w < self.h:
           if 0 <= y+h < self.w:
               if self.Maze[y+h][x+w] in [' ' ,'*' ,'-'] :
                   return True
               else:
                   print("Obstacle")
       return False
   def check_win(self):
       global mw
       if self.player == self.end:
           mw.destroy()
           mw = Tk()
           Button(mw,text='You Won', command=mw.destroy).pack(fill=X)

class Game:
   def __init__(self,maze,window):
       self.maze = maze
       self.game = self.create_game(window)
       self.cv = Canvas(window, width=maze.w*50, height=maze.h*50)
       window.bind('<Left>', left)
       window.bind('<Right>', right)
       window.bind('<Up>', up)
       window.bind('<Down>', down)
       self.cv.pack()
       self.maze.draw_maze(self.cv)
   def create_game(self,mw):
       mw.title("Maze Game ..")
       mw.geometry("%sx%s"%(self.maze.w*50,self.maze.h*50))
       mw.resizable(0, 0)
       mw.configure(background='black')

def up(event):
   maze.move(0,-1)
def down(event):
   maze.move(0,1)
def right(event):
   maze.move(1,0)
def left(event):
   maze.move(-1,0)

mw = Tk()
maze = Maze()
G = Game(maze,mw)
mw.mainloop()
************************************************************************************************************************

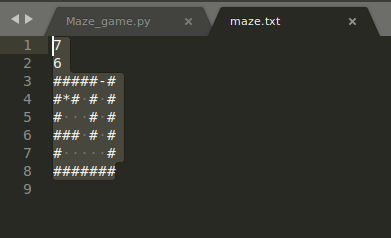

______________________________________maze.txt_______________________________________

7
6
#####-#
#*# # #
# # #
### # #
# #
#######

************************************************************************************************************************

You need to fill spaces in the path,

Maze_game.py maze.txt 3

123456789

**********************************
