<div class=""><p>in boolean algebra</p> <p>what is product of midterms of a minterm table with ABCD 4 terms</p> </div>

Question

Question

in boolean algebra

what is product of midterms of a minterm table with ABCD 4 terms

math Advanced-Math

Answer 1

Answer #1

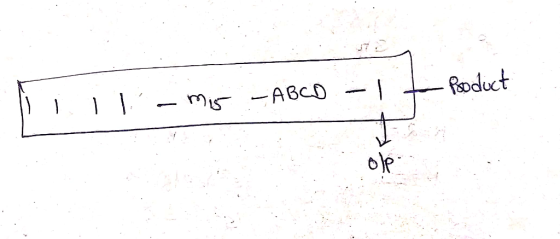

Mintescr) Fsodoet -ms- of

Answer 2

Similar Homework Help Questions

Simplify the following expressions using Boolean algebra. ABC + ABC + B ABCD + CD +...

Simplify the following expressions using Boolean algebra. ABC + ABC + B ABCD + CD + A ABCD + ABC + ABD + ABCD ABCD + ABCD + ACD + C + A ABCD + ABEF + CD + D + F ABCD + ABCD + ABCD ABC + ABC + ABCDEF + EF ABCD + ABCD + ABCD + ABCD Simplify the following expressions using KMAP ABCCD + ABCD + ABCD ABCD + ABCD + ABCD + ABCD AB...
Question 3 (20 marks) (a) Define minterm and maxterm in Boolean functions. [4 marks] (b) The...

Question 3 (20 marks) (a) Define minterm and maxterm in Boolean functions. [4 marks] (b) The truth table of the function X is shown in Table 1 Table 1 A|B|C 0 0 0 (i) Write the Boolean expression for function X in maxterms. () Simplify function X. ) Draw the logic gates of the simplified function X. (iv) Explain the benefits of simplifying the Boolean functions for digital circuits. [5 marks] [5 marks] [3 marks] [3 marks]
digital fundamentals thomas floyd Q8. A) Write the SOP (Minterm) Boolean expression for the truth table...

digital fundamentals thomas floyd Q8. A) Write the SOP (Minterm) Boolean expression for the truth table in Fig 2 below and draw the logic circuit that will perform the logic in the truth table in. B) Finally implement the same logic circuit by universal gates. [2+2=4] Inputs Output Inputs Output с в А Y C B A Y 0 0 0 0 0 0 0 0 0 1 0 0 1 0 0 0 1 1 1 0 1 1...

Use Boolean algebra to reduce the number of terms in the expression: Q = A +...

Use Boolean algebra to reduce the number of terms in the expression: Q = A + AB’ + AB’C Show all your working. Use one law for each step, and give the name of the law used in each step.
Simplify the following Boolean expressions to the minimum number of terms using the properties of Boolean algebra (show...

Simplify the following Boolean expressions to the minimum number of terms using the properties of Boolean algebra (show your work and write the property you are applying). State if they cannot be simplified A. X’Y + XY B. (X + Y)(X + Y’) C. (A’ + B’) (A + B)’ D. ABC + A’B + A’BC’ E. XY + X(WZ + WZ’)
5. Simplify the following functions using Boolean algebra Y=BC+ABC + BC Y-AB + ABC + (AT...

5. Simplify the following functions using Boolean algebra Y=BC+ABC + BC Y-AB + ABC + (AT Y =ABCD + ABC + ABCD + ABD + ABCD + BCD + Y = (C+ AB)-(A+B +D) + D (C + D)

Simplify the following boolean algebra equation only with the xnor logic gate! Please answer clearly a....

Simplify the following boolean algebra equation only with the xnor logic gate! Please answer clearly a. ABCD+ABC'D'+ACB'D'+ADB'C'+BCA'D'+BDA'C' +CDA'B'+A'B'C'D' b. B(A+CA)+A’(B’+(BD)'+(BD)'A)
b.) For the following Boolean Expression: B C + AB + ABC + ABCD + ĀBCD...

b.) For the following Boolean Expression: B C + AB + ABC + ABCD + ĀBCD + ABCD i.) Develop the truth table 17:) fimplify the expression using K-map for the simplied iii) Draw the logic gates expression.
To obtain a product of sum (POS), using basic boolean algebra identity and theorem to reduce...

To obtain a product of sum (POS), using basic boolean algebra identity and theorem to reduce A'BC + GH + DGH'

11. Simplify the following Boolean expressions to a minimum number of literals: c) abcd + abc...

11. Simplify the following Boolean expressions to a minimum number of literals: c) abcd + abc 'd + a'bd btain the truth table for the following functions and express each function in sum-of minterms and product-of-maxterms form: a) (x y')y'+2) c) (xy +yz+xz(x 2)
