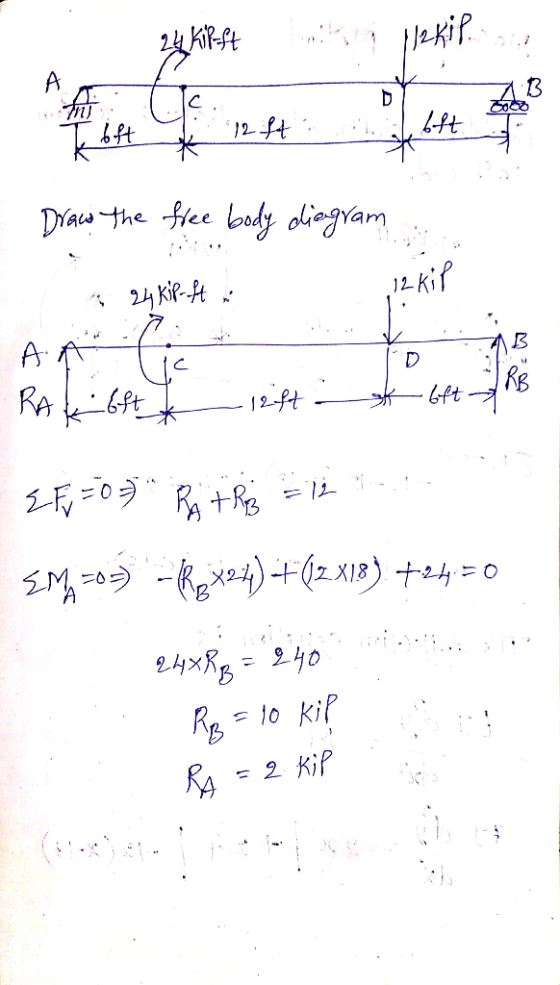

Determine the slope at A in the beam. EI is constant.(Figure 1)

Question

Question

12 kip 24 kip.ft 12 ft 6 ft

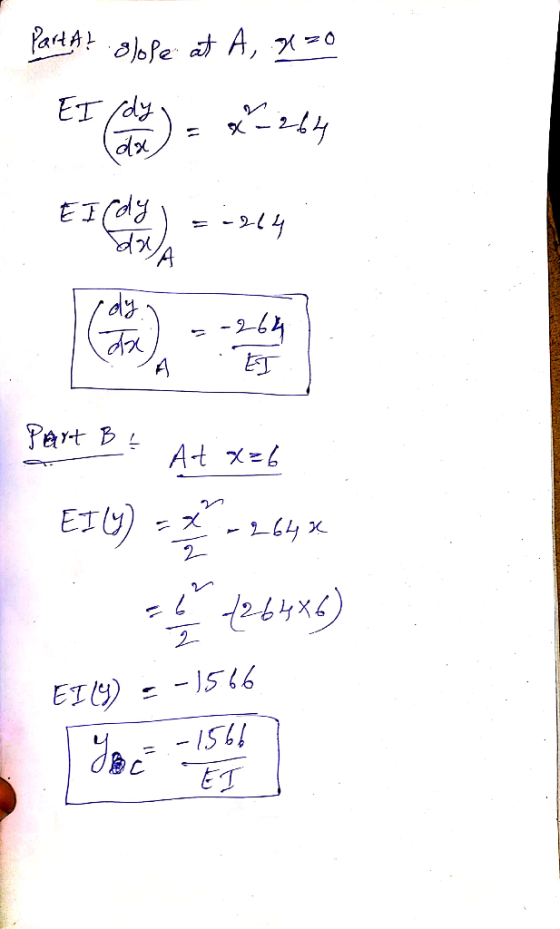

Part A

Part B

Determine the maximum deflection in the beam. EI is constant.

engineering Mechanical-Engineering

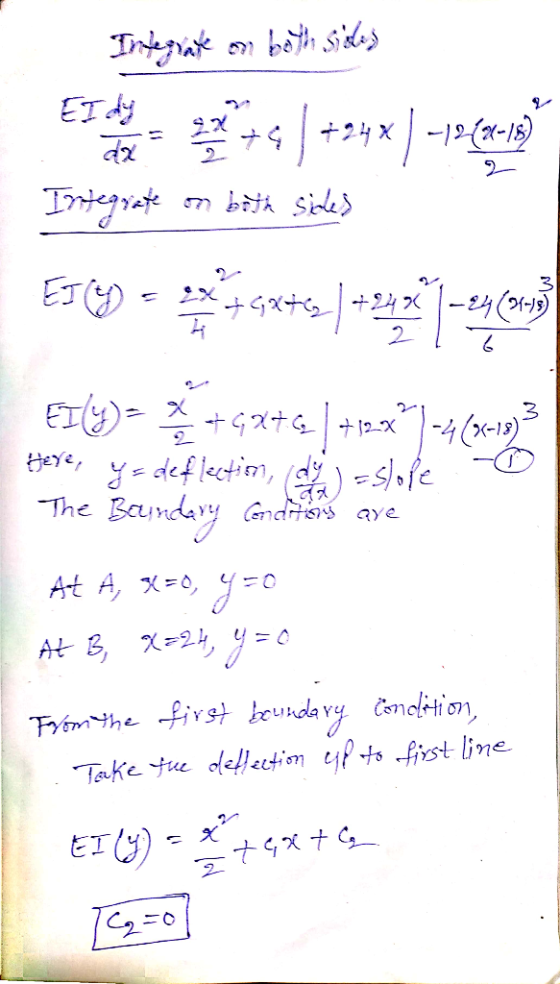

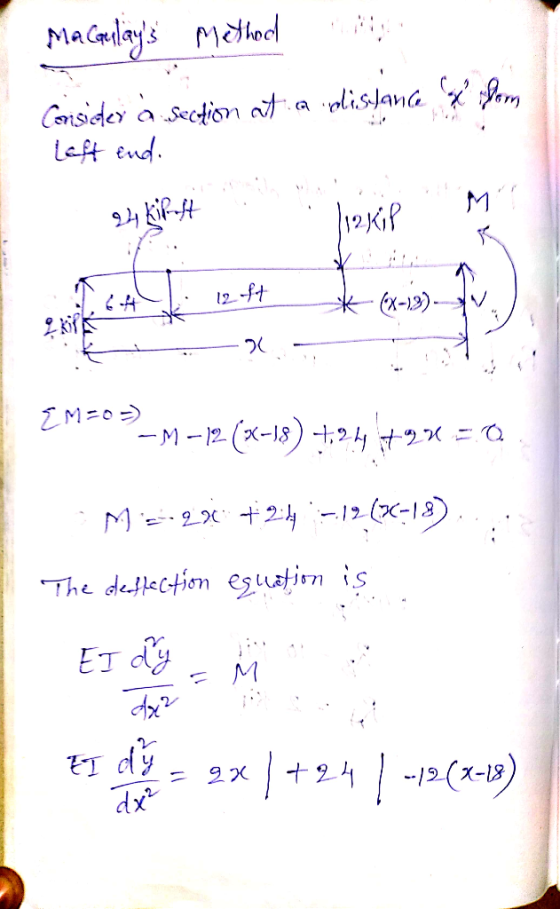

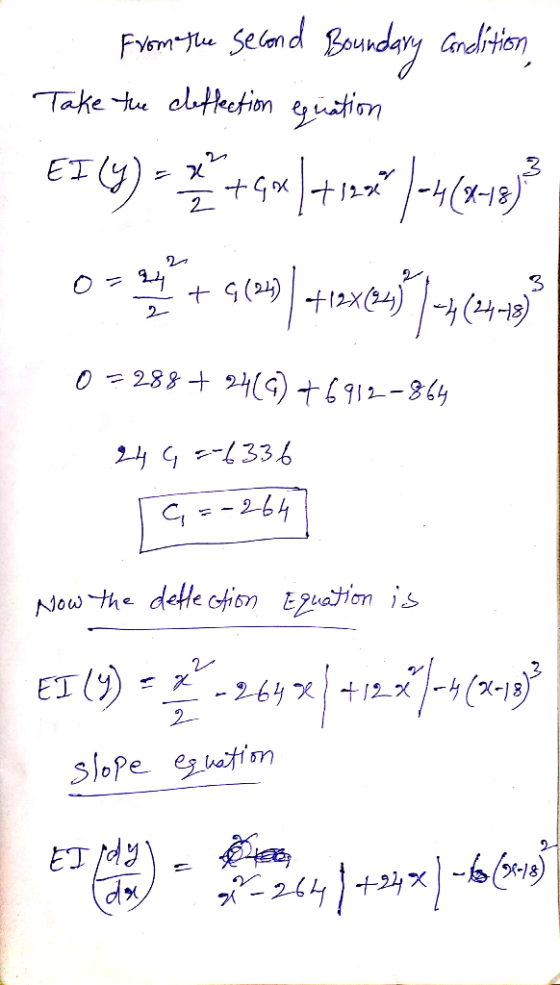

Answer 1

Answer #1

Answer 2
