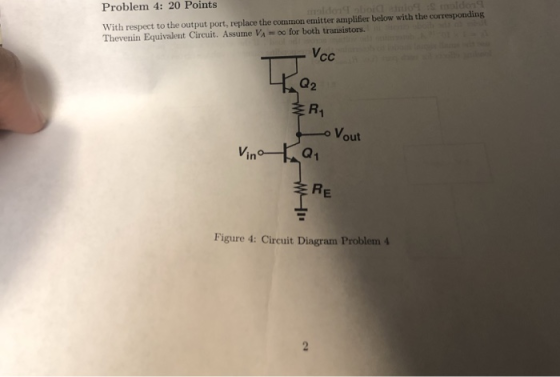

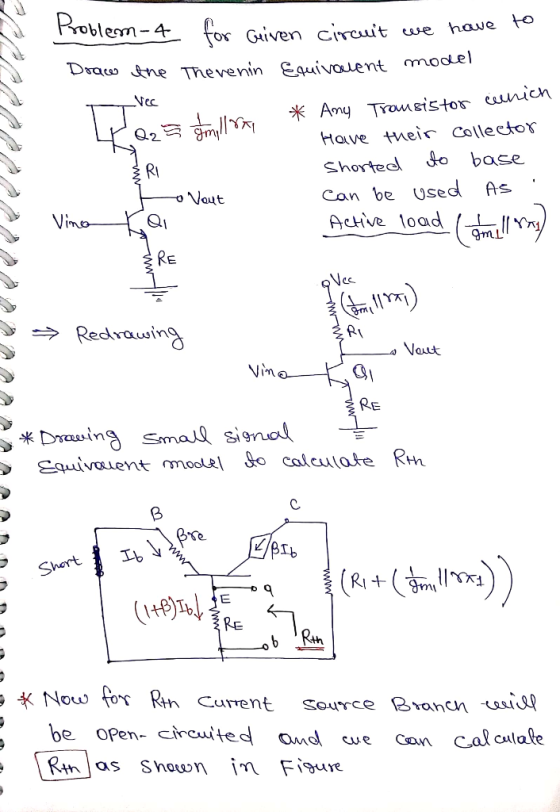

Problem 4: 20 Points With respect to the output port, replace the common emitter amplifier below with the corresponding Thevenin Equivalent Circuit. Assume VA 0o for both transistors. Vcc 02 Vout...
Need some help for this
Problem 1: Consider the circuit below. Vcc = 12V, R31 = 120k12, RB2 = 40 k12, R33 = 120 k12, R34 = 20k12, Rei 3k12, Re2 = 1k12, Rc2= 10 kN, Rcz = 0 and B = 50. a. Calculate the collector current and emitter voltage for both transistors. Neglect Early effect b. Draw the small signal equivalent circuit. c. Calculate Rin2, Rin, Rout d. Calculate the overall gain with load of the amplifier if...
F LOpoint For the circuit shown in Figure 3 3. 1. Draw the DC equivalent circuit by opening caps and shorting inductors 2. Analyze the DC equivalent circuit as we have in previous labs (assume a region, analyze and check assumptions). Check your DC operating point using LT Spice. 3. Calculate the small signal parameters (transconductance, output resistance, input resistance) 4. Draw the AC equivalent circuit by shorting de voltage sources, opening dc current sources, shorting caps and opening inductors....
slove please
Name/Date: 2. Given the npa BJT common emitnter amplifier circuit in Figure 2, assume e given below, and determine the following a) [DC Analysis] Find: α-- -h" V. Va and VCE Use above answers to confirm active mode; state the bias (i.e. FB or RB)criteria equations, and the values: V. BE- b) [Small Signal Parameters) Find cSmall Signal Model) Use x-model; draw the complete small signal equivalent circuit below. d)[Small Signal Analysis] Find the following values: R R_...
A common source amplifier circuit based on a single n-channel MOSFET is shown in Figure 4b. Assume that the transconductance gm-60 mS (equivalent to mA/ V) and drain source resistance, os, is so large it may be neglected. 0) Calculate the open circuit voltage gain Av Yout/ Vis. i) The amplifier has a load of 10 k2. Determine the current gain Va. = 12 V 150k 4k3 Vout Vin 200k GND = 0 V Figure 4b a) State the name...
Problem 3: Design Problem On Figure P3a, you have a Common Source (CS) n-channel MOSFET amplifier. Notice the absence of a source resistor Rsig and load resistor R. If we know how the present amplifier (the one on Figure P3a) behaves without Rsig and RL, we can infer its behaviors if Rsig and R were to be added. design the amplifier circuit on Figure P3a, i.e., you have to find appropriate values for RGj You are to RG,, RD, and...
