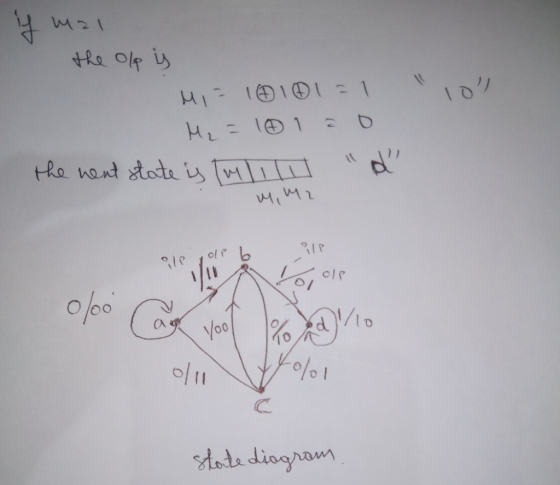

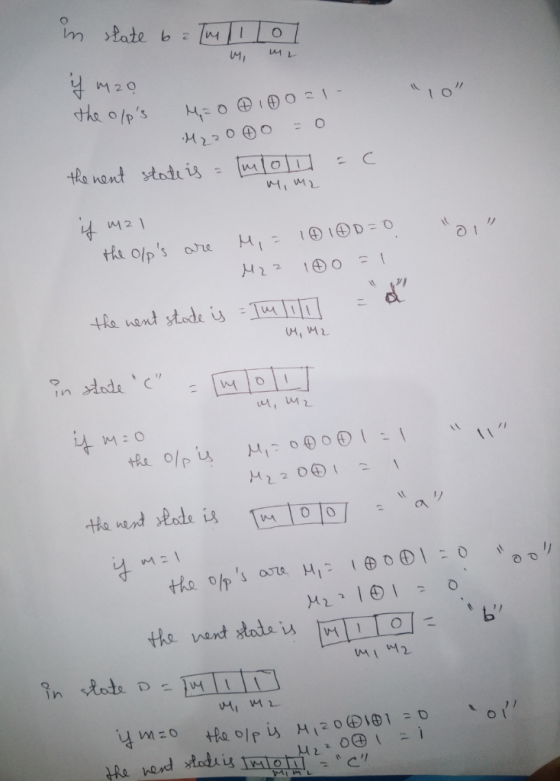

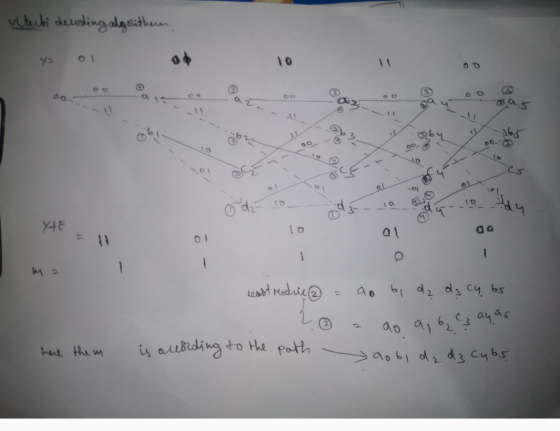

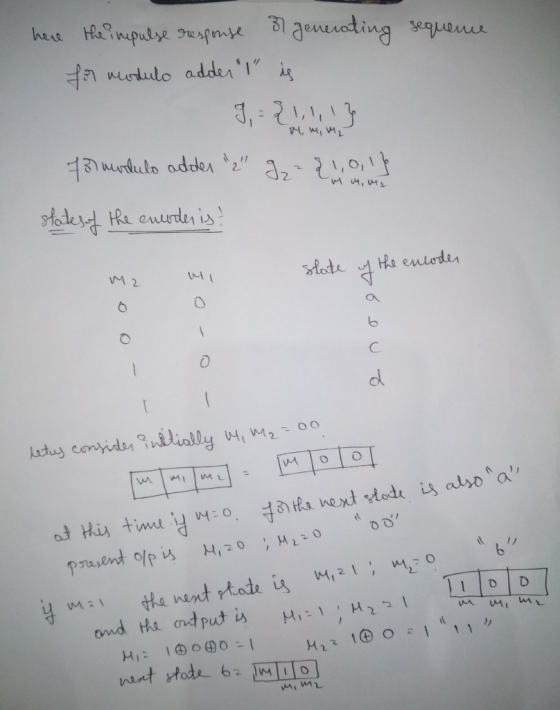

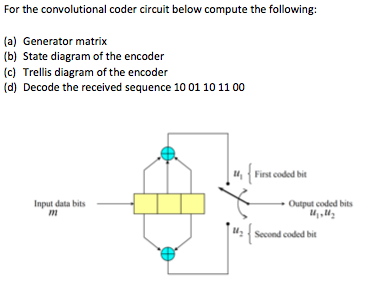

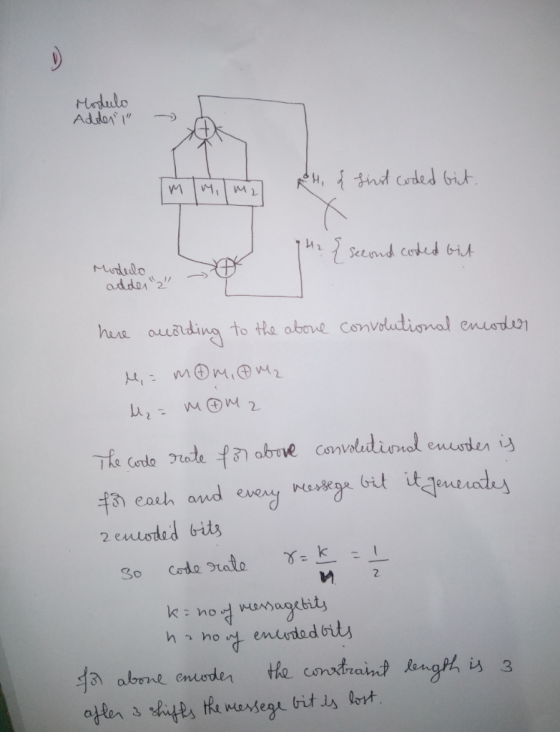

For the convolutional coder circuit below compute the following: (a) Generator matrix (b) State diagram of the encoder (c) Trellis diagram of the encoder (d) Decode the received sequence 10 01 10 11...
A combination circuit is specified by the following Boolean functions listed below. h(a, b, c) = b,c' + a'c Implement the circuit with a 3x8 decoder. Provide truth table and drawing the logic/circuit diagram. Use the block diagram for the decoder provided in Figure A4 in supplements. Please label the inputs and outputs clearly. Note: use single 3x8 decoder Question 2 (15 points] A priority encoder is an encoder circuit that includes the Truth Table of a priority function. The...
5. A circuit must detect a 01 sequence. The sequence sets z= 1,which is reset only by a 00 sequence. For all other cases, z = 0. Overlap is allowed in the sense that the second bit of the reset sequence “00” can be counted as the first bit of the next set sequence “01.” For example, for input sequence x as follows, the corresponding output sequence z would be: x = 010100100 z = 011110110 For this circuit: A)...
show work plz
Consider the following finite state diagram. State 1 Output=1 State 0 Output=0 State 2 Output=1 State 3 Output=0 The diagram has 4 states, 1 external input / (in additional to the CLK input), and 1 output bit Y. State 0 is represented by memory bits Qi Qo=00, State 1 is represented by memory bits Q.Qo=01, State 2 is represented by memory bits Q.Qo = 10, and State 3 is represented by memory bits Q.Qo = 11. The...
SEQUENCE is 101
In Lab Procedure
1. Draw the state diagram of the state machine below and show it
to the lab instructor.
2. Fill the state table.
3. Assign State numbers
4. Find simplified Expressions (State Equations) for the
flip-flops
5. Draw the circuit diagram using NAND GATES ONLY for the state
machine
STATE DIAGRAM::
STATE TABLE::
State Table Next State Qc Y DA DB Dc Present State QA Qв 0 0 0 0 0 0 0 0 0...
5) Decoders: Given the following circuit, S0 and S1 are computed using a 4-2 priority encoder with the priorities indicated on the figure. (hint: IDLE signal is always 0, if any of the inputs 10,11,12, or 13 is 1) 6 points) 4-to-2 Priority Encoder 10 YO YI 13 IDLE 13> 11 > 12>10 12 Full c Adder So Fill the following table showing the output signals S0 and SI given the input signals w, x, y, a) and z. Prof...
The state diagram for a sequential circuit in shown below. Input X, Y Output Z 000,D 10/0, 11/0 01/1,11/0 00/0,01/0 01/1,10/1 00/1, 10/0 00/1, 11/1 10/0, 11/1 a) b) c) (4 pts) Find the state table (1 pt) Make a state assignment (3 pts) Find an optimized circuit implementation using SR FFs, NAND gates, and inverters.
e state diagram below, derive the state table. A 00, B-01. C 10, D-11 m- me
Class 37 1. The state diagram below is designed to output four values in sequence according to the following rules: W-2 passes through the sequence at double-speed, W-1 passes through the sequence at normal speed, and W-o causes the output to remain unchanged. Assume that W-3 cannot occur. 1 2 1 2 10000C a. (15 points) Draw the state table for this state diagram. b. (10 points) Use the following state assignments. A:00, B 01, c-10, D:11. Draw the state-assigned...
9. Product State Graph ou are asked to design a sequence detector to detect the input codes 10 and 01. The input of the circuit is and the output is Z, which only changes at a clock edge. Overlaps must also be detected. Z only changes at the clock edge . [2%] A. Restate the problem by circling the most appropriate term within the parentheses 1. The circuilt type is (combinational- asynchronous- FSM). 2. The subcategory of the circuit is...
P6 (15 points): The FSM state diagram below has two inputs x1 and xo In addition, it has two DFFS, three 4-to-1 MUXes, a single XOR gate, a single AND gate, and a single output bit Z. Answer the following questions about this FSM. o/0 10/0 RESET A 61/0 C 9/0 01/0 1/0 o1/0 6/0 A: Is this a Moore FSM or a Mealy FSM? B: The state encodings are A-00, B-01, C-10, and D=11. Write a state- assigned table...
