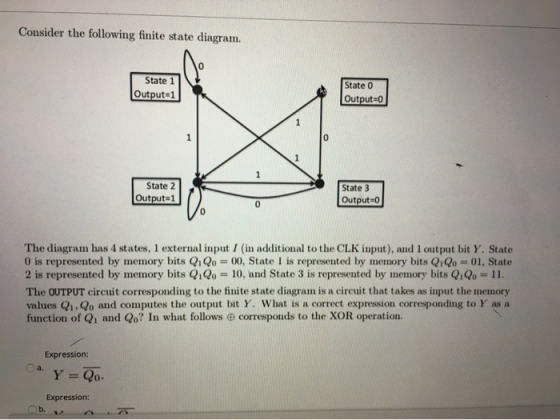

show work plz Consider the following finite state diagram. State 1 Output=1 State 0 Output=0 State...
QUESTION 1 The following finite state machine is designed to produce an output which toggles continuously while its input a is high. A simple circuit implements this finite state machine using the controller model, but no additional hardware. a Off On F=0 F=1 Assuming that circuit starts off with F=0, as shown, fill out the timing diagram for its operation below: clk a O F clk a F clk O a F QUESTION 2 Take a moment to consider the...
Table Q4.1 shows the state transition table for a finite state
machine (FSM) with one input x, one output z and eight states.
(a) Copy the table of Table Q4.2 into your examination book and
determine the states and outputs for the input listed, assuming a
start current state of ‘1’. Determine what function the FSM is
performing.
(b) Using the implication chart method, determine the minimal
number of states. Show clearly your analysis.
(c) Draw the reduced state transition...
Answer for this question plz
Q1. a. Show how the decimal number (-120) will be represented in the computer using THREE methods of 8-bit negative number representation. [3 Marks) b. Show how the real number 5308.75 will be represented in the computer using IEEE floating point format [2 marks] C. We want to design a circuit to detect the input sequence 11101 from a sequence of bits with accepted overlapped sequences. The circuit has a single bit input x and...
Consider the following circuit with x and z as the input and the output respectively. Determine the following 1. a. The Boolean expressions of the flip-flop input and the circuit output b. The excitation table of the flip-flop, next-state table and the output table. c. Find the complete state table in binary. d. Assign the states as A, B, C, etc. and determine the state table. e. Construct the state diagram of the circuit. Clk Q
0/3 D6.15 Write an assembly main program that implements this Mealy finite state machine. happy The FSM state graph, shown below, is givenP and cannot be changed. The input is on Port A bit 0 and the output is on Port B bits 3,2,1,0. There are three states (happy, hungry, sleepy), and initial state is happy. hungry 1/8 1/2 143 0/4 sleepy a) Show the ROM-based FSM data structure b) Show the initialization and controller software. Initialize the direction registers,...
SEQUENCE is 101
In Lab Procedure
1. Draw the state diagram of the state machine below and show it
to the lab instructor.
2. Fill the state table.
3. Assign State numbers
4. Find simplified Expressions (State Equations) for the
flip-flops
5. Draw the circuit diagram using NAND GATES ONLY for the state
machine
STATE DIAGRAM::
STATE TABLE::
State Table Next State Qc Y DA DB Dc Present State QA Qв 0 0 0 0 0 0 0 0 0...
Draw state diagram
ing the following definition to draw a state diagram. (Show your work.) A finite automaton Ai-Q, Σ, δ, q0, F} where Q = {go. qi, q2, q3, q4), Σ={a,b,c), δ is described as qo is the start state, and

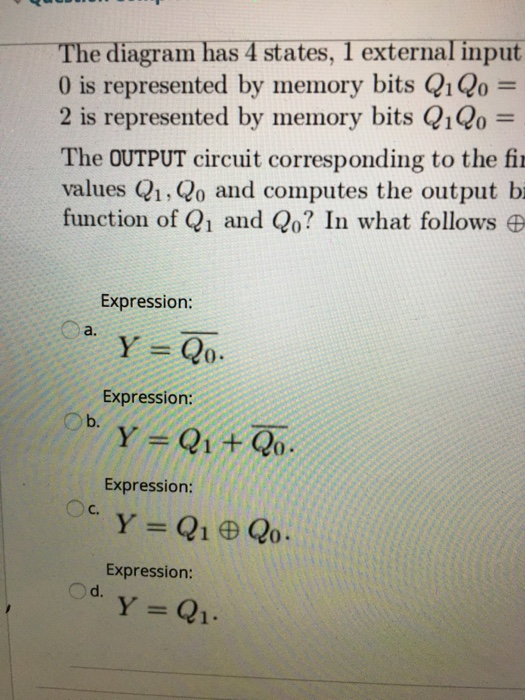

Questions 11-12 are grouped together and share information. 11. (T/F) The state diagram is an example of a Moore state machine. 12. Complete a state transition/output table from the state graph (diagrarn). The state variables are Q1 and Qo, the input is X and the output is Y. State Diagram o 0 1 Q1 Q0 0 0 0 1 1 0 1 1
Basic Properties of Convolutional Codes a convolutional encoder has finite memory, it can easily be represented bu m diagram. In the state-transition diagram, each state of the convolution 13.3.1 output(s) are specified. The number of lines emerging from each state is, therefoe pondi number of possible inputs to the encoder at that state, which is equal to 2. T ines merging at each state is equal to the number of states from which a tran tis represented by a box,...
For the convolutional coder circuit below compute the following: (a) Generator matrix (b) State diagram of the encoder (c) Trellis diagram of the encoder (d) Decode the received sequence 10 01 10 11 00 First coded bit Input data bits Output coded bits Second coded bit
For the convolutional coder circuit below compute the following: (a) Generator matrix (b) State diagram of the encoder (c) Trellis diagram of the encoder (d) Decode the received sequence 10 01 10 11 00...
