Question

This Question is from cryptography subject.

(Dining cryptographers). In the dining cryptographers problem, supose there are 4 cryptographers: A,B,C and D. For each of the following case, use an EXAMPLE to illustrate how the cryptographers follow the protocol step by step to determine whether NSA or one of the cryptographers pays the meal.
1) NSA pays

2) Bob pays

Answer 1

Introduction Three cryptographers are sitting down to dinner at their favorite three-star restaurant. Their waiter informs them that arrangements have been made with the maitre d'hotel for the bill to be paid anonymously. One of the cryptographers might be paying for the dinner, or it might have been NSA (U.S. National Security Agency). The three cryptographers respect each other's right to make an anonymous payment, but they wonder if NSA is paying. They resolve their uncertainty fairly by carrying out the following protocol Each cryptographer flips an unbiased coin behind his menu, between him and the cryptographer on his right, so that only the two of them can see the outcome. Each cryptographer then states aloud whether the two coins he can see--the one he flipped and the one his left-hand neighbor flipped--fell on the same side or on different sides. If one of the cryptographers is the payer, he states the opposite of what he sees. An odd number of differences uttered at the table indicates that a cryptographer is paying; an even number indicates that NSA is paying (assuming that the dinner was paid for only once). Yet if a cryptographer is paying, neither of the other two learns anything fromm the utterances about which cryptographer it is. To see why the protocol is unconditionally secure if carried out faithfully, consider the dilemma of a cryptographer who is not the payer and wishes to find out which cryptographer is. (If NSA pays, there is no anonymity problem.) There are two cases. In case (1) the two coins he sees are the same, one of the other cryptographers said "different," and the other one said "same." If the hidden outcome was the same as the two outcomes he sees, the cryptographer who said "different" is the payer; if the outcome was different, the one who said "same" is the payer. But since the hidden coin is fair, both possibilities are equally likely. In case (2) the coins he sees are different; if both other cryptographers said "different," then the payer is closest to the coin that is the same as the hidden coin; if both said "same," then the payer is closest to the coin that differs from the hidden coin. Thus, in each subcase, a nonpaying cryptographer learns nothing about which of the other two is paying The cryptographers become intrigued with the ability to make messages public untraceably. They devise a way to do this at the table for a statement of arbitrary length: the basic protocol is repeated over and over, when one cryptographer wishes to make a message public, he merely begins inverting his statements in those rounds corresponding to 1's in a binary coded version of his message. If he notices that his message would collide with some other message, he may for example wait a number of rounds chosen at random from a suitable distribution before trying to transmit again 1. Generalizing the Approach During dinner, the cryptographers also consider how any number of participants greater than one can carry out a version of the protocol. (With two participants, only nonparticipant listeners are unable to distinguish between the two potential senders.) Each participant has a secret key bit in common with, say, every other participant. Each participant outputs the sum, modulo two, of all the key bits he shares, and if he wishes to transmit, he inverts his output. If no participant transmits, the modulo two sum of the outputs must be zero, since every key bit enters exactly twice; if one participant transmits, the sum must be one. (In fact, any even number of transmitting participants yields zero, and any odd number yields one.) For j rounds, each participant could have a j-bit key in common with every other participant, and the ith bit of each

such key would be used only in the ith round. Detected collision of messages leads to attempted retransmission as described above; undetected collision results only from an odd number of synchronized identical message segments. (Generalization to fields other than GF(2) is possible, but seems to offer little practical advantage.) Other generalizations are also considered during dinner. The underlying assumptions are first made explicit, including modeling key-sharing arrangements as graphs. Next, the model is illustrated with some simple examples. The potential for cooperations of participants to violate the security of others is then looked at. Finally, a proof of security based on systems of linear equations is given 1.1. Model Each participant is assumed to have two kinds of secret: (a) the keys shared with other participants for each round; and (b) the inversion used in each round (i.e., a 1 if the participant inverts in that round and a 0 if not). Some or all of a participant's secrets may be given to other participants in various forms of collusion, discussion of which is postponed until Section 1.3. (For simplicity in exposition, the possibility of secrets being stolen is ignored throughout.) The remaining information about the system may be described as: (a) who shares keys with whom; and (b) what each participant outputs during each round (the modulo two sum of that participant's keys and inversion). This information need not be secret to ensure untraceability. If it is publicly known and agreed, it allows various extensions discussed in Sections 2.5 and 2.6. The sum of all the outputs will, of course, usually become known to all participants. In the terminology of graphs, each participant corresponds to a vertex and each key corresponds to an edge. An edge is incident on the vertices corresponding to the pair of participants that shares the corresponding key. From here on, the graph and dinner-table terminologies will be used interchangeably. Also, without loss of generality, it will be assumed that the graph is connected (i.e., that a path exists between every pair of vertices), since each connected component (ie, each maximal connected subgraph) could be considered a separate untraceable-sender system An anonymity set seen by a set of keys is the set of vertices in a connected component of the graph formed from the original graph by removing the edges concerned. Thus a set of keys sees one anonymity set for each connected partition induced by removing the keys. The main theorem of Section 1.4 is essentially that those having only the public information and a set of keys seeing some anonymity set can learn nothing about the members of that anonymity set except the overall parity of their inversions. Thus for example, any two participants connected by at least one chain of keys unknown to an observer are both in the same anonymity set seen by the observer's keys, and the observer gains nothing that would help distinguish between their messages 1.2. Some Examples A few simple consequences of the above model may be illustrative. The anonymity set seen by the empty set (i.e., by a nonparticipant observer) is the set of all vertices, since the graph is assumed connected and remains so after zero edges are removed. Also, the anonymity sets seen by the full set of edges are all singleton sets, since each vertex's inversion is iust the sum of its outout and the corresponding key hits

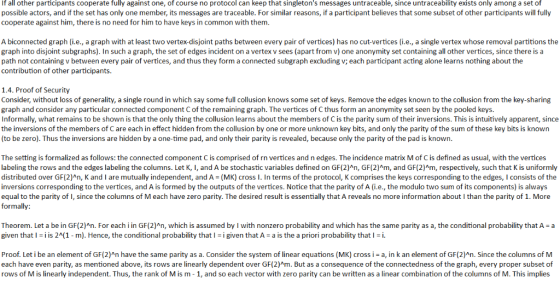

If all other participants cooperate fully against one, of course no protocol can keep that singleton's messages untraceable, since untraceability exists only among a set of possible actors, and if the set has only one member, its messages are traceable. For similar reasons, if a participant believes that some subset of other participants will fully cooperate against him, there is no need for him to have keys in common with them A biconnected graph (i.e., a graph with at least two vertex-disjoint paths between every pair of vertices) has no cut-vertices (i.e., a single vertex whose removal partitions the graph into disjoint subgraphs). In such a graph, the set of edges incident on a vertex v sees (apart from v) one anonymity set containing all other vertices, since there is a path not containing v between every pair of vertices, and thus they form a connected subgraph excluding v; each participant acting alone learns nothing about the contribution of other participants. 1.4. Proof of Security Consider, without loss of generality, a single round in which say some full collusion knows some set of keys. Remove the edges known to the collusion from the key-sharing graph and consider any particular connected component C of the remaining graph. The vertices of C thus form an anonymity set seen by the pooled keys Informally, what remains to be shown is that the only thing the collusion learns about the members of C is the parity sum of their inversions. This is intuitively apparent, since the inversions of the members of C are each in effect hidden from the collusion by one or more unknown key bits, and only the parity of the sum of these key bits is known (to be zero). Thus the inversions are hidden by a one-time pad, and only their parity is revealed, because only the parity of the pad is known. The setting is formalized as follows: the connected component C is comprised of rn vertices and n edges. The incidence matrix M of C is defined as usual, with the vertices labeling the rows and the edges labeling the columns. Let K, I, and A be stochastic variables defined on GF(2)An, GF(2)m, and GF(2)Am, respectively, such that K is uniformly distributed over GF(2)An, K and I are mutually independent, and A (MK) cross I. In terms of the protocol, K comprises the keys corresponding to the edges, I consists of the inversions corresponding to the vertices, and A is formed by the outputs of the vertices. Notice that the parity of A (i.e., the modulo two sum of its components) is always equal to the parity of i, since the columns of M each have zero parity. The desired result is essentially that A reveals no more information about I than the parity of 1. More formally Theorem. Let a be in GF(2)An. For each i in GF(2)An, which is assumed by I with nonzero probability and which has the same parity as a, the conditional probability that A-a given that l-i is 2 1-m). Hence, the conditional probability that l given that A = a is the a priori probability that l i Proof. Let i be an element of GF(2)An have the same parity as a. Consider the system of linear equations (MK) cross i = a, in k an element of GF(2)An. Since the columns of M each have even parity, as mentioned above, its rows are linearly dependent over GF(2)Am. But as a consequence of the connectedness of the graph, every proper subset of rows of M is linearly independent. Thus, the rank of M is m -1, and so each vector with zero parity can be written as a linear combination of the columns of M. This implies

that the system is solvable because i cross a has even parity. Since the set of n column vectors of M has rank m - 1, the system has exactly 2n -m 1) solutions. Together with the fact that K and I are mutually independent and that K is uniformly distributed, the theorem follows easily
