Problem Two: The beam shown below part is for an interior span and is cast monolithically with a one-way slab. The clear span for the beam is 30 feet, and the clear spacing between beams is 10 fee...

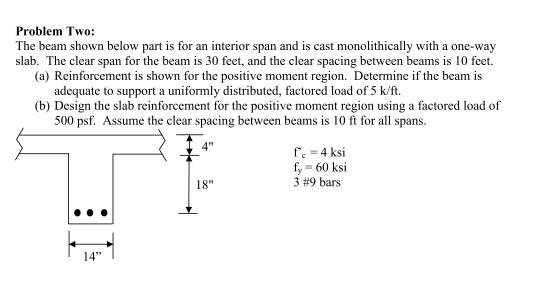

b.323 The empirical provisions of 6.3.2.1 and 6.3.2.2 were developed for nonprestressed T-beams. The flange widths in 6.3.2.1 and 6.3.22 should be uset Problem Two: The beam shown below part is f...
b.323 The empirical provisions of 6.3.2.1 and 6.3.2.2 were developed for nonprestressed T-beams. The flange widths in 6.3.2.1 and 6.3.22 should be uset Problem Two: The beam shown below part is for an interior span and is cast monolithically with a one-wav slab. The clear span for the beam is 30 feet, and the clear spacing between beams is 10 feet. (a) Reinforcement is shown for the positive moment region. Determine if the beam is adequate to support a uniformly...
Problem 4: (15%) Consider a 7 inch thick simply supported slab with a span of 12...
Problem 4: (15%) Consider a 7 inch thick simply supported slab with a span of 12 feet. The sab w 265 psf. Material properties are fe'4 ksi and fy 60 ksi. Select the reinforcement and sketch on the figure below its arrangement. carries a factored load 12 ft
Q1. A continuous one-way slab is subjected to Gu(including self-weight) - 7.0 kN/m' Q-4.5 kN/m2. At the exterior ends, the slab is cast monolithically with the edge beams. Assume C30/37 concrete,...
Q1. A continuous one-way slab is subjected to Gu(including self-weight) - 7.0 kN/m' Q-4.5 kN/m2. At the exterior ends, the slab is cast monolithically with the edge beams. Assume C30/37 concrete, grade 500 steel, and 25-mm cover to bars. Size of each beam is 350mm x 450mm, size of each column is 400mm x 400mm. (a) Determine the slab thickness. (b) Check whether the design shears and moments at critical sections (e.g. at mid- spans and supports) can be determined...
1. T-Beams are used to support a floor in an industrial building. The floor is used...
1. T-Beams are used to support a floor in an industrial building. The floor is used for product storage so it must be designed for a heavy 600 psf. The floor must also support a superimposed dead load of 20 psf (in addition to the self-weight of the beams and slab. The layout of the beams and slabs is shown below. The beams span 30.0% and are spaced at 4.0” center to center. The slab is 3” thick. The concrete...
Problem #2 (33%) Design the T-beam for the floor system shown below. The floor has a...
Problem #2 (33%) Design the T-beam for the floor system shown below. The floor has a 4-in. slab suspoted by 22-ft-span-length beams cast monolithically with the slab. Beams are 8 ft- 0 in. on center and have a web width of 12 22 in.; fe' 3000 psi in. and a total depth and fy 60,000 psi. Service loads are 0.125- ksf live load and 0.200-ksf dead load. The given dead load does not include the weight of the floor system....
Determine the design moment strength φMn of the T-beam in the slab shown. The span length...
Determine the design moment strength φMn of the T-beam in the slab shown. The span length of the beam is 30 ft. Use fc-4000 psi and fy 60,000 psi. Assume there is one inch clear distance between layers 5 in 32 in 36 in 8#9 15 in 8 ft
Problem 1: A reinforced concrete beam having the cross section shown is on a simple span...
Problem 1: A reinforced concrete beam having the cross section shown is on a simple span of 26.5ft. It has already been estimated that the applied factored moment, Mu, is 700 k-ft. Assume 60ksi. interior exposure, #3 stirrups, f'e 3ksi, fy Required: 1) Analyze if the beam is adequate for moment only. (3 points) Solution: 91 34.4" d 38" 6u-7 4.#9 (4)
Problem 1: A reinforced concrete beam having the cross section shown is on a simple span of 26.5ft....
A reinforced concrete beam shown in Figure below is 15-in. wide and has effective depth of31 in. ...
A reinforced concrete beam shown in Figure below is 15-in. wide and has effective depth of31 in. The factored loads are shown. (The factored uniform load includes the weight of the beam). Design the web reinforcement using the Vu diagram shown in the Figure (for a symmetric half). Assume No. 3 stirrups,fc '-4000 psi and fy=fyt-60000psi. 100 kip 100 kip d-31 in. 15 ft clear span As s) 102.5 kip se 2.5 ki @y、阪、もw cl.* 3..-K: ps
A reinforced concrete...
Qu estion 1: (25 points) The beam shown below has a span of 13 ft and is reinforced with bars tha...
Qu estion 1: (25 points) The beam shown below has a span of 13 ft and is reinforced with bars that ext end 8 inch beyond the face of the support. The centerline of the longitudinal bars nearest the side ace (i.e., the "outside bars") is 3.5 inch from, the side face as shown below. The concrete has a compressive strength of 3.0 ksi, and the reinforcement is Grade 60. The beam is loaded with a distributed live load (w)...
Simply supported rectangular beam shown is 18in. wide and has an effective depth of 40in. Beam supports a factored load of 7.63 kips/ft on a clear span of 26.5ft. Given load includes the beam's s...
Simply supported rectangular beam shown is 18in. wide and has an
effective depth of 40in. Beam supports a factored load of 7.63
kips/ft on a clear span of 26.5ft. Given load includes the beam's
self weight. Design the web reinforcement. Use f'c = 4,000psi and
fy = 60,000psi. Show work and equations used. Draw shear diagram
and stirrup design.
PRODUCED BY AN AUTODESK STUDENT VERSION Wu 7.63 k/ft 26.5 ft 18in 40 in 43 in. 4 #10 bars Cross-Section
PRODUCED...
b.323 The empirical provisions of 6.3.2.1 and 6.3.2.2 were developed for nonprestressed T-beams. The flange widths in 6.3.2.1 and 6.3.22 should be uset Problem Two: The beam shown below part is for an interior span and is cast monolithically with a one-wav slab. The clear span for the beam is 30 feet, and the clear spacing between beams is 10 feet. (a) Reinforcement is shown for the positive moment region. Determine if the beam is adequate to support a uniformly...
Problem 4: (15%) Consider a 7 inch thick simply supported slab with a span of 12 feet. The sab w 265 psf. Material properties are fe'4 ksi and fy 60 ksi. Select the reinforcement and sketch on the figure below its arrangement. carries a factored load 12 ft
Q1. A continuous one-way slab is subjected to Gu(including self-weight) - 7.0 kN/m' Q-4.5 kN/m2. At the exterior ends, the slab is cast monolithically with the edge beams. Assume C30/37 concrete, grade 500 steel, and 25-mm cover to bars. Size of each beam is 350mm x 450mm, size of each column is 400mm x 400mm. (a) Determine the slab thickness. (b) Check whether the design shears and moments at critical sections (e.g. at mid- spans and supports) can be determined...
1. T-Beams are used to support a floor in an industrial building. The floor is used for product storage so it must be designed for a heavy 600 psf. The floor must also support a superimposed dead load of 20 psf (in addition to the self-weight of the beams and slab. The layout of the beams and slabs is shown below. The beams span 30.0% and are spaced at 4.0” center to center. The slab is 3” thick. The concrete...
Problem #2 (33%) Design the T-beam for the floor system shown below. The floor has a 4-in. slab suspoted by 22-ft-span-length beams cast monolithically with the slab. Beams are 8 ft- 0 in. on center and have a web width of 12 22 in.; fe' 3000 psi in. and a total depth and fy 60,000 psi. Service loads are 0.125- ksf live load and 0.200-ksf dead load. The given dead load does not include the weight of the floor system....
Determine the design moment strength φMn of the T-beam in the slab shown. The span length of the beam is 30 ft. Use fc-4000 psi and fy 60,000 psi. Assume there is one inch clear distance between layers 5 in 32 in 36 in 8#9 15 in 8 ft
Problem 1: A reinforced concrete beam having the cross section shown is on a simple span of 26.5ft. It has already been estimated that the applied factored moment, Mu, is 700 k-ft. Assume 60ksi. interior exposure, #3 stirrups, f'e 3ksi, fy Required: 1) Analyze if the beam is adequate for moment only. (3 points) Solution: 91 34.4" d 38" 6u-7 4.#9 (4)
Problem 1: A reinforced concrete beam having the cross section shown is on a simple span of 26.5ft....
A reinforced concrete beam shown in Figure below is 15-in. wide and has effective depth of31 in. The factored loads are shown. (The factored uniform load includes the weight of the beam). Design the web reinforcement using the Vu diagram shown in the Figure (for a symmetric half). Assume No. 3 stirrups,fc '-4000 psi and fy=fyt-60000psi. 100 kip 100 kip d-31 in. 15 ft clear span As s) 102.5 kip se 2.5 ki @y、阪、もw cl.* 3..-K: ps
A reinforced concrete...
Qu estion 1: (25 points) The beam shown below has a span of 13 ft and is reinforced with bars that ext end 8 inch beyond the face of the support. The centerline of the longitudinal bars nearest the side ace (i.e., the "outside bars") is 3.5 inch from, the side face as shown below. The concrete has a compressive strength of 3.0 ksi, and the reinforcement is Grade 60. The beam is loaded with a distributed live load (w)...
Simply supported rectangular beam shown is 18in. wide and has an
effective depth of 40in. Beam supports a factored load of 7.63
kips/ft on a clear span of 26.5ft. Given load includes the beam's
self weight. Design the web reinforcement. Use f'c = 4,000psi and
fy = 60,000psi. Show work and equations used. Draw shear diagram
and stirrup design.
PRODUCED BY AN AUTODESK STUDENT VERSION Wu 7.63 k/ft 26.5 ft 18in 40 in 43 in. 4 #10 bars Cross-Section
PRODUCED...
