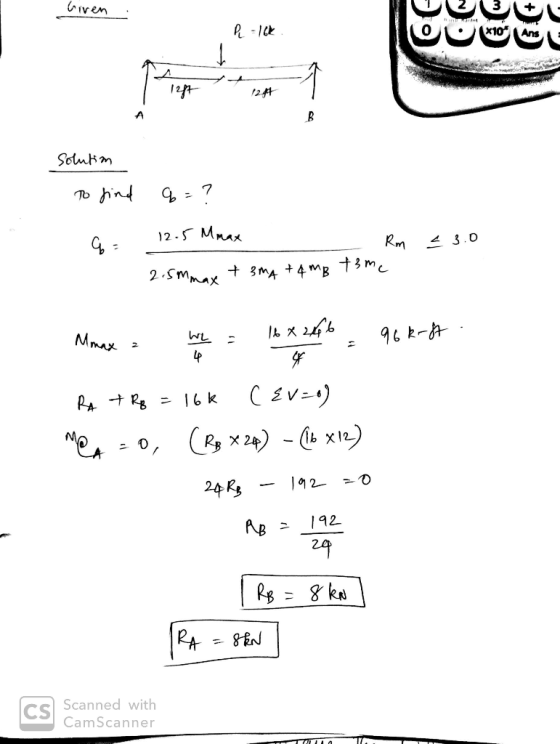

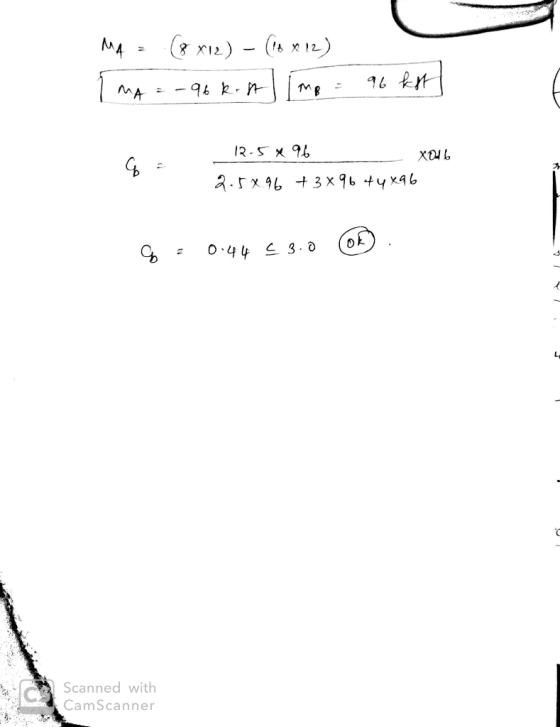

Problem 1: If lateral bracing is provided at the concentrated load as well as at the ends of span. Determine Cb PL =16 k u'D = 1.8 k/ft 12 ft 12 ft Problem 1: If lateral bracing is provided...
Problem 5: Select the lightest steel beam. Fy=50 ksi. The lateral bracing is provided at the...
Problem 5: Select the lightest steel beam. Fy=50 ksi. The lateral bracing is provided at the both ends and at the two points 10 ft each from the ends. Neglect Mn Fy 2 weight of the beam. (1) Check moment. (2) Check shear. (3) Determine the maximum deflection. 50 Pin Pin Po=22k PL=45k PD-22k PL 45k toft 10'x3=30'
Problem 5: Select the lightest steel beam. Fy=50 ksi. The lateral bracing is provided at the both ends and at the two...
The 24 ft beam shown is laterally braced at the ends and at the centerline of...
The 24 ft beam shown is laterally braced at the ends and at the centerline of the beam span. The beam supports two concentrated live loads of 15 kips at the / and points. Assume 50 ksi steel and use a calculated value of Cb. You may neglect the beam self-weight. Select the lightest W-shape. As part of your answer indicate the following: Problem 3 (20 points) Member selected W X Cb Mu DMa PL PL 12 ft 6 ft...
2. (1.5 points) A 24-ft simple span that supports three (3) service concentrated live load of 20 ...
2. (1.5 points) A 24-ft simple span that supports three (3) service concentrated live load of 20 kips each at quarter points is laterally unbraced except at its ends and the center line. If the maximum permissible center line deflection under service live load equal L/400, select the lightest Wsection of 50 ksi steel, considering moment, shear, and deflection. Neglect beanm weight. Use Cb-1.0.
2. (1.5 points) A 24-ft simple span that supports three (3) service concentrated live load of...
Problem # 2 The 24-kip concentrated load shown is a service live load. Determine whether the beam...
please show your step thoroughly!
Problem # 2 The 24-kip concentrated load shown is a service live load. Determine whether the beam satisfies the AISC Specification if A992 steel is used. Lateral support is provided at the ends only. (Flexure, shear, deflection) 24k Δ4 W14 x 109 15
Problem # 2 The 24-kip concentrated load shown is a service live load. Determine whether the beam satisfies the AISC Specification if A992 steel is used. Lateral support is provided at the...
a simply supported beam shown has a span length of 16 ft. the beam is laoded...
a simply supported beam shown has a span length of 16 ft. the
beam is laoded with to concentrated service live loads of 40 kips
and 80 kips as shown. if lateral support is provided only at both
ends, select the lightest w section of A992 steel that can carry
these applied loads. neglect the weight of the beam.
***Need this answered ASAP please***
***Please show ALL steps***
steel design - please show what tables the values come from.
thank...
Problem 3: Design of Steel Beam for Bending with Varying Unbraced Lengths Select the lightest A992...
Problem 3: Design of Steel Beam for Bending with Varying Unbraced Lengths Select the lightest A992 steel W-shape for the beam shown below using LRFD. Only consider design (neglect shear a bracing situations: a. Continuous lateral support of the compression flange b. Lateral support at beam ends and at the point of the concentrated load c. Lateral support only at beam ends PD = 10k PL-20k WD-3.33 k/ft w, = 6.67 k/ft 10' 20' 30'
1) Select the lightest section that can be used for the beam shown below if lateral...
1) Select the lightest section that can be used for the beam
shown below if lateral bracing is provided only at the ends of the
beam. Given loads are service loads (dead load given includes beam
dead weight). Use Fy= 50ksi. The point load is applied at
midspan.
4) Select the lightest section that can be used for the beam shown below if lateral bracing is provided only at the ends of the beam. Given loads are service loads (dead...
A rectangular reinforced concrete beam of span 16 ft supports a concentrated load of 40 kips...
A rectangular reinforced concrete beam of span 16 ft supports a concentrated load of 40 kips at mid-point of the beam and a uniformly-distributed load of 4 kips/ft over the entire span. Given: (a) The breadth of the beam is 18 inches. (b) Concrete compressive strength, fc, is 3500 psi. (c) Rebar is Grade 40 steel i) Determine the maximum moment and maximum shear acting on the beam. ii) Determine the minimum effective depth 'd' of the beam section (rounded...
A rectangular reinforced concrete beam of span 16 ft supports a concentrated load of 40 kips...
A rectangular reinforced concrete beam of span 16 ft supports a concentrated load of 40 kips at mid-point of the beam and a uniformly-distributed load of 4 kips/ft over the entire span. Given: (a) The breadth of the beam is 18 inches. (b) Concrete compressive strength, f 'c, is 3500 psi. (c) Rebar is Grade 40 steel i) Determine the maximum moment and maximum shear acting on the beam. ii) Determine the minimum effective depth 'd' of the beam section...
Show all steps Problem 1: Select a W-shape beam for the following load scenario. Assume there...
Show all steps
Problem 1: Select a W-shape beam for the following load scenario. Assume there is bracing at the ends and at midspan. Use A992 steel. The deflection limit is given as L/360. (35 points) DL = 0.75 k/ft LL = 1.00 k/ft 15 ft 15 ft a. Using AISC LRFD, compute the factored design load, Mu, acting on the member. (ANS. b. What section would you select if you did not consider the moment gradient? (ANS. c. Account...
Problem 5: Select the lightest steel beam. Fy=50 ksi. The lateral bracing is provided at the both ends and at the two points 10 ft each from the ends. Neglect Mn Fy 2 weight of the beam. (1) Check moment. (2) Check shear. (3) Determine the maximum deflection. 50 Pin Pin Po=22k PL=45k PD-22k PL 45k toft 10'x3=30'
Problem 5: Select the lightest steel beam. Fy=50 ksi. The lateral bracing is provided at the both ends and at the two...
The 24 ft beam shown is laterally braced at the ends and at the centerline of the beam span. The beam supports two concentrated live loads of 15 kips at the / and points. Assume 50 ksi steel and use a calculated value of Cb. You may neglect the beam self-weight. Select the lightest W-shape. As part of your answer indicate the following: Problem 3 (20 points) Member selected W X Cb Mu DMa PL PL 12 ft 6 ft...
2. (1.5 points) A 24-ft simple span that supports three (3) service concentrated live load of 20 kips each at quarter points is laterally unbraced except at its ends and the center line. If the maximum permissible center line deflection under service live load equal L/400, select the lightest Wsection of 50 ksi steel, considering moment, shear, and deflection. Neglect beanm weight. Use Cb-1.0.
2. (1.5 points) A 24-ft simple span that supports three (3) service concentrated live load of...
please show your step thoroughly!
Problem # 2 The 24-kip concentrated load shown is a service live load. Determine whether the beam satisfies the AISC Specification if A992 steel is used. Lateral support is provided at the ends only. (Flexure, shear, deflection) 24k Δ4 W14 x 109 15
Problem # 2 The 24-kip concentrated load shown is a service live load. Determine whether the beam satisfies the AISC Specification if A992 steel is used. Lateral support is provided at the...
a simply supported beam shown has a span length of 16 ft. the
beam is laoded with to concentrated service live loads of 40 kips
and 80 kips as shown. if lateral support is provided only at both
ends, select the lightest w section of A992 steel that can carry
these applied loads. neglect the weight of the beam.
***Need this answered ASAP please***
***Please show ALL steps***
steel design - please show what tables the values come from.
thank...
Problem 3: Design of Steel Beam for Bending with Varying Unbraced Lengths Select the lightest A992 steel W-shape for the beam shown below using LRFD. Only consider design (neglect shear a bracing situations: a. Continuous lateral support of the compression flange b. Lateral support at beam ends and at the point of the concentrated load c. Lateral support only at beam ends PD = 10k PL-20k WD-3.33 k/ft w, = 6.67 k/ft 10' 20' 30'
1) Select the lightest section that can be used for the beam
shown below if lateral bracing is provided only at the ends of the
beam. Given loads are service loads (dead load given includes beam
dead weight). Use Fy= 50ksi. The point load is applied at
midspan.
4) Select the lightest section that can be used for the beam shown below if lateral bracing is provided only at the ends of the beam. Given loads are service loads (dead...
A rectangular reinforced concrete beam of span 16 ft supports a concentrated load of 40 kips at mid-point of the beam and a uniformly-distributed load of 4 kips/ft over the entire span. Given: (a) The breadth of the beam is 18 inches. (b) Concrete compressive strength, fc, is 3500 psi. (c) Rebar is Grade 40 steel i) Determine the maximum moment and maximum shear acting on the beam. ii) Determine the minimum effective depth 'd' of the beam section (rounded...
Show all steps
Problem 1: Select a W-shape beam for the following load scenario. Assume there is bracing at the ends and at midspan. Use A992 steel. The deflection limit is given as L/360. (35 points) DL = 0.75 k/ft LL = 1.00 k/ft 15 ft 15 ft a. Using AISC LRFD, compute the factored design load, Mu, acting on the member. (ANS. b. What section would you select if you did not consider the moment gradient? (ANS. c. Account...
