Question

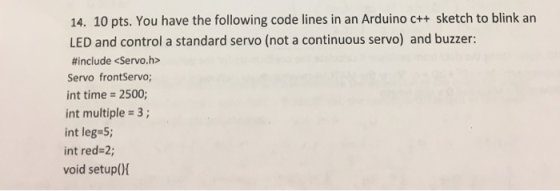

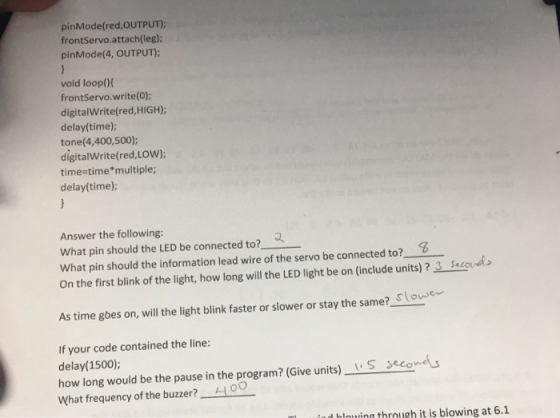

14. 10 pts. You have the following code lines in an Arduino c++ sketch to blink an LED and control a standard servo (not a continuous servo) and buzzer: #include Servo frontServo; int time 2500; int multiple 3; int leg-5 int red 2; void setup()X pinMode(red,OUTPUT) frontServo.attach(leg): pinMode(4, OUTPUT) void looplf frontServo.write(0); digitalWrite(red, HIGH); delay(time); tone(4,400,500); digitalWrite(red,LOW); time-time"multiple; delay(time); Answer the following: What pin should the LED be connected to? what pin should the information lead wire of the servo be connected to?- 0 On the first blink of the light, how long will the LED light be on (include units) ?3 vd As time gbes on, will the light blink faster or slower or stay the same? If your code contained the line: delay(1500); how long would be the pause in the program? (Give units) S eco What frequency of the buzzer?O el u d hlouting throuch it is blowing at 6.1

Answer 1

1)what pin should the LED be connected to ?

2

2)what pin should the information lead wire of the servo be connected to?

8

3)on the first blink of the light,how long will the led light be on?

3 seconds

4)As the time goes on , will the light blink faster or slower or stay same?

slower

5)how long would be the pause in the program?

1.5 seconds

6)what frequency of the buzzer?

400
