Problem 3. Obtain the expression for the half-power frequencies (-3 dB) for second order Sullen-Key band-pass filter with transfer function: co and network function: a。 ώρ Explain the meaning of...
13.60 A second-order band-pass filter is required with a center frequency of fo 54 kHz and a pass...
13.60 A second-order band-pass filter is required with a center frequency of fo 54 kHz and a passband gain of +50 dB. If the filter is implemented using the circuit of Fig. 13.15 with C1-C2, choose appropriate values for Ri and R2. What is the resulting value of for the filter? What is its bandwidth? Ci Figure 13.15 Second-order active bandpass filter of the Sallen-Key type. R2 C2 Ri UIN OUT
13.60 A second-order band-pass filter is required with a...
Explain your process please 1. Design 6th order Butterworth band-pass filter with cut-off frequency is 4KHz...
Explain your process please
1. Design 6th order Butterworth band-pass filter with cut-off frequency is 4KHz and 7KHz and pass- band gain is 20dB Draw the circuit, write the transfer function of the filter, and sketch a frequency spectrum of the filter and show the cutoff frequencies on the spectrum Solution:
C V. Figure 2 A band-pass filter circuit This is the transfer function of a band-pass...
C V. Figure 2 A band-pass filter circuit This is the transfer function of a band-pass filter having R = R2 //R Center frequency, a[ 1/R' R C12 radians Bandwidth B2(R, C) radians Maximum Gain Ag- R/2R Band-Pass Filter Design Design a band-pass filter to obtain f-160 Hz, B-16 Hz and o- 10. Supply voltages of +20 and -20 Volts are available. Laboratory Measurements and Results . By applying sinusoidal voltage at the input and by varying its frequency, obtain...
Create a 4th-order lowpass active Chebyshev filter with a 3-dB ripple in the pass band with...
Create a 4th-order lowpass active Chebyshev filter with a 3-dB ripple in the pass band with a corner frequency of 250 Hz using the Sallen-Key topology. Draw the final circuit and all component values. Create a Bode plot for the response at each stage and the overall response using MATLAB
For the band-pass filter, using the transfer function, determine the theoretical values of the am...
For the band-pass filter, using the transfer function, determine the theoretical values of the amplitude and the phase at the frequencies that were used to take readings during the experiment. Tabulate the theoretical values of both amplitude and phase. Please explain and show how you got amplitude and angle for the frequencies H(s)=-1e7/620*s/(s^2+0.55e4*s+16.129e7) Frequencies:2600,2700,2800,2900,3000,4000,5000,6000,7000,8000,9000,10000,11000
1. By using an analog filter with a Butterworth response of order 3, design a digital IIR low pass filter with 3-db cutoff frequency 2c 0.6TT a) b) c) Evaluate the transfer function of the analog fil...
1. By using an analog filter with a Butterworth response of order 3, design a digital IIR low pass filter with 3-db cutoff frequency 2c 0.6TT a) b) c) Evaluate the transfer function of the analog filter (10marks) Skecth the block diagram of transfer function (5 marks) Plot the magnitude response of the filters. (5marks)
1. By using an analog filter with a Butterworth response of order 3, design a digital IIR low pass filter with 3-db cutoff frequency 2c...
Pass network function (5 points) Find a second order high-pass network function that has a maximally...
Pass network function

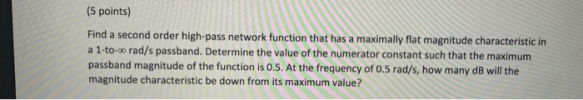

(5 points) Find a second order high-pass network function that has a maximally flat magnitude characteristic in a 1-to-co rad/s passband. Determine the value of the numerator constant such that the maximum passband magnitude of the function is 0.5. At the frequency of 0.5 rad/s, how many dB will the magnitude characteristic be down from its maximum value?
3. In this problem you will identify the system/transfer function H(e) of a Butterworth digital f...
3. In this problem you will identify the system/transfer function H(e) of a Butterworth digital filter using the impulse invariance approach. Design a Butterworth low pass filter that meets the follow- ing specifications. Passband gain is atleast -2 dB and stopband attenuation is atleast -20 dB, i.e. 0.79433 lH(ejw)I l in the frequency range 0 0.2π and lH(eM)I 0.1 in the frequency range 0.4π-lal T. (a) Sketch the specifications and identify the pass band tolerance, stop band tolerance, transition, passband...
For the Multi Feedback Topology Band-pass Filter circuit shown in Figure 1 below, confirm the transfer...
For the Multi Feedback Topology Band-pass Filter circuit shown in Figure 1 below, confirm the transfer function H(s) given below 0 Figure 1: Multiple Feedback Topology Band-pass Filter (MFT BPF) Vo SR で 1 Ri R3 2R TR2C where the filter's parameters are o f: middle (center) frequency in Hz o Am: gain at middle frequency, fm, in V/V o B: bandwidth between half power frequencies in Hz o Q: quality factor. One of the nice features of this circuit...
Design a second-order Butterworth low-pass filter with a DC gain of 0 dB and a -3...
Design a second-order Butterworth low-pass filter with a DC gain of 0 dB and a -3 dB frequency of 5.24 kHz. (include circuit design w/ component values)
13.60 A second-order band-pass filter is required with a center frequency of fo 54 kHz and a passband gain of +50 dB. If the filter is implemented using the circuit of Fig. 13.15 with C1-C2, choose appropriate values for Ri and R2. What is the resulting value of for the filter? What is its bandwidth? Ci Figure 13.15 Second-order active bandpass filter of the Sallen-Key type. R2 C2 Ri UIN OUT
13.60 A second-order band-pass filter is required with a...
Explain your process please
1. Design 6th order Butterworth band-pass filter with cut-off frequency is 4KHz and 7KHz and pass- band gain is 20dB Draw the circuit, write the transfer function of the filter, and sketch a frequency spectrum of the filter and show the cutoff frequencies on the spectrum Solution:
C V. Figure 2 A band-pass filter circuit This is the transfer function of a band-pass filter having R = R2 //R Center frequency, a[ 1/R' R C12 radians Bandwidth B2(R, C) radians Maximum Gain Ag- R/2R Band-Pass Filter Design Design a band-pass filter to obtain f-160 Hz, B-16 Hz and o- 10. Supply voltages of +20 and -20 Volts are available. Laboratory Measurements and Results . By applying sinusoidal voltage at the input and by varying its frequency, obtain...
1. By using an analog filter with a Butterworth response of order 3, design a digital IIR low pass filter with 3-db cutoff frequency 2c 0.6TT a) b) c) Evaluate the transfer function of the analog filter (10marks) Skecth the block diagram of transfer function (5 marks) Plot the magnitude response of the filters. (5marks)
1. By using an analog filter with a Butterworth response of order 3, design a digital IIR low pass filter with 3-db cutoff frequency 2c...
Pass network function
(5 points) Find a second order high-pass network function that has a maximally flat magnitude characteristic in a 1-to-co rad/s passband. Determine the value of the numerator constant such that the maximum passband magnitude of the function is 0.5. At the frequency of 0.5 rad/s, how many dB will the magnitude characteristic be down from its maximum value?
3. In this problem you will identify the system/transfer function H(e) of a Butterworth digital filter using the impulse invariance approach. Design a Butterworth low pass filter that meets the follow- ing specifications. Passband gain is atleast -2 dB and stopband attenuation is atleast -20 dB, i.e. 0.79433 lH(ejw)I l in the frequency range 0 0.2π and lH(eM)I 0.1 in the frequency range 0.4π-lal T. (a) Sketch the specifications and identify the pass band tolerance, stop band tolerance, transition, passband...
For the Multi Feedback Topology Band-pass Filter circuit shown in Figure 1 below, confirm the transfer function H(s) given below 0 Figure 1: Multiple Feedback Topology Band-pass Filter (MFT BPF) Vo SR で 1 Ri R3 2R TR2C where the filter's parameters are o f: middle (center) frequency in Hz o Am: gain at middle frequency, fm, in V/V o B: bandwidth between half power frequencies in Hz o Q: quality factor. One of the nice features of this circuit...
