with details and explanations 3. Consider the logic function Z-((A + B).D). (C.(E+F)) (5 Marks) Realize the above Boolean function using CMOS transistors. a. btain a common Euler path for both nMO...

Question

Question

3. Consider the logic function Z-((A + B).D). (C.(E+F)) (5 Marks) Realize the above Boolean function using CMOS transistors.

with details and explanations

engineering Electrical-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

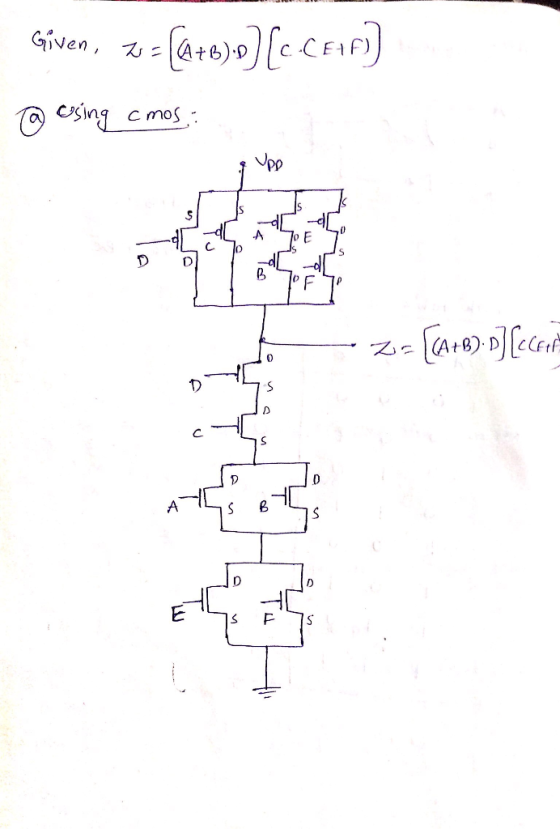

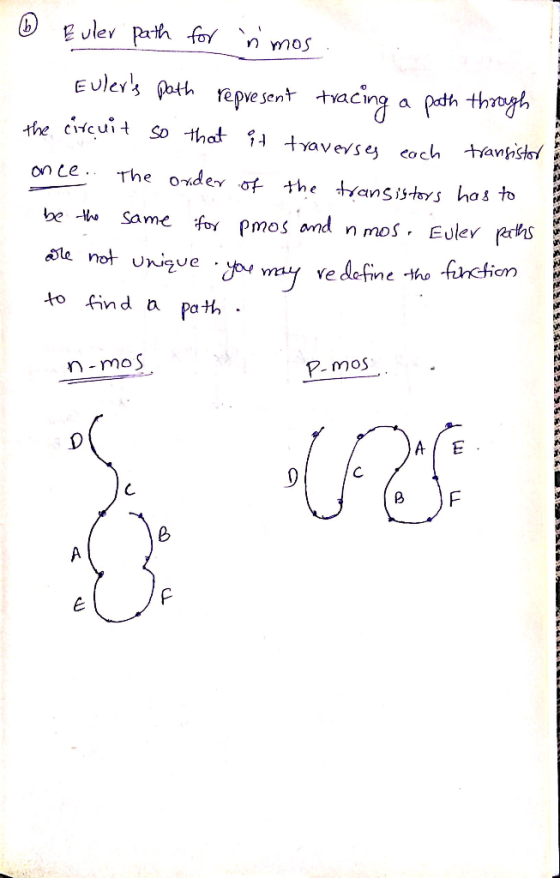

Gven c^ing cmos n mos EU)evĮ ρ.th repve sent +racing a th one The orider of the tyanSij-tays hai to be Same for pmos and *o find a path A/ E ridt S is douon sle p -_-) yellow colouY G)seen co lauv Blve colou/ Connections → ëlačk. SticK diaqyam P mo s Cyellou) gseen) GnNo Celue)

Add a comment

Answer 2

Similar Homework Help Questions

Consider the logic function Z= Realize the above Boolean function using CMOS transistors. &

Consider the logic function Z= Realize the above Boolean function using CMOS transistors. (5 Marks) Obtain a common Euler path for both nMOS and pMOS transistors and hence draw the optimized stick diagram layout.
Consider the logic function Zr((A+B). D. (CKE+F))) 3. Realize the sbove Boolean function using CMos transtors. b. Obtain a common Euler path for both DMOS and pMOS transistors and hence draw the opti...

Consider the logic function Zr((A+B). D. (CKE+F))) 3. Realize the sbove Boolean function using CMos transtors. b. Obtain a common Euler path for both DMOS and pMOS transistors and hence draw the optimized stick diagram layout. Consider the logic function Zr((A+B). D. (CKE+F))) 3. Realize the sbove Boolean function using CMos transtors. b. Obtain a common Euler path for both DMOS and pMOS transistors and hence draw the optimized stick diagram layout.
