Build a ladder program to execute that program:
Homework Answers

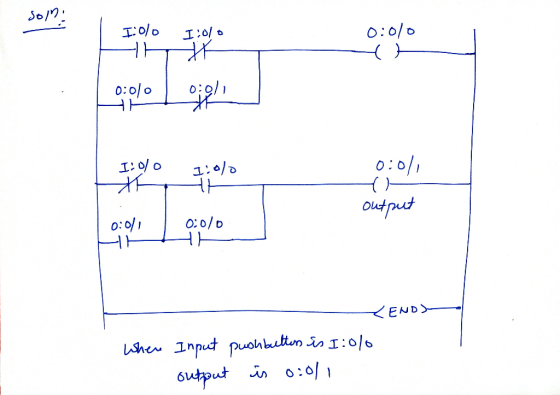

Push button I:0/0 (NO) and I:0/0(NC) is used to toggle the putout using single input push button. Output is O:0/1, which is on when input is pressed and off when input is pressed for second time.
NOTE-please find me in comment box if you find any difficulty.
Add Answer to:
Build a ladder program to execute that program: 1. Build a program that acts as a Toggle switch, that is a NO PB is connected to a PLC when pressed an output is turned on and stays on even if the but...
Build a relay ladder logic for the following: When SSW1 is switched to the closed position...
Build a relay ladder logic for the following: When SSW1 is switched to the closed position and NO PB 1 is pressed, Indicator lights 1 & 2 (Pilot Light 1 & 2) will turn on. Indicator Light 1 will stay illuminated (regardless of the position of SSW1 or NO PB 1). Indicator Light 2 can be momentarily turned off when NO PB 1 is depressed. Indicator Light 2 should return to its illuminated state once NO PB 1 is released....
i need assembly program with screenshot of output please 1. Write an assembly program that interfaces...
i need assembly program with screenshot of output please
1. Write an assembly program that interfaces switches, SW1 and SW2, and LEDs, LED1 and LED2, as follows (You should use interrupts for both switches) [50 pts] Initially, both the LEDs should be turned off. When SW2 is pressed for the first time, LED2 should be turned on. The next time SW2 is pressed, LED2 is turned off. The sequence continues hence each press changes the state of LED2. SW1 controls...
