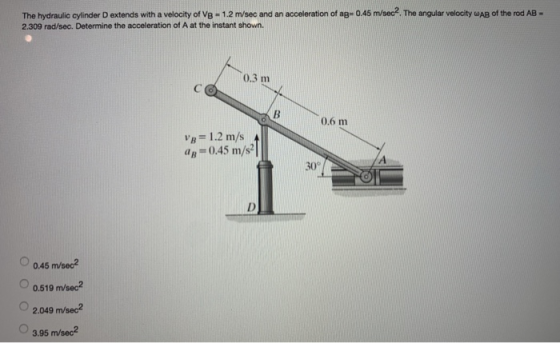

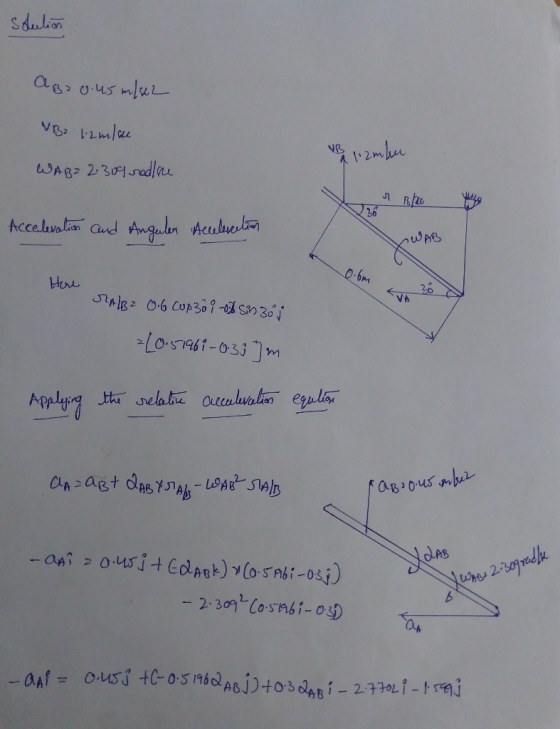

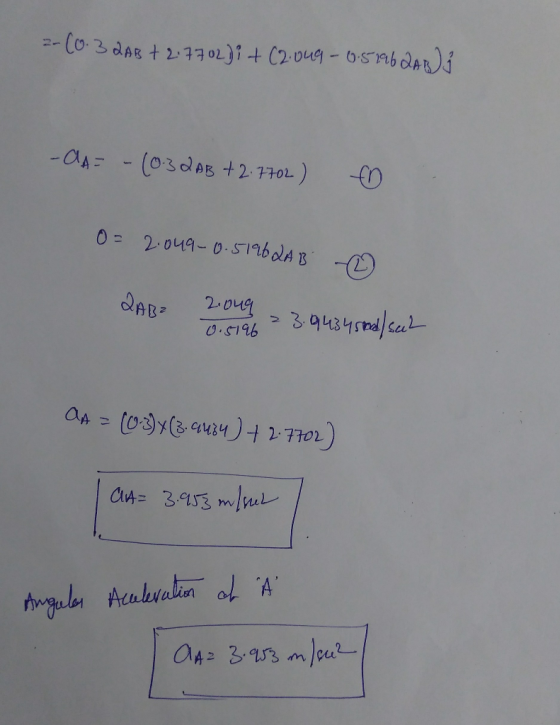

The hydraulic cylinder D extends with a velocity of VB-1.2 m/sec and an acceleration of ag-0.45 m/sec2. The angular velocity wAs of the rod AB- 2.309 rad/sec. Determine the acceleration of A at t...
At the instant shown, the hydraulic cylinder Dextends with a velocity of VB 5 fts and...
At the instant shown, the hydraulic cylinder Dextends with a velocity of VB 5 fts and an acceleration of ag -2.5 ft/s?. Determine: (a) The angular velocity of rod AB, WAB rad/s (use the appropriate sign for the direction) (b) The velocity and acceleration of slider A, VA fts and A fus? (use the appropriate sign for the direction). (c) The angular acceleration of rod AB, CAB rad/s? (use the appropriate sign for the direction) (d) The components of the...
The hydraulic cylinder D extends with a velocity of vB = 6 ft/s and an acceleration...
The hydraulic cylinder D extends with a velocity of vB = 6 ft/s
and an acceleration of aB = 1.7 ft/s2.
Determine the acceleration of A at the instant shown. Assume the
direction to the right as positive.
Express your answer with the appropriate units. 1: MÅR O ? 13.30 Submit Previous Answers Request Answer X Incorrect; Try Again; 29 attempts remaining Figure < 1 of 1 Provide Feedback 2 ft Ув, а в 309
The hydraulic cylinder D extends with a velocity of V_b = 4ft/s and an acceleration of...
The hydraulic cylinder D extends with a velocity of V_b = 4ft/s and an acceleration of a_B = 1.5 ft/s^2. Determine the angular velocity of the link AB. Determine the acceleration of A at the instant shown.
QUESTION 11 At the instant shown, the 30-kg disk has a counterclockwise angular velocity of 10 rad/sec. Determine the angular acceleration of the disk at this instant (Hint: The polar mass moment...
QUESTION 11 At the instant shown, the 30-kg disk has a counterclockwise angular velocity of 10 rad/sec. Determine the angular acceleration of the disk at this instant (Hint: The polar mass moment of inertia 4.05 Kg.m2. O 10 rad/s 0.3 m ad/sec2 5.19 r 15.57 rad/sec2 30 rad/sec? None of the choices is correct
QUESTION 11 At the instant shown, the 30-kg disk has a counterclockwise angular velocity of 10 rad/sec. Determine the angular acceleration of the disk at this...
At the instant shown, rod AB has zero angular acceleration and an angular velocity of 8...
At the instant shown, rod AB has zero angular acceleration and an angular velocity of 8 rad/s clockwise. Knowing that I 0.3 m, determine the acceleration of the midpoint C of member BD. E C A D Fig. P15.129 and P15.130
At the instant shown, rod AB has zero angular acceleration and an angular velocity of 8 rad/s clockwise. Knowing that I 0.3 m, determine the acceleration of the midpoint C of member BD. E C A D Fig. P15.129...
At the instant shown collar B moves with a velocity of vB=4 [m/s] and acceleration aB=2.4...
At the instant shown collar B moves with a velocity of vB=4
[m/s] and acceleration aB=2.4 [m/s2 ] to the right. Angle =50o ,
and length of the rod is L=650 [mm]. At the instant when =30o ,
determine (a) magnitude of angular acceleration of rod AB, AB
[rad/s2 ], and (b) magnitude of acceleration of collar A, aA [m/s2
].
What is magnitude of angular acceleration of rod AB, AB [rad/s2
]?
What is magnitude of acceleration of collar...
5. (Section 16.8) At the instant shown, rod AB rotates with angular velocity @ = 1.6...
5. (Section 16.8) At the instant shown, rod AB rotates with angular velocity @ = 1.6 rad/s and angular acceleration a = 2 rad/s², both in the counterclockwise direction. The collar at B is pin-connected to link BC and slides over rod AB. ФА 0 HA a 0.3 m 0.2 m a. Determine the velocity of the pin at B and the angular velocity of link BC at this instant b. Determine the acceleration of the pin at B and...
Name: The flywheel rotates with angular velocity ? = 3 rad/s and angular acceleration ? :...
Name: The flywheel rotates with angular velocity ? = 3 rad/s and angular acceleration ? : 5 rad/s. Determine (a) the motion of the flywheel, rod AB, and rod BC. Then determine the angular acceleration of (b) link AB and (c) link BC at the instant shown. Use: a = 0.4 m, b = 0.5 m, r = 0.3 m, d= 4, and e-3. (Hint: Use Translating Frames analysis.) 4. Motion: 1. Flywheel-> 2. Rod AB-> 3. Rod BC-
5. At the instant shown, rod AB has a constant angular velocity of 5 rad/s counterclockwise. Dete...
5. At the instant shown, rod AB has a constant angular velocity of 5 rad/s counterclockwise. Determine (a) the angular acceleration of rod BD and (b) the angular acceleration of rod DIE 5 rad/s 60° 180 mm 180 mm
5. At the instant shown, rod AB has a constant angular velocity of 5 rad/s counterclockwise. Determine (a) the angular acceleration of rod BD and (b) the angular acceleration of rod DIE 5 rad/s 60° 180 mm 180 mm
Disk D has angular velocity ω': 4 rad/s and angular acceleration α': 1.2 rad/s' and radius...
Disk D has angular velocity ω': 4 rad/s and angular acceleration α': 1.2 rad/s' and radius r = 0.3 m. The fixed curved surface C has radius R = 0.8 m. If no slipping occurs between disk D and the fixed surface C, determine the angular velocity and angular acceleration, ω and α, of arm AB. 2. ω,α ω.a
At the instant shown, the hydraulic cylinder Dextends with a velocity of VB 5 fts and an acceleration of ag -2.5 ft/s?. Determine: (a) The angular velocity of rod AB, WAB rad/s (use the appropriate sign for the direction) (b) The velocity and acceleration of slider A, VA fts and A fus? (use the appropriate sign for the direction). (c) The angular acceleration of rod AB, CAB rad/s? (use the appropriate sign for the direction) (d) The components of the...
The hydraulic cylinder D extends with a velocity of vB = 6 ft/s
and an acceleration of aB = 1.7 ft/s2.
Determine the acceleration of A at the instant shown. Assume the
direction to the right as positive.
Express your answer with the appropriate units. 1: MÅR O ? 13.30 Submit Previous Answers Request Answer X Incorrect; Try Again; 29 attempts remaining Figure < 1 of 1 Provide Feedback 2 ft Ув, а в 309
The hydraulic cylinder D extends with a velocity of V_b = 4ft/s and an acceleration of a_B = 1.5 ft/s^2. Determine the angular velocity of the link AB. Determine the acceleration of A at the instant shown.
QUESTION 11 At the instant shown, the 30-kg disk has a counterclockwise angular velocity of 10 rad/sec. Determine the angular acceleration of the disk at this instant (Hint: The polar mass moment of inertia 4.05 Kg.m2. O 10 rad/s 0.3 m ad/sec2 5.19 r 15.57 rad/sec2 30 rad/sec? None of the choices is correct
QUESTION 11 At the instant shown, the 30-kg disk has a counterclockwise angular velocity of 10 rad/sec. Determine the angular acceleration of the disk at this...
At the instant shown, rod AB has zero angular acceleration and an angular velocity of 8 rad/s clockwise. Knowing that I 0.3 m, determine the acceleration of the midpoint C of member BD. E C A D Fig. P15.129 and P15.130
At the instant shown, rod AB has zero angular acceleration and an angular velocity of 8 rad/s clockwise. Knowing that I 0.3 m, determine the acceleration of the midpoint C of member BD. E C A D Fig. P15.129...
At the instant shown collar B moves with a velocity of vB=4
[m/s] and acceleration aB=2.4 [m/s2 ] to the right. Angle =50o ,
and length of the rod is L=650 [mm]. At the instant when =30o ,
determine (a) magnitude of angular acceleration of rod AB, AB
[rad/s2 ], and (b) magnitude of acceleration of collar A, aA [m/s2
].
What is magnitude of angular acceleration of rod AB, AB [rad/s2
]?
What is magnitude of acceleration of collar...
5. (Section 16.8) At the instant shown, rod AB rotates with angular velocity @ = 1.6 rad/s and angular acceleration a = 2 rad/s², both in the counterclockwise direction. The collar at B is pin-connected to link BC and slides over rod AB. ФА 0 HA a 0.3 m 0.2 m a. Determine the velocity of the pin at B and the angular velocity of link BC at this instant b. Determine the acceleration of the pin at B and...
Name: The flywheel rotates with angular velocity ? = 3 rad/s and angular acceleration ? : 5 rad/s. Determine (a) the motion of the flywheel, rod AB, and rod BC. Then determine the angular acceleration of (b) link AB and (c) link BC at the instant shown. Use: a = 0.4 m, b = 0.5 m, r = 0.3 m, d= 4, and e-3. (Hint: Use Translating Frames analysis.) 4. Motion: 1. Flywheel-> 2. Rod AB-> 3. Rod BC-
5. At the instant shown, rod AB has a constant angular velocity of 5 rad/s counterclockwise. Determine (a) the angular acceleration of rod BD and (b) the angular acceleration of rod DIE 5 rad/s 60° 180 mm 180 mm
5. At the instant shown, rod AB has a constant angular velocity of 5 rad/s counterclockwise. Determine (a) the angular acceleration of rod BD and (b) the angular acceleration of rod DIE 5 rad/s 60° 180 mm 180 mm
Disk D has angular velocity ω': 4 rad/s and angular acceleration α': 1.2 rad/s' and radius r = 0.3 m. The fixed curved surface C has radius R = 0.8 m. If no slipping occurs between disk D and the fixed surface C, determine the angular velocity and angular acceleration, ω and α, of arm AB. 2. ω,α ω.a
