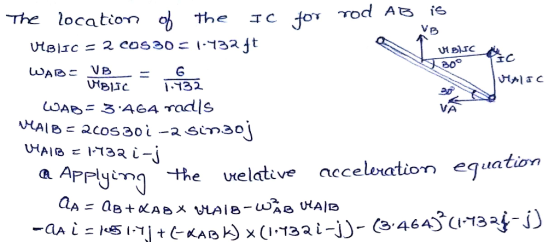

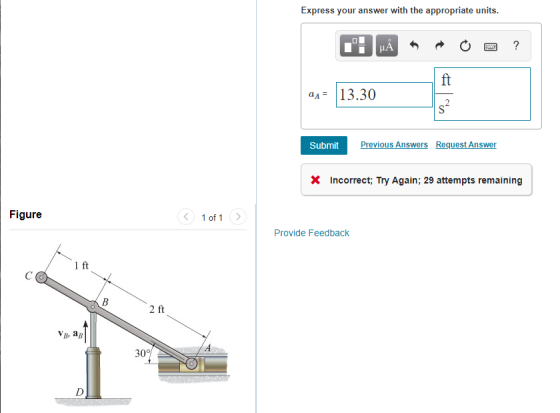

The hydraulic cylinder D extends with a velocity of vB = 6 ft/s and an acceleration of aB = 1.7 ft/s2.

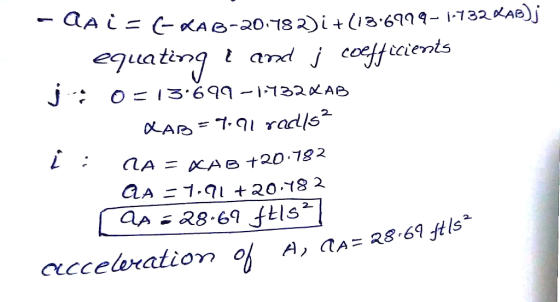

Determine the acceleration of A at the instant shown. Assume the direction to the right as positive.
Homework Answers
Add Answer to:
The hydraulic cylinder D extends with a velocity of vB = 6 ft/s
and an acceleration...
The hydraulic cylinder D extends with a velocity of V_b = 4ft/s and an acceleration of...
The hydraulic cylinder D extends with a velocity of V_b = 4ft/s and an acceleration of a_B = 1.5 ft/s^2. Determine the angular velocity of the link AB. Determine the acceleration of A at the instant shown.
4. The hydraulic cylinder D extends with a velocity of vAft/s and an acceleration of -1.5ft/s2. Determine the velocity and the accelerat ap on of C at the instant shown 1 ft 2 ft 8-4 ft/s ав 1.5ft/s...
4. The hydraulic cylinder D extends with a velocity of vAft/s and an acceleration of -1.5ft/s2. Determine the velocity and the accelerat ap on of C at the instant shown 1 ft 2 ft 8-4 ft/s ав 1.5ft/s
4. The hydraulic cylinder D extends with a velocity of vAft/s and an acceleration of -1.5ft/s2. Determine the velocity and the accelerat ap on of C at the instant shown 1 ft 2 ft 8-4 ft/s ав 1.5ft/s
The hydraulic cylinder D extends with a velocity of VB-1.2 m/sec and an acceleration of ag-0.45 m/sec2. The angular velocity wAs of the rod AB- 2.309 rad/sec. Determine the acceleration of A at t...
The hydraulic cylinder D extends with a velocity of VB-1.2 m/sec and an acceleration of ag-0.45 m/sec2. The angular velocity wAs of the rod AB- 2.309 rad/sec. Determine the acceleration of A at the instant shown. 0.3 m 0.6 m VB 1.2 m/s a,-0.45 m/s? 30° O 0.45 m/sec? 0.519 m/sec2 2.049 m/sec? O 3.95 m/sec2
The hydraulic cylinder D extends with a velocity of VB-1.2 m/sec and an acceleration of ag-0.45 m/sec2. The angular velocity wAs of the rod...
2) The hydraulic cylinder extends and causes point B to have the velocity and acceleration shown....
2) The hydraulic cylinder extends and causes point B to have the velocity and acceleration shown. Set up the equations needed to determine the acceleration of point A at the instant shown. Complete all cross products and separate the equations into components. You do not need to solve the equations for the unknowns. CO B us = 4 ft/s ab = 1.5 ft/s
At the instant shown, the hydraulic cylinder Dextends with a velocity of VB 5 fts and...
At the instant shown, the hydraulic cylinder Dextends with a velocity of VB 5 fts and an acceleration of ag -2.5 ft/s?. Determine: (a) The angular velocity of rod AB, WAB rad/s (use the appropriate sign for the direction) (b) The velocity and acceleration of slider A, VA fts and A fus? (use the appropriate sign for the direction). (c) The angular acceleration of rod AB, CAB rad/s? (use the appropriate sign for the direction) (d) The components of the...
At the instant shown, cable AB has a velocity of 3 m/s and acceleration of 1.5...
At the instant shown, cable AB has a velocity of 3 m/s and acceleration of 1.5 m/s, while the gear rack C has a velocity of 1.4 m/s and acceleration of 0.70 m/s2 . (Figure 1) Part A . Determine the angular acceleration of the gear at this instant Express your answer to three significant figures and inclu Figure < 1 of 1 T: MÅ * 0 a ? rad 3.2 0.3 m 0.2 m Submit Previous Answers Request Answer...
Problem 16.104 At a given instant the bottom A of the ladder has an acceleration a...
Problem 16.104 At a given instant the bottom A of the ladder has an acceleration a A = 4.2 ft/s2 and velocity VA = 6.2 ft/s, both acting to the left. (Figure 1) Part A Determine the acceleration of the top of the ladder, B. Express your answer to three significant figures and include the appropriate units. O": MÅR O 2 ? ab = Value Units Submit Request Answer Part B Figure < 1 of 1 > Determine the ladder's...
Item 7 Find the magnitude of the passenger's acceleration at this instant. Constants 0.753 m/s The...
Item 7 Find the magnitude of the passenger's acceleration at this instant. Constants 0.753 m/s The Ferris wheel in the figure (Figure 1), which rotates counterclockwise, is just starting up. At a given instant, a passenger on the rim of the wheel and passing through the lowest point of his circular motion is moving at 3.12 m/s and is gaining speed at a rate of 0.288 m/s2 Previous Answers Correct Figure 1 of 1 Part B Find the direction of...
At a given instant the roller A on the bar has the velocity v = 3...
At a given instant the roller A on the bar has the velocity v =
3 m/s and acceleration a = 6.5 m/s2
Determine the acceleration of the roller B at this instant.
Determine the bar's angular acceleration at this instant
measured counterclockwise.
and Acceleration = 6.5 mis - Part A At a given instant the roller 4 on the bar has the velocity n = 3 m (Figure 1) Determine the velocity of the roler at this Inalart. Express...
PartA The pipe system shown in (Figure 1) consists of a 3-in.-diameter, 100-ft-long galvanized iron pipe,...
PartA The pipe system shown in (Figure 1) consists of a 3-in.-diameter, 100-ft-long galvanized iron pipe, a fully opened gate valve, four elbows, a flush entrance, and a pump with the pump head curve shown in (Figure 2). The friction factor is 0.022 Estimate the flow Express your answer using two significant figures gal/min Submit Previous Answers Request Answer X Incorrect; Try Again; 4 attempts remaining ▼ Part B Estimate the corresponding pump head generated by the pump Express your...
The hydraulic cylinder D extends with a velocity of V_b = 4ft/s and an acceleration of a_B = 1.5 ft/s^2. Determine the angular velocity of the link AB. Determine the acceleration of A at the instant shown.
4. The hydraulic cylinder D extends with a velocity of vAft/s and an acceleration of -1.5ft/s2. Determine the velocity and the accelerat ap on of C at the instant shown 1 ft 2 ft 8-4 ft/s ав 1.5ft/s
4. The hydraulic cylinder D extends with a velocity of vAft/s and an acceleration of -1.5ft/s2. Determine the velocity and the accelerat ap on of C at the instant shown 1 ft 2 ft 8-4 ft/s ав 1.5ft/s
The hydraulic cylinder D extends with a velocity of VB-1.2 m/sec and an acceleration of ag-0.45 m/sec2. The angular velocity wAs of the rod AB- 2.309 rad/sec. Determine the acceleration of A at the instant shown. 0.3 m 0.6 m VB 1.2 m/s a,-0.45 m/s? 30° O 0.45 m/sec? 0.519 m/sec2 2.049 m/sec? O 3.95 m/sec2
The hydraulic cylinder D extends with a velocity of VB-1.2 m/sec and an acceleration of ag-0.45 m/sec2. The angular velocity wAs of the rod...
2) The hydraulic cylinder extends and causes point B to have the velocity and acceleration shown. Set up the equations needed to determine the acceleration of point A at the instant shown. Complete all cross products and separate the equations into components. You do not need to solve the equations for the unknowns. CO B us = 4 ft/s ab = 1.5 ft/s
At the instant shown, the hydraulic cylinder Dextends with a velocity of VB 5 fts and an acceleration of ag -2.5 ft/s?. Determine: (a) The angular velocity of rod AB, WAB rad/s (use the appropriate sign for the direction) (b) The velocity and acceleration of slider A, VA fts and A fus? (use the appropriate sign for the direction). (c) The angular acceleration of rod AB, CAB rad/s? (use the appropriate sign for the direction) (d) The components of the...
At the instant shown, cable AB has a velocity of 3 m/s and acceleration of 1.5 m/s, while the gear rack C has a velocity of 1.4 m/s and acceleration of 0.70 m/s2 . (Figure 1) Part A . Determine the angular acceleration of the gear at this instant Express your answer to three significant figures and inclu Figure < 1 of 1 T: MÅ * 0 a ? rad 3.2 0.3 m 0.2 m Submit Previous Answers Request Answer...
Problem 16.104 At a given instant the bottom A of the ladder has an acceleration a A = 4.2 ft/s2 and velocity VA = 6.2 ft/s, both acting to the left. (Figure 1) Part A Determine the acceleration of the top of the ladder, B. Express your answer to three significant figures and include the appropriate units. O": MÅR O 2 ? ab = Value Units Submit Request Answer Part B Figure < 1 of 1 > Determine the ladder's...
Item 7 Find the magnitude of the passenger's acceleration at this instant. Constants 0.753 m/s The Ferris wheel in the figure (Figure 1), which rotates counterclockwise, is just starting up. At a given instant, a passenger on the rim of the wheel and passing through the lowest point of his circular motion is moving at 3.12 m/s and is gaining speed at a rate of 0.288 m/s2 Previous Answers Correct Figure 1 of 1 Part B Find the direction of...
At a given instant the roller A on the bar has the velocity v =
3 m/s and acceleration a = 6.5 m/s2
Determine the acceleration of the roller B at this instant.
Determine the bar's angular acceleration at this instant
measured counterclockwise.
and Acceleration = 6.5 mis - Part A At a given instant the roller 4 on the bar has the velocity n = 3 m (Figure 1) Determine the velocity of the roler at this Inalart. Express...
PartA The pipe system shown in (Figure 1) consists of a 3-in.-diameter, 100-ft-long galvanized iron pipe, a fully opened gate valve, four elbows, a flush entrance, and a pump with the pump head curve shown in (Figure 2). The friction factor is 0.022 Estimate the flow Express your answer using two significant figures gal/min Submit Previous Answers Request Answer X Incorrect; Try Again; 4 attempts remaining ▼ Part B Estimate the corresponding pump head generated by the pump Express your...
