Add Answer to:

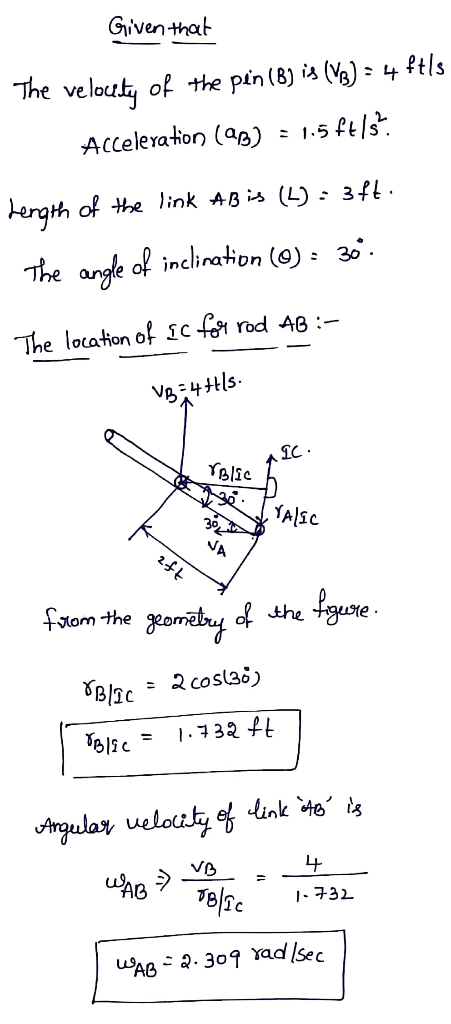

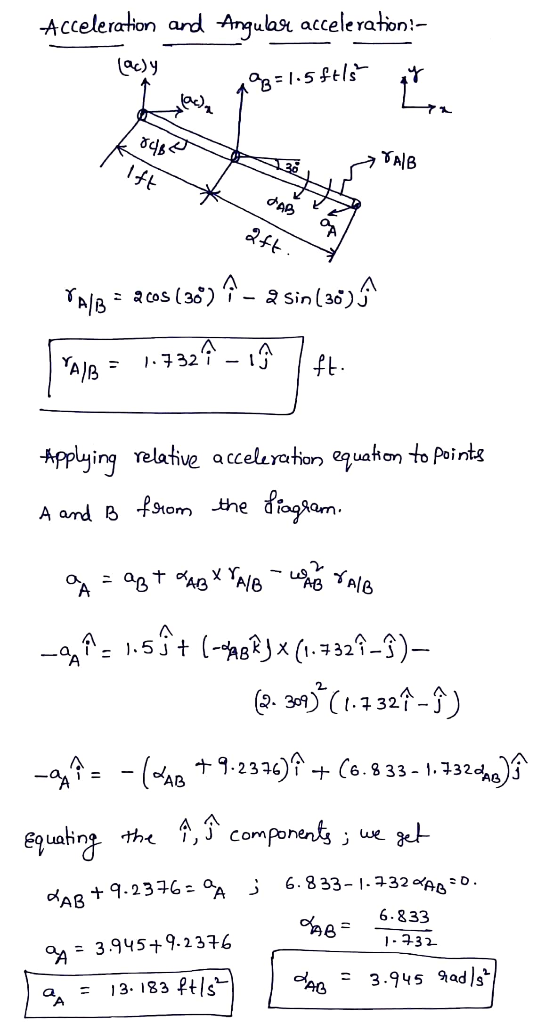

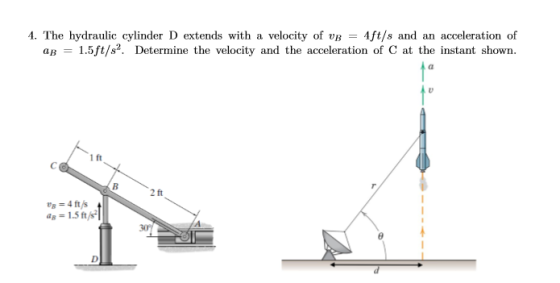

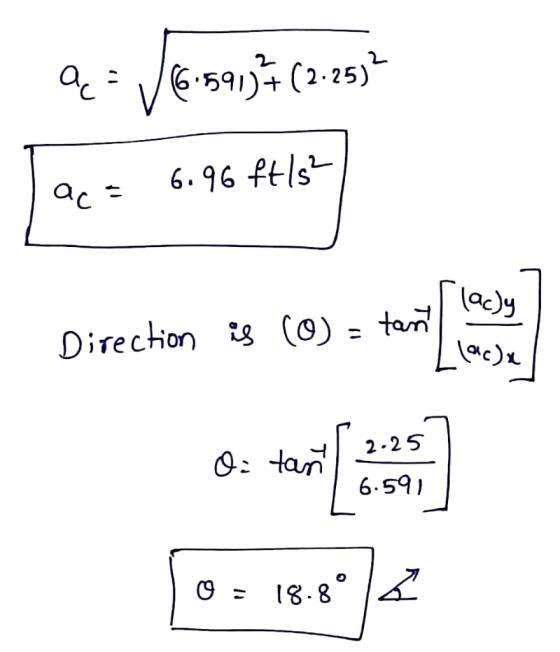

4. The hydraulic cylinder D extends with a velocity of vAft/s and an acceleration of -1.5ft/s2. Determine the velocity and the accelerat ap on of C at the instant shown 1 ft 2 ft 8-4 ft/s ав 1.5ft/s...
The hydraulic cylinder D extends with a velocity of vB = 6 ft/s and an acceleration...
The hydraulic cylinder D extends with a velocity of vB = 6 ft/s
and an acceleration of aB = 1.7 ft/s2.
Determine the acceleration of A at the instant shown. Assume the
direction to the right as positive.
Express your answer with the appropriate units. 1: MÅR O ? 13.30 Submit Previous Answers Request Answer X Incorrect; Try Again; 29 attempts remaining Figure < 1 of 1 Provide Feedback 2 ft Ув, а в 309
The hydraulic cylinder D extends with a velocity of V_b = 4ft/s and an acceleration of...
The hydraulic cylinder D extends with a velocity of V_b = 4ft/s and an acceleration of a_B = 1.5 ft/s^2. Determine the angular velocity of the link AB. Determine the acceleration of A at the instant shown.
2) The hydraulic cylinder extends and causes point B to have the velocity and acceleration shown....
2) The hydraulic cylinder extends and causes point B to have the velocity and acceleration shown. Set up the equations needed to determine the acceleration of point A at the instant shown. Complete all cross products and separate the equations into components. You do not need to solve the equations for the unknowns. CO B us = 4 ft/s ab = 1.5 ft/s
The hydraulic cylinder D extends with a velocity of VB-1.2 m/sec and an acceleration of ag-0.45 m/sec2. The angular velocity wAs of the rod AB- 2.309 rad/sec. Determine the acceleration of A at t...
The hydraulic cylinder D extends with a velocity of VB-1.2 m/sec and an acceleration of ag-0.45 m/sec2. The angular velocity wAs of the rod AB- 2.309 rad/sec. Determine the acceleration of A at the instant shown. 0.3 m 0.6 m VB 1.2 m/s a,-0.45 m/s? 30° O 0.45 m/sec? 0.519 m/sec2 2.049 m/sec? O 3.95 m/sec2
The hydraulic cylinder D extends with a velocity of VB-1.2 m/sec and an acceleration of ag-0.45 m/sec2. The angular velocity wAs of the rod...
At the instant shown, the hydraulic cylinder Dextends with a velocity of VB 5 fts and...
At the instant shown, the hydraulic cylinder Dextends with a velocity of VB 5 fts and an acceleration of ag -2.5 ft/s?. Determine: (a) The angular velocity of rod AB, WAB rad/s (use the appropriate sign for the direction) (b) The velocity and acceleration of slider A, VA fts and A fus? (use the appropriate sign for the direction). (c) The angular acceleration of rod AB, CAB rad/s? (use the appropriate sign for the direction) (d) The components of the...
Problem (1) Collar D slides on a fixed horizontal rod with a constant velocity of 4 ft/s to the right. Knowing that at the instant shown x- 8 in. determine 10 in. a) the angular acceleration of bar B...
Problem (1) Collar D slides on a fixed horizontal rod with a constant velocity of 4 ft/s to the right. Knowing that at the instant shown x- 8 in. determine 10 in. a) the angular acceleration of bar BD b) the angular acceleration of bar AB 16 in 10 in
Problem (1) Collar D slides on a fixed horizontal rod with a constant velocity of 4 ft/s to the right. Knowing that at the instant shown x- 8 in. determine...
Determine the angular velocity of the gear at the instant shown. Set v = 2 ft/s...
Determine the angular velocity of the gear at the instant shown. Set v = 2 ft/s , vC = 4 ft/s . Assume the counterclockwise rotation as positive. Determine the velocity of its center O at the instant shown. Assume the direction to the right as positive. 0.75 ft distance for center of gear to vc and 1.50 ft to center to bottom.
1 At the instant shown, determine velocity and a-2 rad/s acceleration vectors of point A. Use...
1 At the instant shown, determine velocity and a-2 rad/s acceleration vectors of point A. Use the coordinate system given. a= 5 rad/s2 0.7 m L-x 18° 120° 0.3 m
The reel of rope has the angular velocity ω = 3 rad/s and angular acceleration α = 8 rad/s2 (Figure 1)
The reel of rope has the angular velocity ω = 3 rad/s and angular acceleration α = 8 rad/s2 (Figure 1) Part ADetermine the magnitude of the velocity of point A at the instant shownPart B Determine the direction of the velocity of point A at the instant shown. Part C Determine the magnitude of the acceleration of point A at the instant shown. Part D Determine the direction of the acceleration of point A at the instant shown.
determine the angular velocity of the gear at the instant shown in v= 1 ft/s vc...
determine the angular velocity of the gear at the instant
shown in v= 1 ft/s vc = 6
Figure 1 of 1 G 1.50 ft th Determine the angular velocity of the gear at the instant shown in (Figure 1). Set v = 1 ft/s, uc = 6 ft/s. Assume the counterclockwise rotation as positive. Express your answer in radians per second to three significant figures. View Available Hint(s) ΗΨΗ ΑΣΦ vec 5 και ο Submit
The hydraulic cylinder D extends with a velocity of vB = 6 ft/s
and an acceleration of aB = 1.7 ft/s2.
Determine the acceleration of A at the instant shown. Assume the
direction to the right as positive.
Express your answer with the appropriate units. 1: MÅR O ? 13.30 Submit Previous Answers Request Answer X Incorrect; Try Again; 29 attempts remaining Figure < 1 of 1 Provide Feedback 2 ft Ув, а в 309
The hydraulic cylinder D extends with a velocity of V_b = 4ft/s and an acceleration of a_B = 1.5 ft/s^2. Determine the angular velocity of the link AB. Determine the acceleration of A at the instant shown.
2) The hydraulic cylinder extends and causes point B to have the velocity and acceleration shown. Set up the equations needed to determine the acceleration of point A at the instant shown. Complete all cross products and separate the equations into components. You do not need to solve the equations for the unknowns. CO B us = 4 ft/s ab = 1.5 ft/s
The hydraulic cylinder D extends with a velocity of VB-1.2 m/sec and an acceleration of ag-0.45 m/sec2. The angular velocity wAs of the rod AB- 2.309 rad/sec. Determine the acceleration of A at the instant shown. 0.3 m 0.6 m VB 1.2 m/s a,-0.45 m/s? 30° O 0.45 m/sec? 0.519 m/sec2 2.049 m/sec? O 3.95 m/sec2
The hydraulic cylinder D extends with a velocity of VB-1.2 m/sec and an acceleration of ag-0.45 m/sec2. The angular velocity wAs of the rod...
At the instant shown, the hydraulic cylinder Dextends with a velocity of VB 5 fts and an acceleration of ag -2.5 ft/s?. Determine: (a) The angular velocity of rod AB, WAB rad/s (use the appropriate sign for the direction) (b) The velocity and acceleration of slider A, VA fts and A fus? (use the appropriate sign for the direction). (c) The angular acceleration of rod AB, CAB rad/s? (use the appropriate sign for the direction) (d) The components of the...
Problem (1) Collar D slides on a fixed horizontal rod with a constant velocity of 4 ft/s to the right. Knowing that at the instant shown x- 8 in. determine 10 in. a) the angular acceleration of bar BD b) the angular acceleration of bar AB 16 in 10 in
Problem (1) Collar D slides on a fixed horizontal rod with a constant velocity of 4 ft/s to the right. Knowing that at the instant shown x- 8 in. determine...
1 At the instant shown, determine velocity and a-2 rad/s acceleration vectors of point A. Use the coordinate system given. a= 5 rad/s2 0.7 m L-x 18° 120° 0.3 m
determine the angular velocity of the gear at the instant
shown in v= 1 ft/s vc = 6
Figure 1 of 1 G 1.50 ft th Determine the angular velocity of the gear at the instant shown in (Figure 1). Set v = 1 ft/s, uc = 6 ft/s. Assume the counterclockwise rotation as positive. Express your answer in radians per second to three significant figures. View Available Hint(s) ΗΨΗ ΑΣΦ vec 5 και ο Submit
